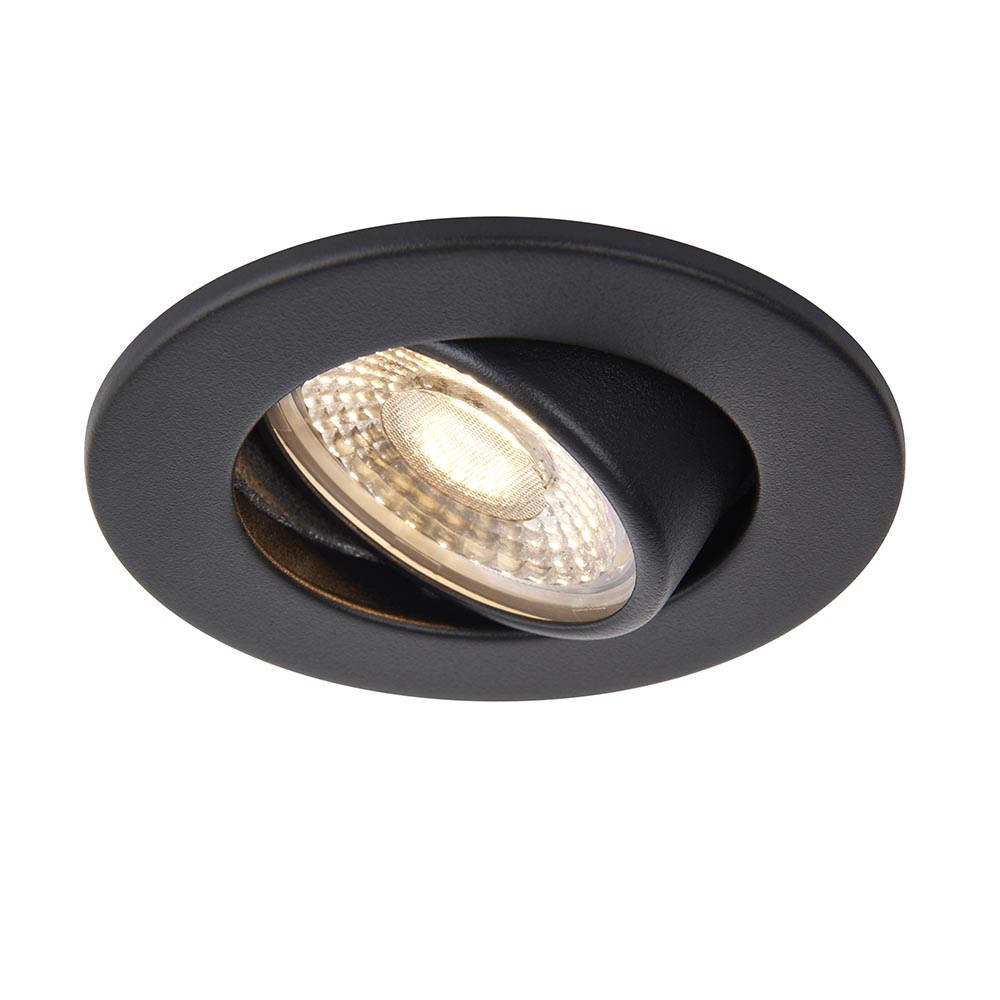

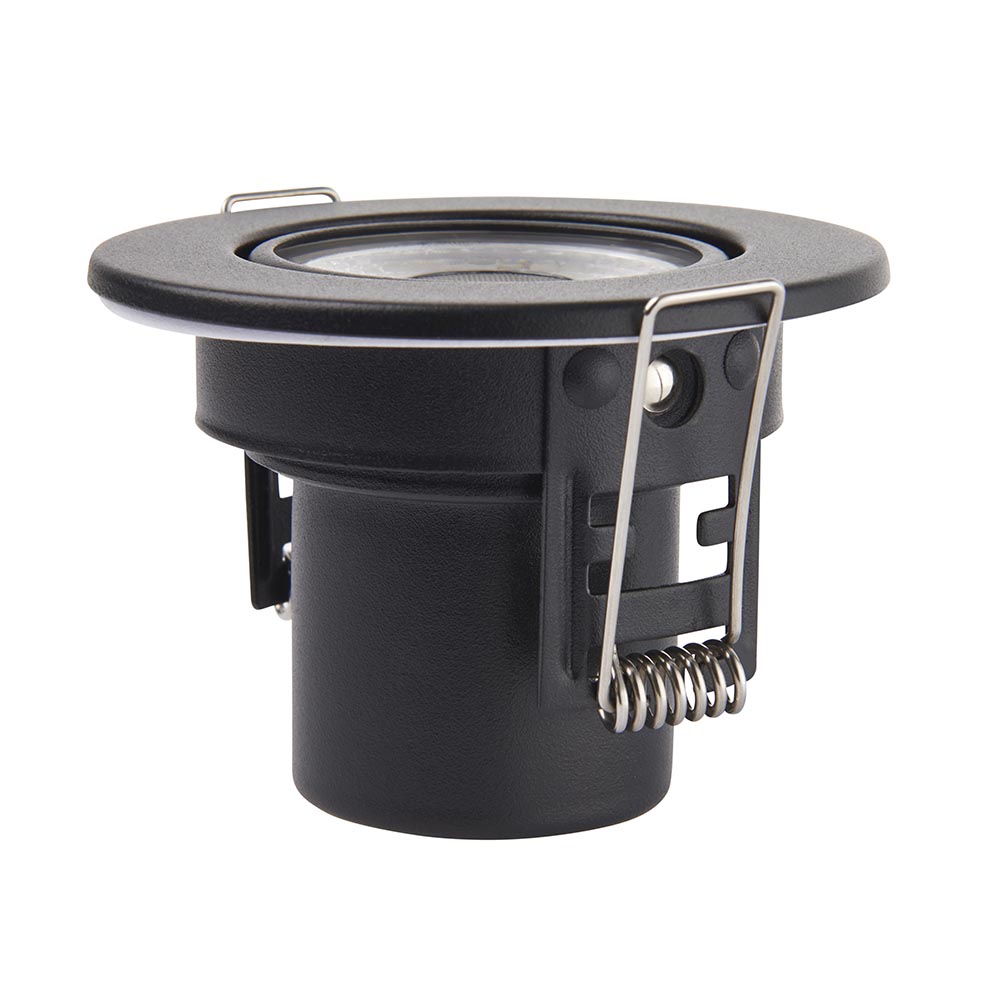

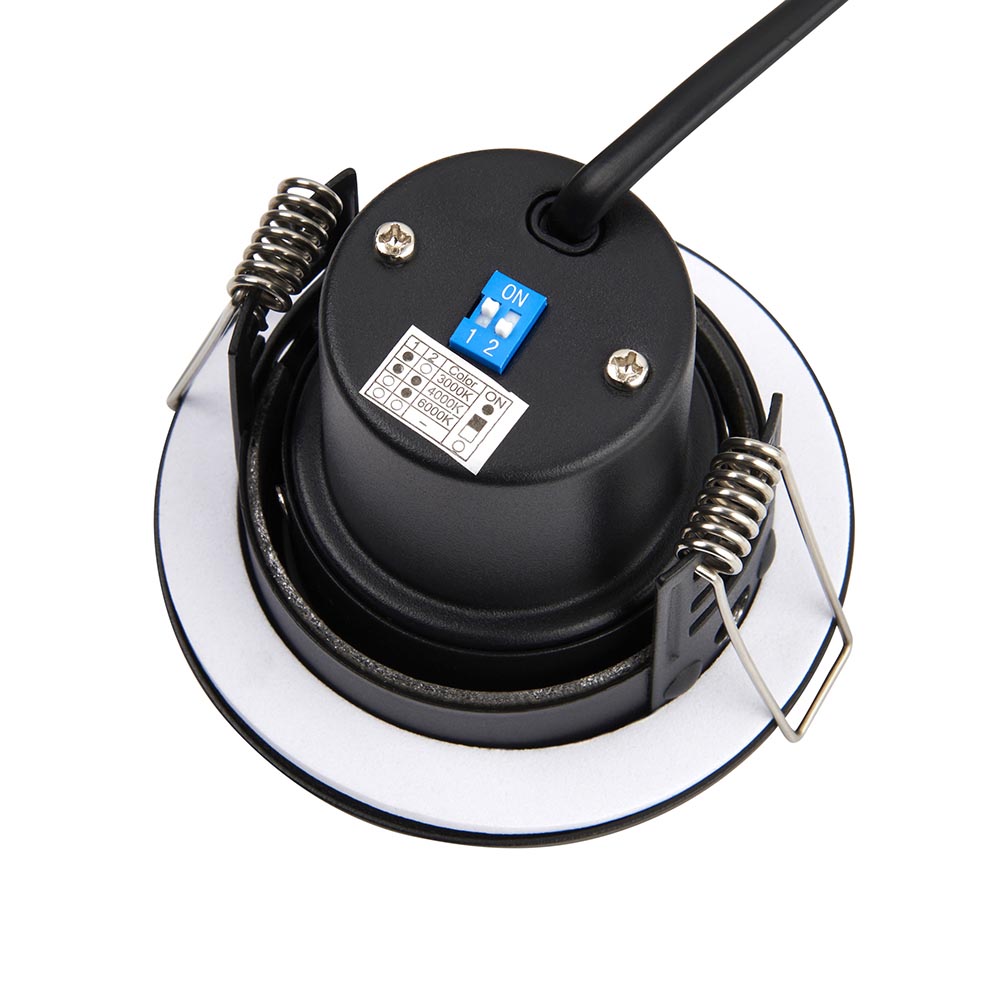

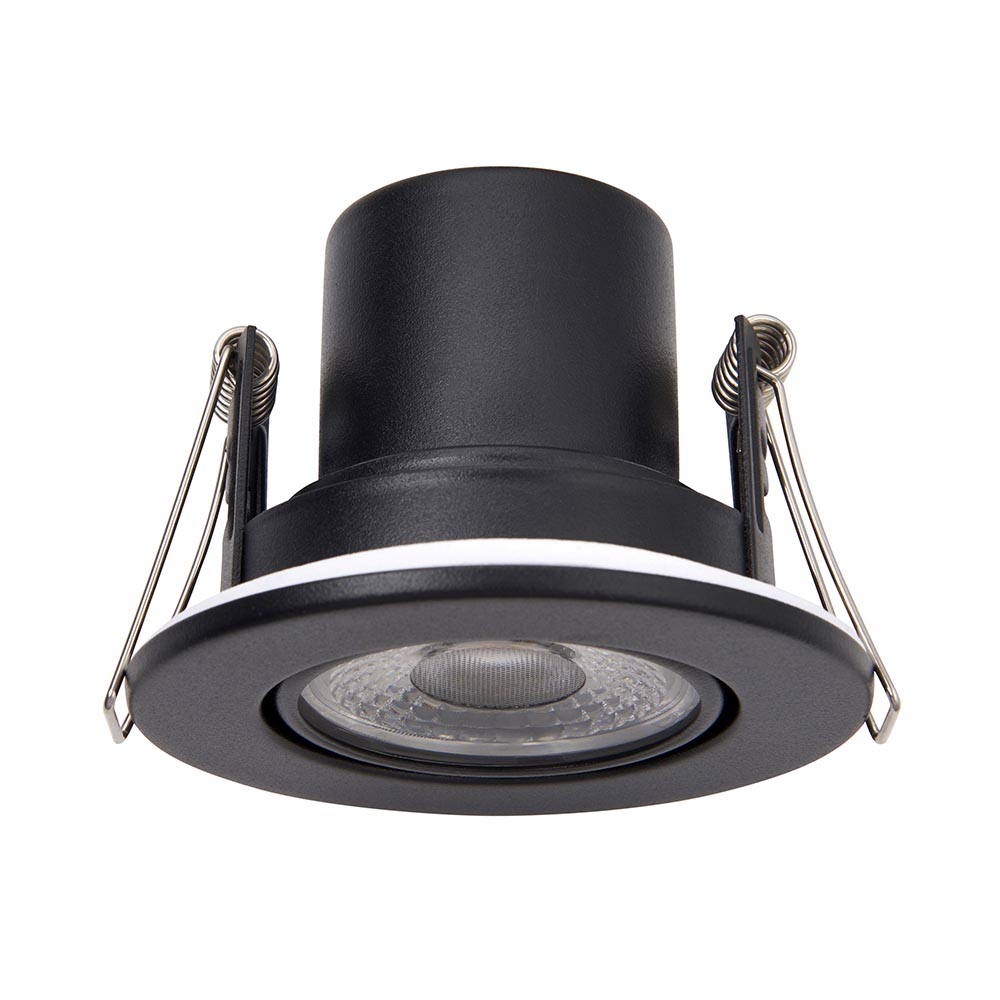

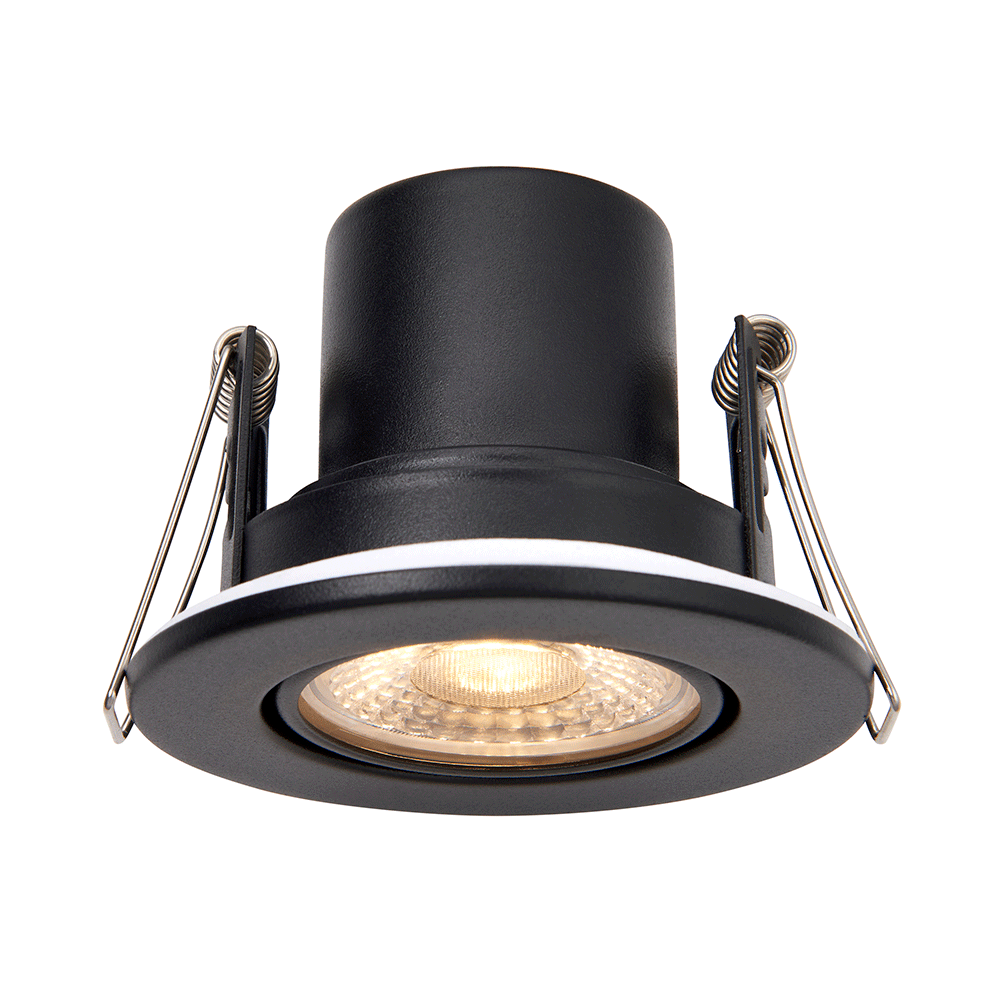

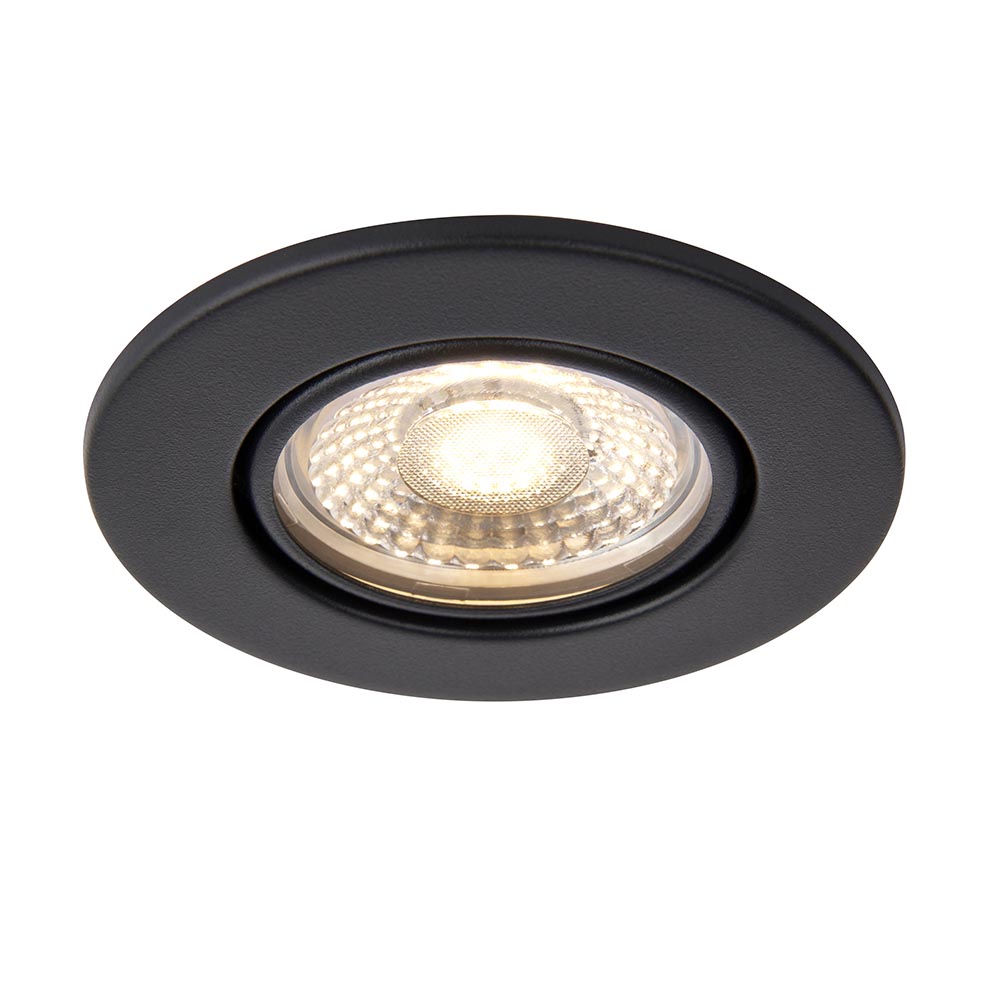

ShieldECO 500 CCT Tilt 5W

108295
Saxby
108295
UOS: Each
Hide
Ideal for domestic use, the ShieldECO 500 Tilt range has all the features required of an everyday downlight; fire rated, and dimmable. Tool-less and quick to install due to the 4 way push fit screwless terminal block. The 5W LED SMD module produces 500 lumens and incorporates a 60° lens. Slim profile with matt black finish.
  • Fully adjustable
  • Dimmable
  • 20 degree tilt
  • Matt black & clear acrylic
  • Constructed from steel & acrylic
  • Shipment Carton Qty: 20
Login To Buy

Overview

  • Complete with LED driver

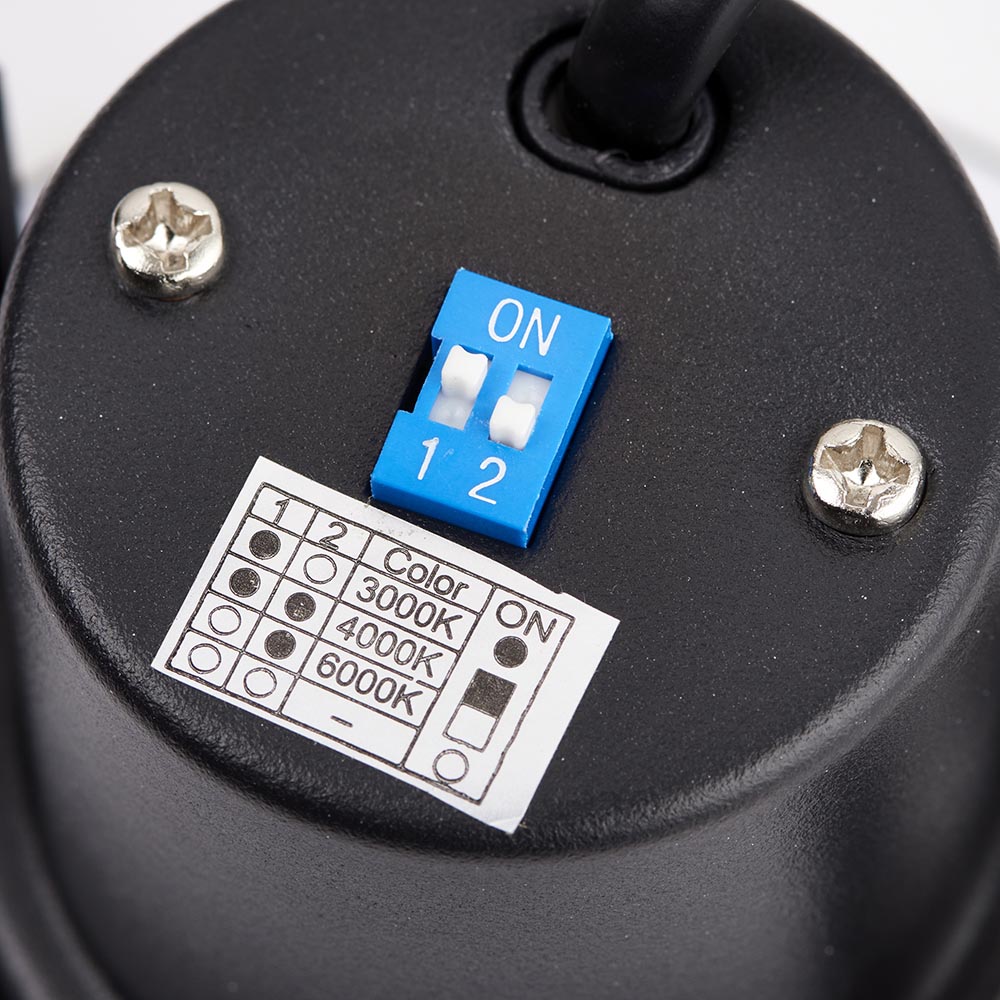

  • 5W LED module (SMD 2835 CCT) CCT (Included)
  • K: 3000/4000/6000 Lm: 500 Lm/W: 100
  • Fire rated to 30, 60 & 90 minutes
  • Proj: 3mm Dia: 85mm H: 60mm
  • Class 2
  • 2+1YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Matt black paint & clear acrylic
IP Rating:
20
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    60
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588082958
    Packed Height (mm):
    11
    Packed Wid (mm):
    8
    Packed Depth (mm):
    12
    Packed Weight (kg):
    .48

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    42
    Outer Width (mm):
    24
    Outer Depth (mm):
    25
    Outer Gross Weight (kg):
    7.26
