You are in :

Home > > > > > OrionPRO LED IP20 4000K 8W/M 15M

OrionPRO LED IP20 4000K 8W/M 15M

113687

Save As PDF

113687

UOS: Each

Hide

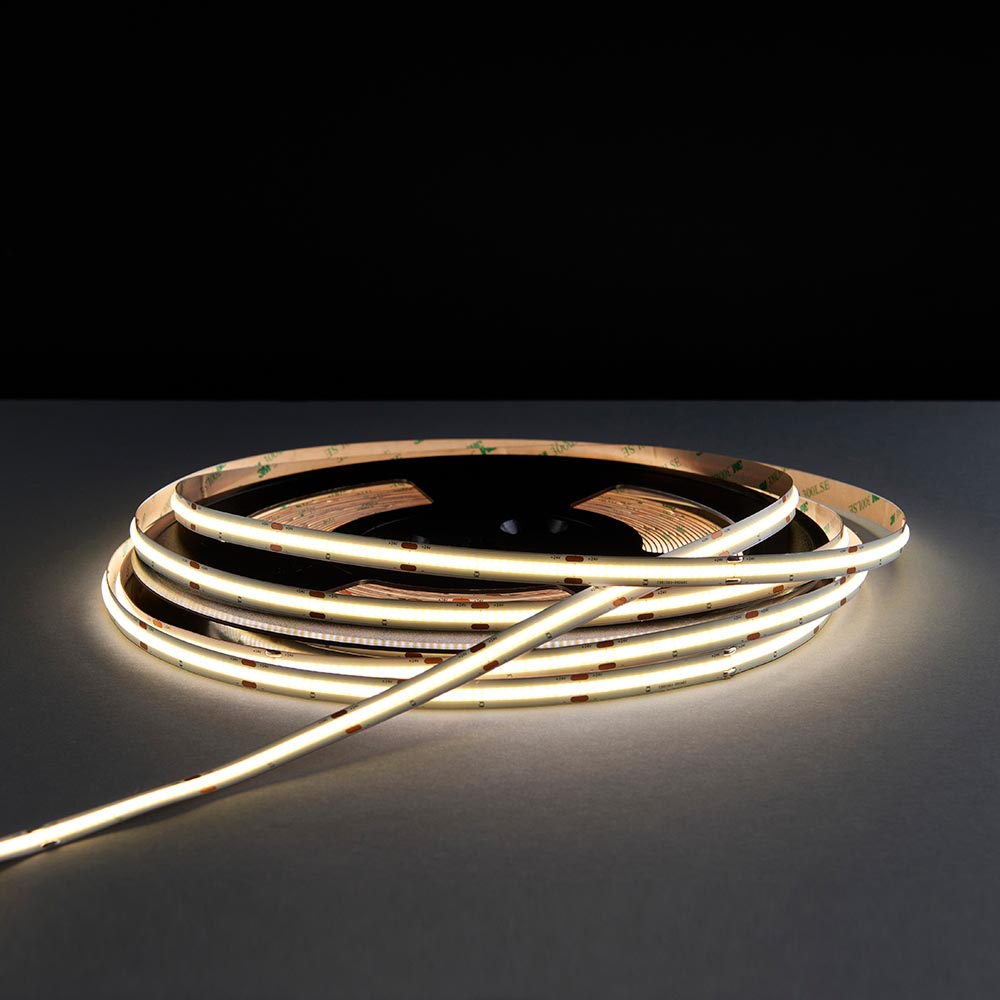

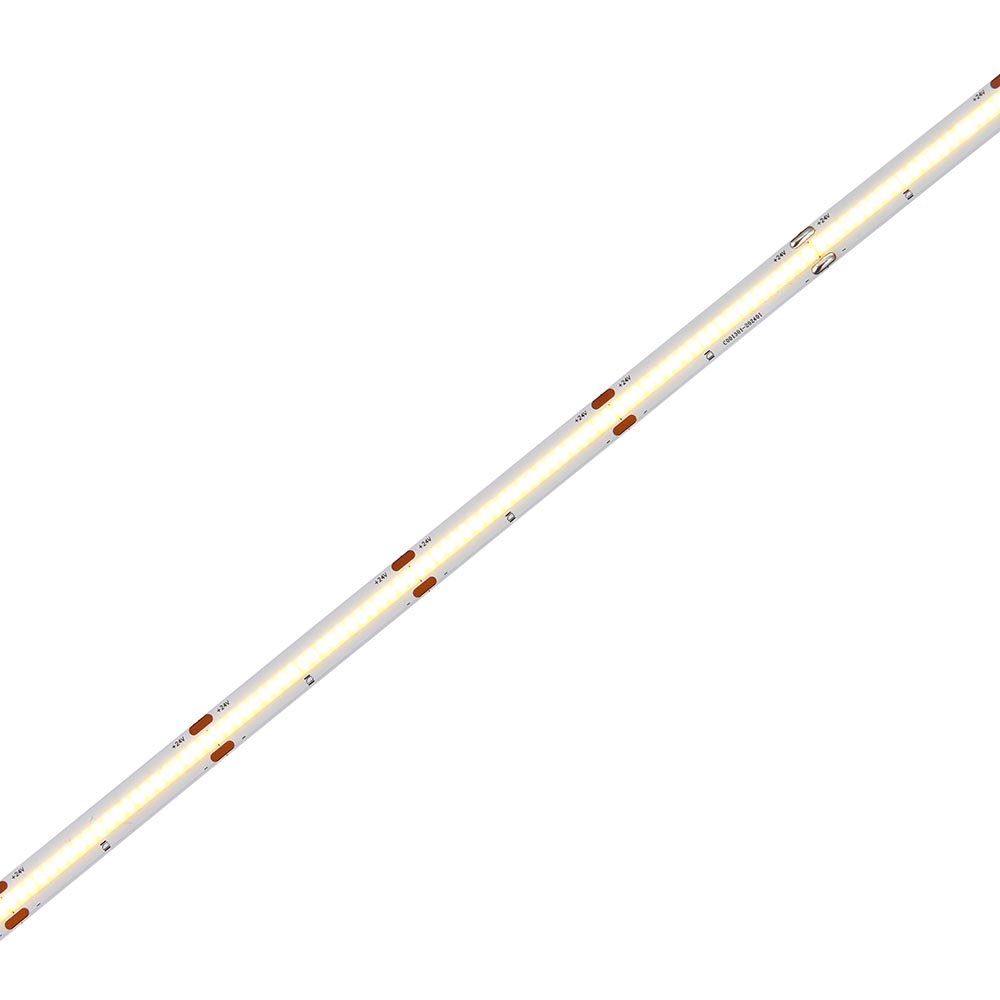

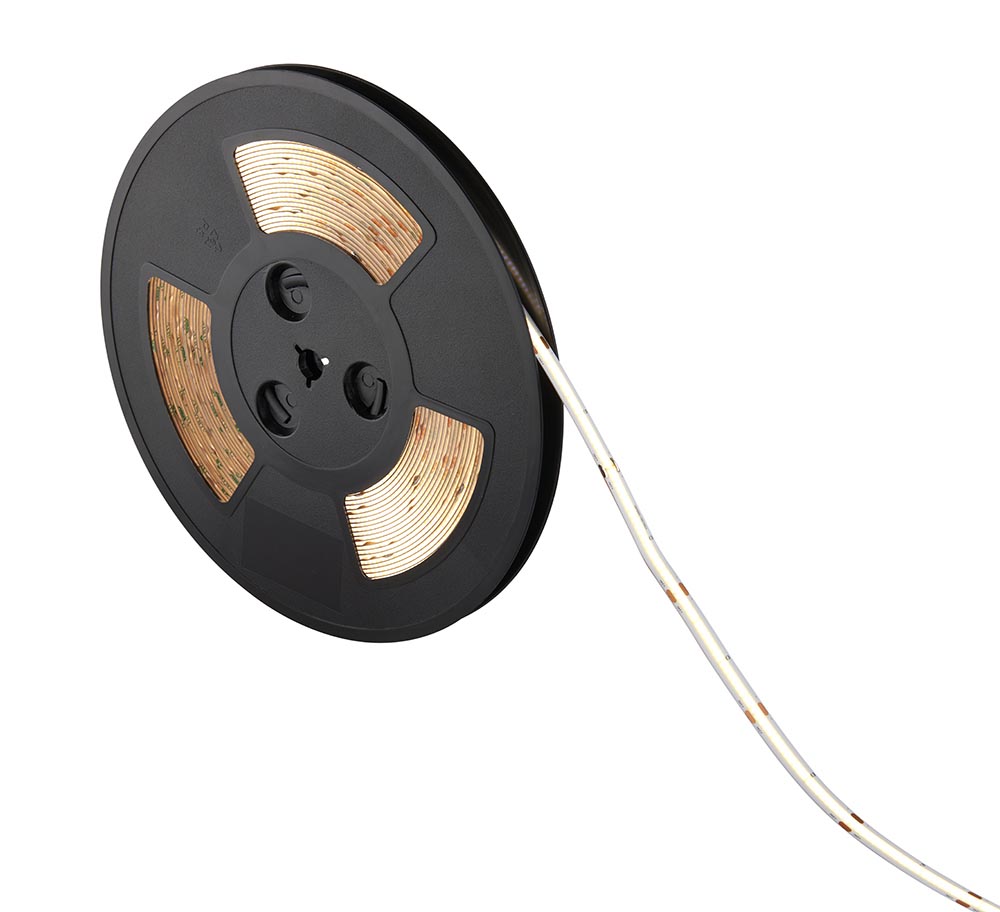

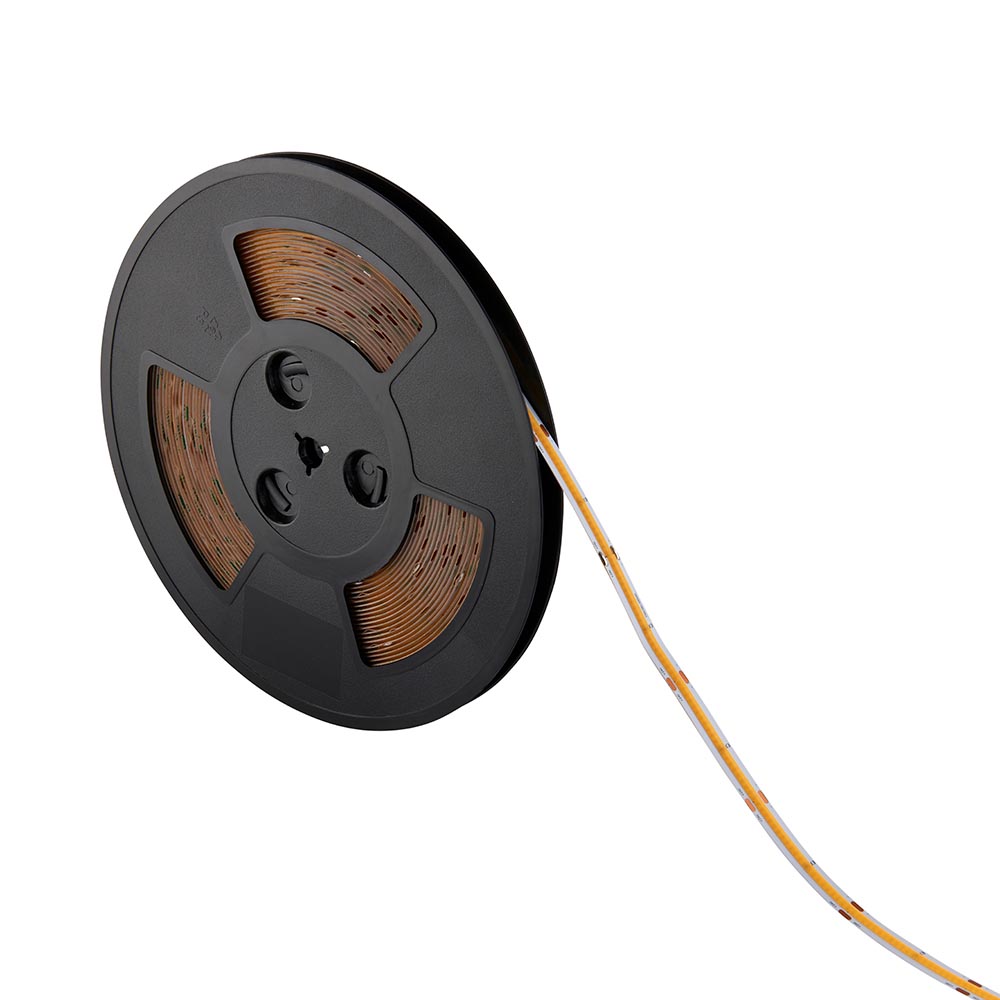

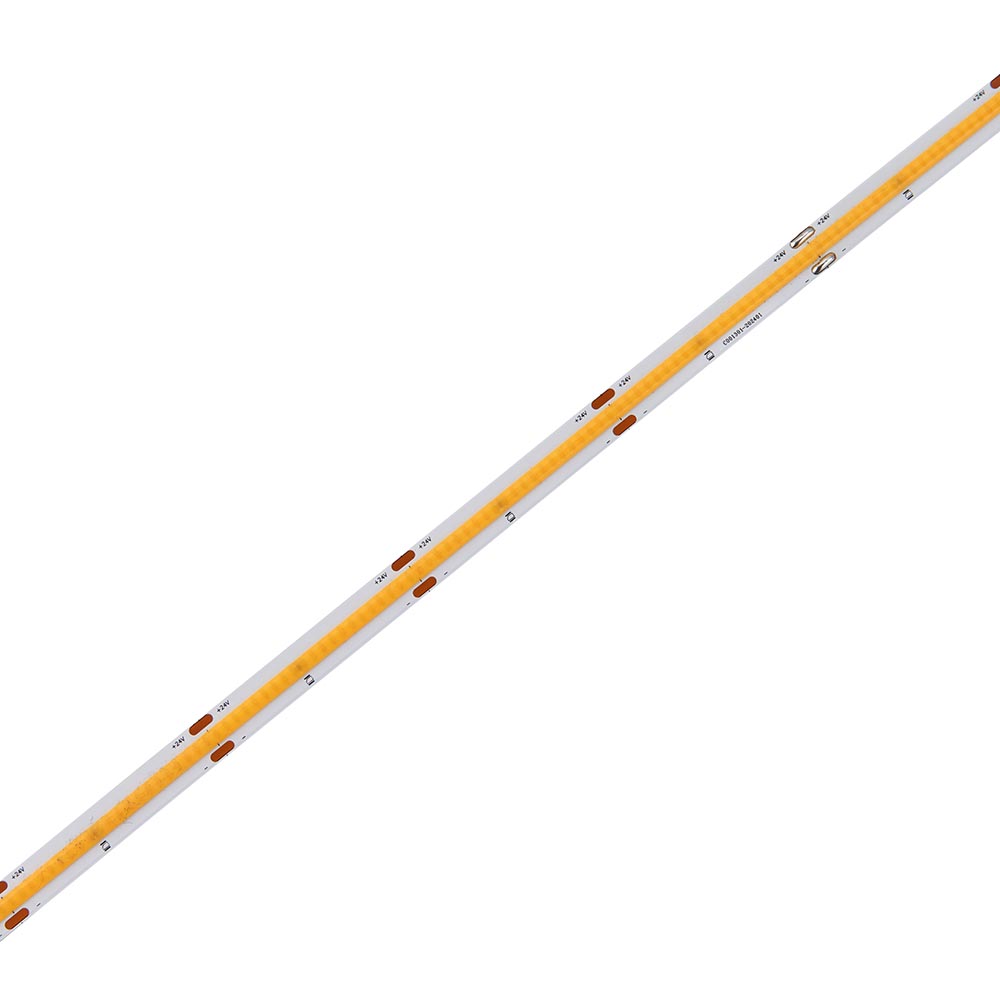

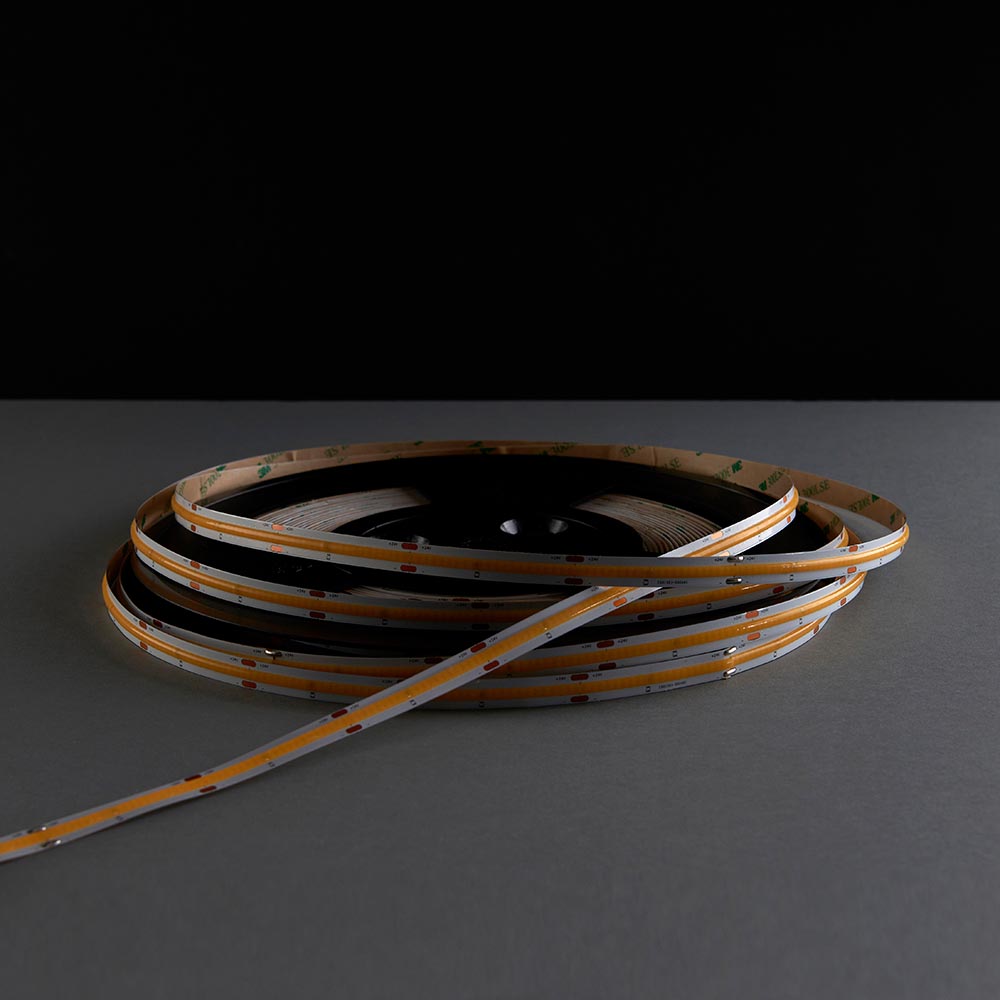

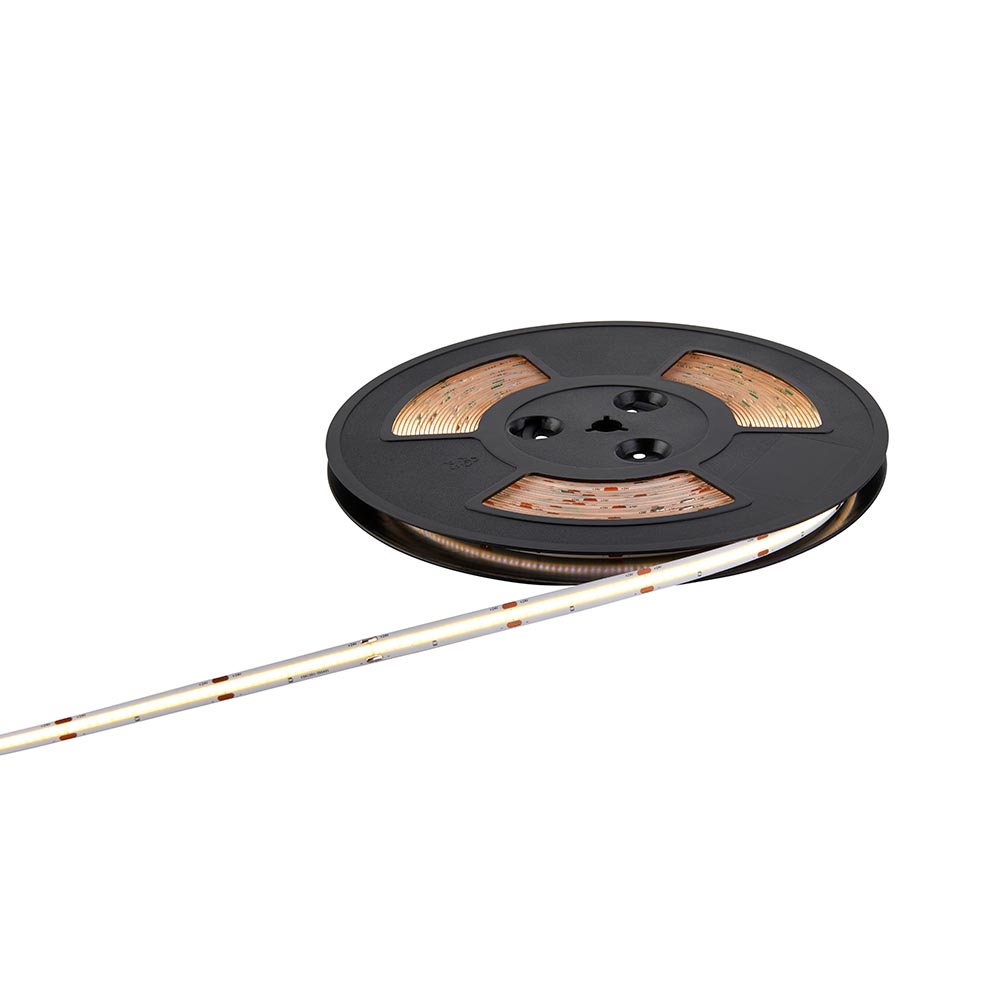

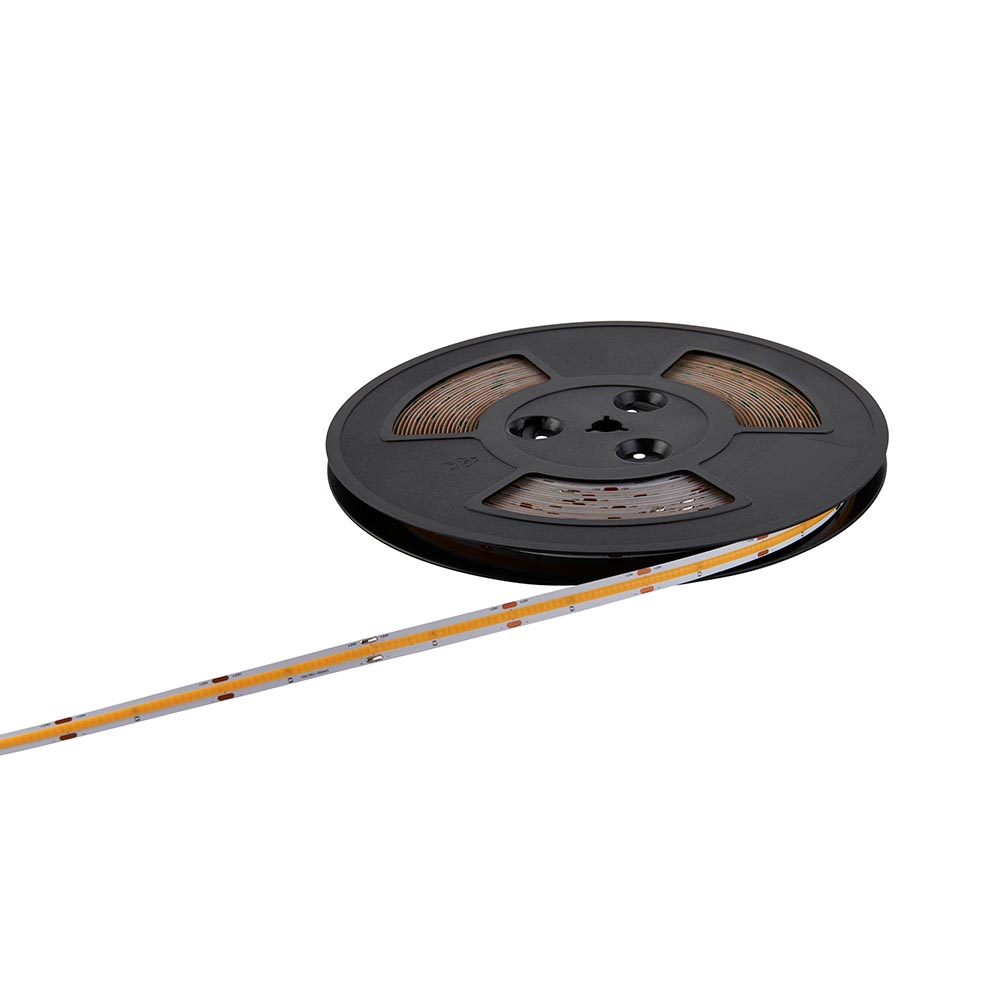

The OrionPRO LED is a IP20 rated, 24V cool white LED flexible strip light, which is easy to install due to the 3M self-adhesive backing. The OrionPRO LED produces 8W with 378 LED's per metre. The benefit of the COB is it allows for a seamless line of light without where you don't see the dots. You can cut the tape every 4cm's and reconnect as required. Supplied on a 15M reel which can be run in one continuous strip without any voltage drop. Accessories sold separately.

White plastic
Constructed from polymer film
Shipment Carton Qty: 20

Downloads

Download 300dpi image

Download All 300dpi images for this product

Download EPS Brand Logo

Image Download Library

Overview

120W LED tape module (COB) Cool White (Included)
K: 4000 Lm: 11400 Lm/W: 95
H: 2mm W: 10mm L: 15000mm
come with 1M 18AWG wire
2+1YR Extended Warranty
Weight: 0.4 Kg

Specification

Colour Finish:

White polymer film

IP Rating:

Operating Voltage:

24V dc

Commodity Code:

9405423990

Country Of Origin:

China

Documents

Specification

Commodity Code: 9405423990

Country of Origin:

Technical Datasheet

Photometric LDT File

Dimensions

Unpacked Height (mm):

Unpacked Width (mm):

Unpacked Depth (mm):

No Depth

Pack Quantities

Package Pack Type:

Retail carton

Package EAN:

5017588136873

Packed Height (mm):

Packed Wid (mm):

26.2

Packed Depth (mm):

26.2

Packed Weight (kg):

Case Quantities

Outer Carton

Outer Pack Type:

Shipment carton

Outer Qty:

Outer Height (mm):

Outer Width (mm):

32.5

Outer Depth (mm):

32.5

Outer Gross Weight (kg):

8.68

FAQs

15 metres

Calculate the wattage by the length needed and add 20% for safety measures.

We advise using 1 sync controller (103024) per length of tape and connecting the controllers via RJ45 cable.

This product cannot be cut and connected with a tape-to-driver connector. This tape is for a seamless 15 metre run and can only be used with a tape-to-tape connector.
