OrionPRO IP20 Connector flexible tape to tape

102664
Saxby
102664
UOS: Each
Hide

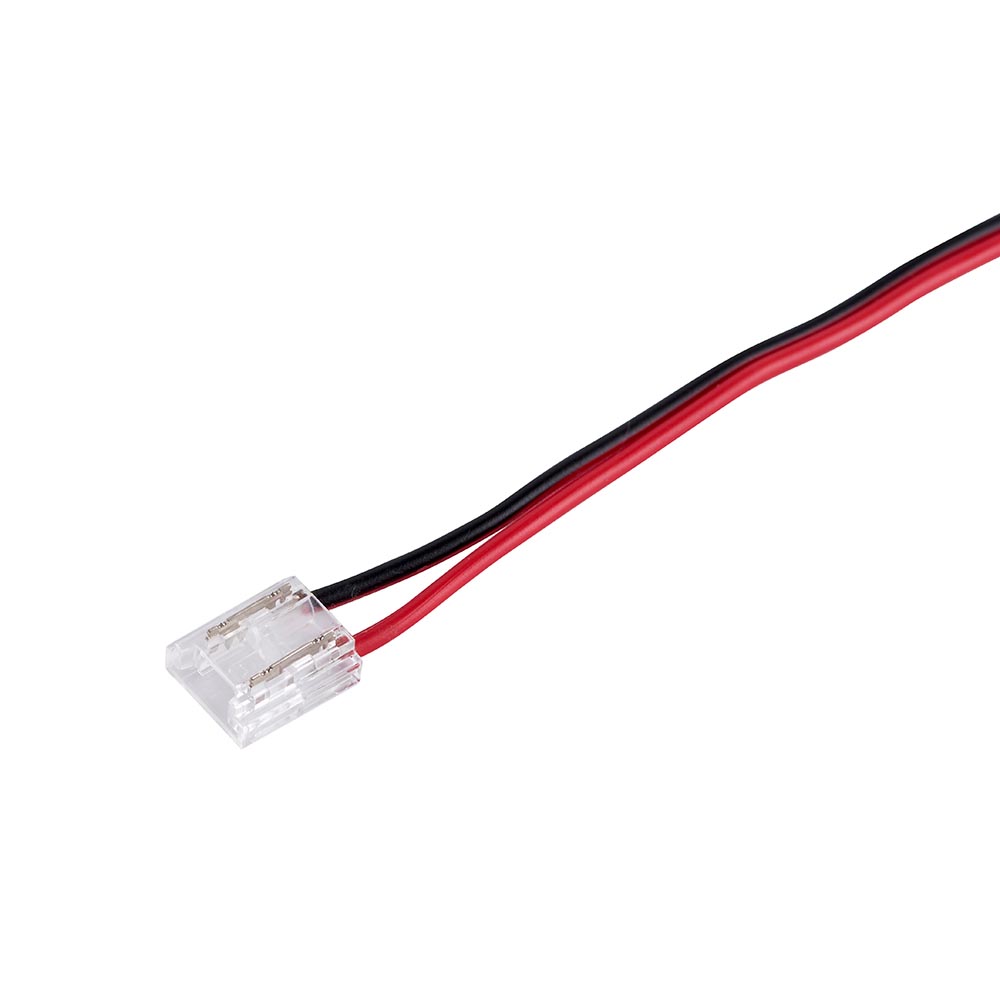

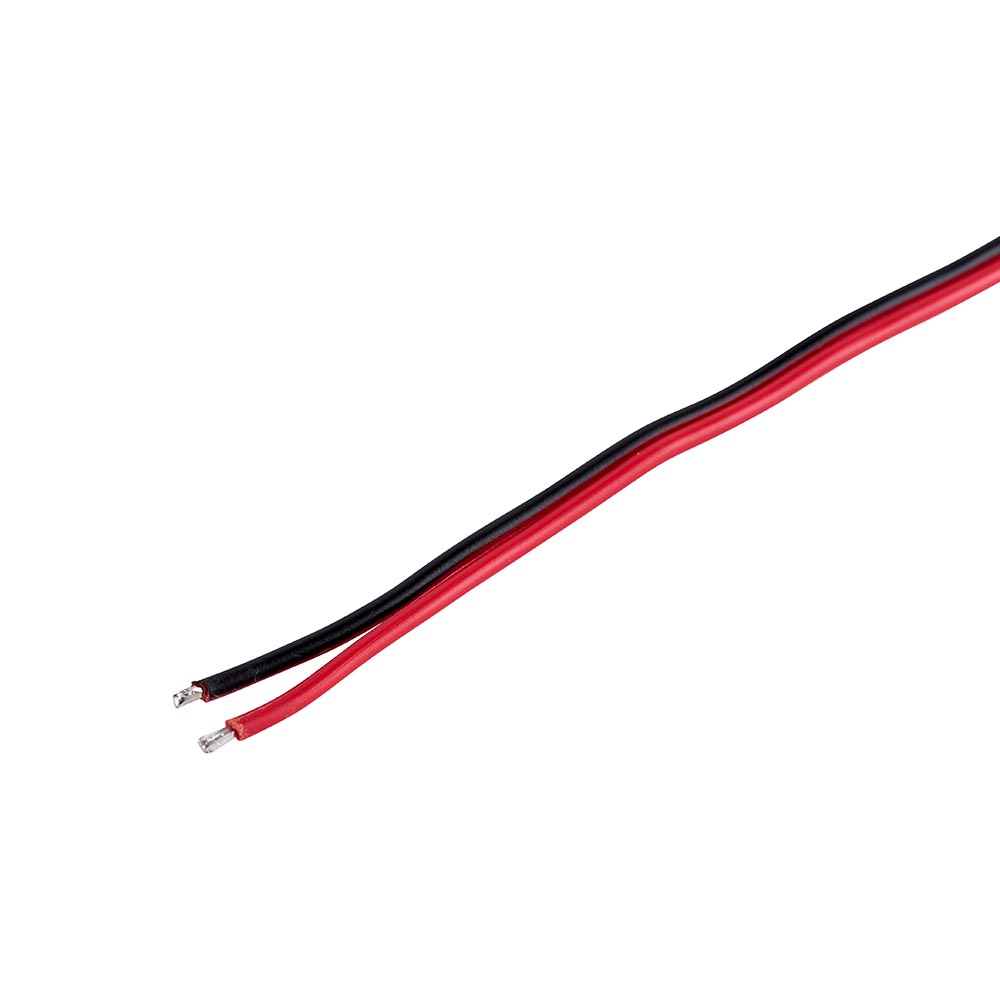

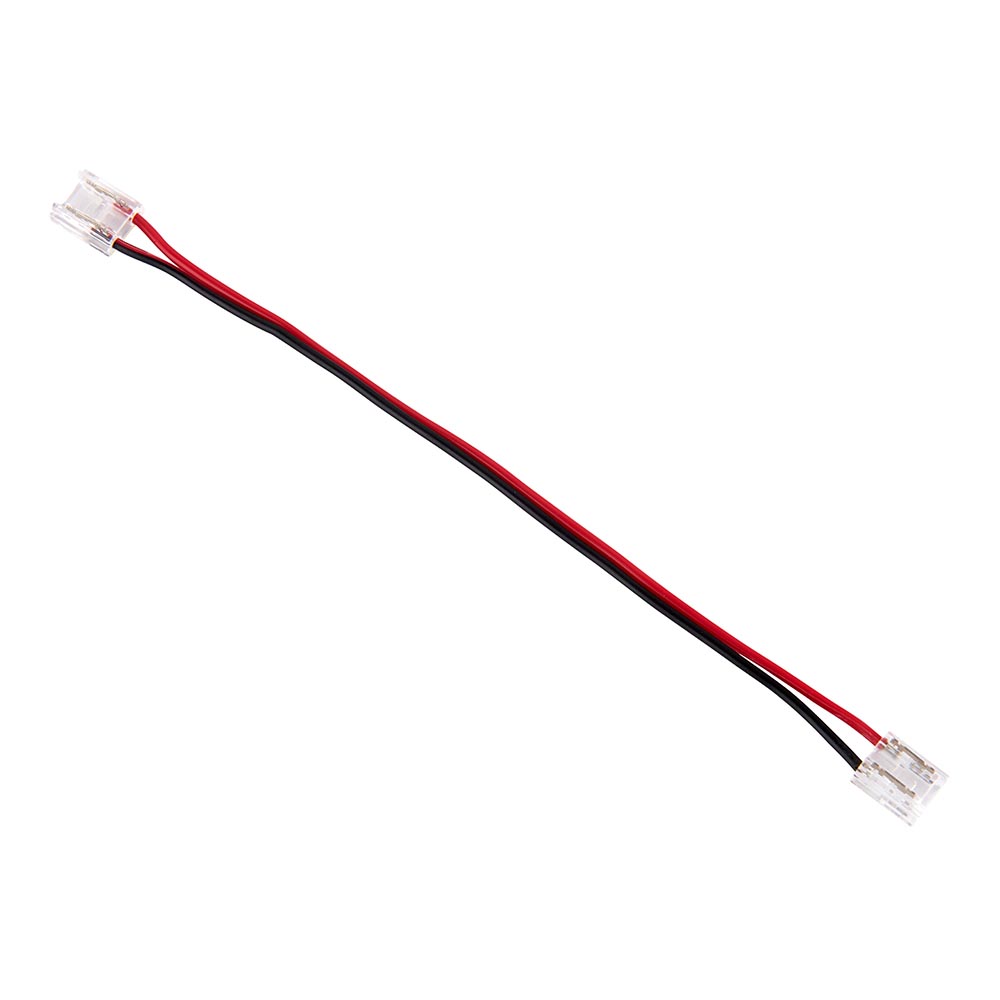

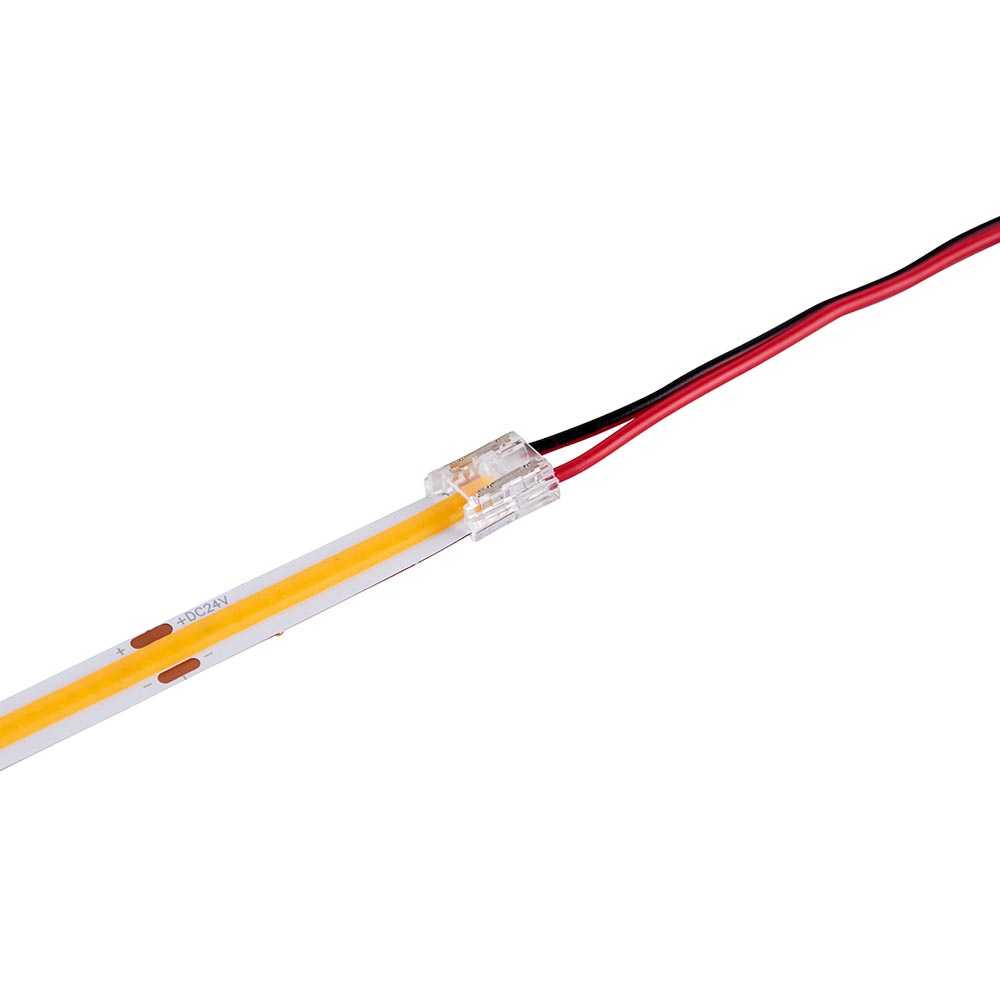

The OrionPRO flexible tape to tape connector makes for an effortless, easy install when connecting two lines of tape together that requires to turn in direction. Simply insert each end of the tape into the plastic connecter and clamp down on the two metal prongs piercing the copper conductors on the PCB creating the connection. This connector comes with 15cms of cable giving you plenty of length to work with. Suitable for the Orion IP20 range.
  • Clear pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 200

Overview

  • H: 4.2mm W: 9.8mm L: 177mm
  • compatible with all IP20 Orion tape
  • Max 6A current
  • 2+1YR Extended Warranty
  • Weight: 0 Kg

Specification

Colour Finish:
Clear pc
IP Rating:
20
Operating Voltage:
24V DC
Commodity Code:
9405920090
Country Of Origin:
China

Dimensons

Unpacked Height (mm):
4.2
Unpacked Width (mm):
9.8
Unpacked Depth (mm):
No Depth

Pack Quantities

Package Pack Type:
Poly pack
Package EAN:
5017588026648
Packed Weight (kg):
.01

Case Quantities

Outer Carton
Outer Pack Type:
Shipment carton
Outer Qty:
200
Outer Height (mm):
26
Outer Width (mm):
7
Outer Depth (mm):
26
Outer Gross Weight (kg):
1.36
