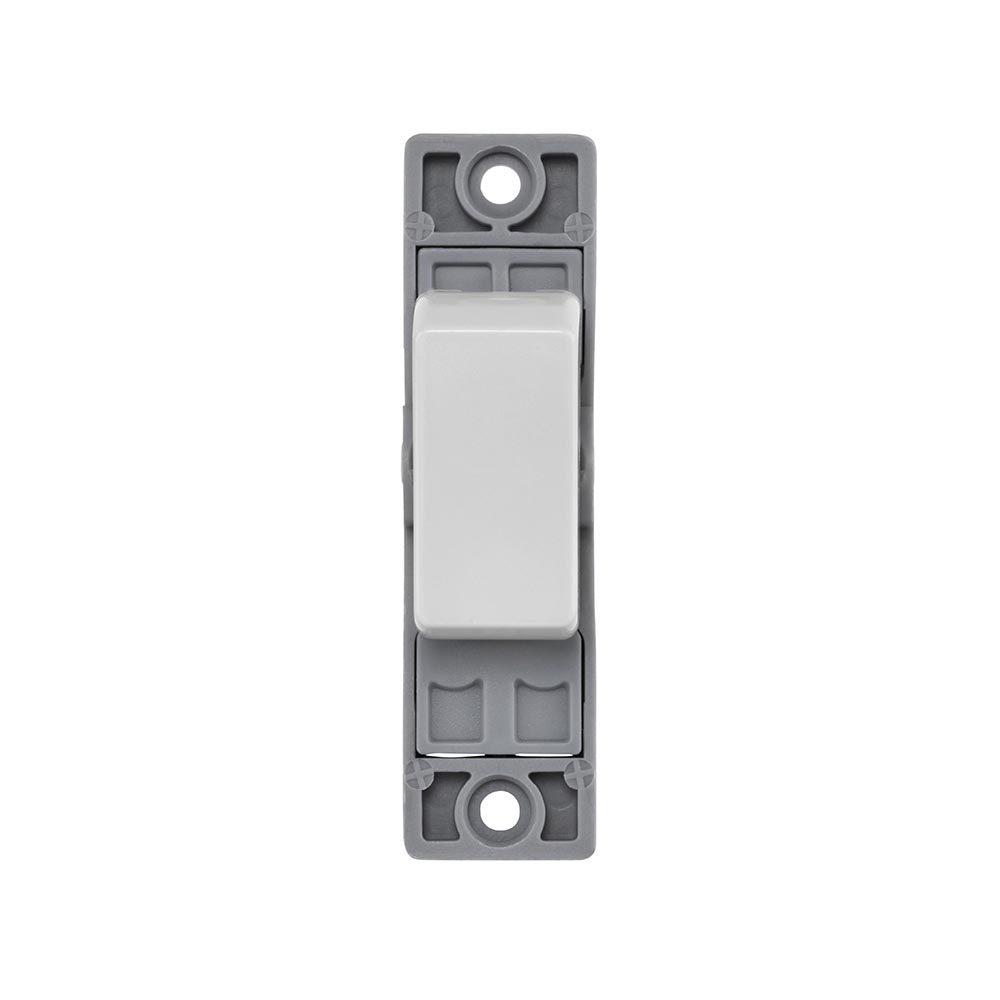

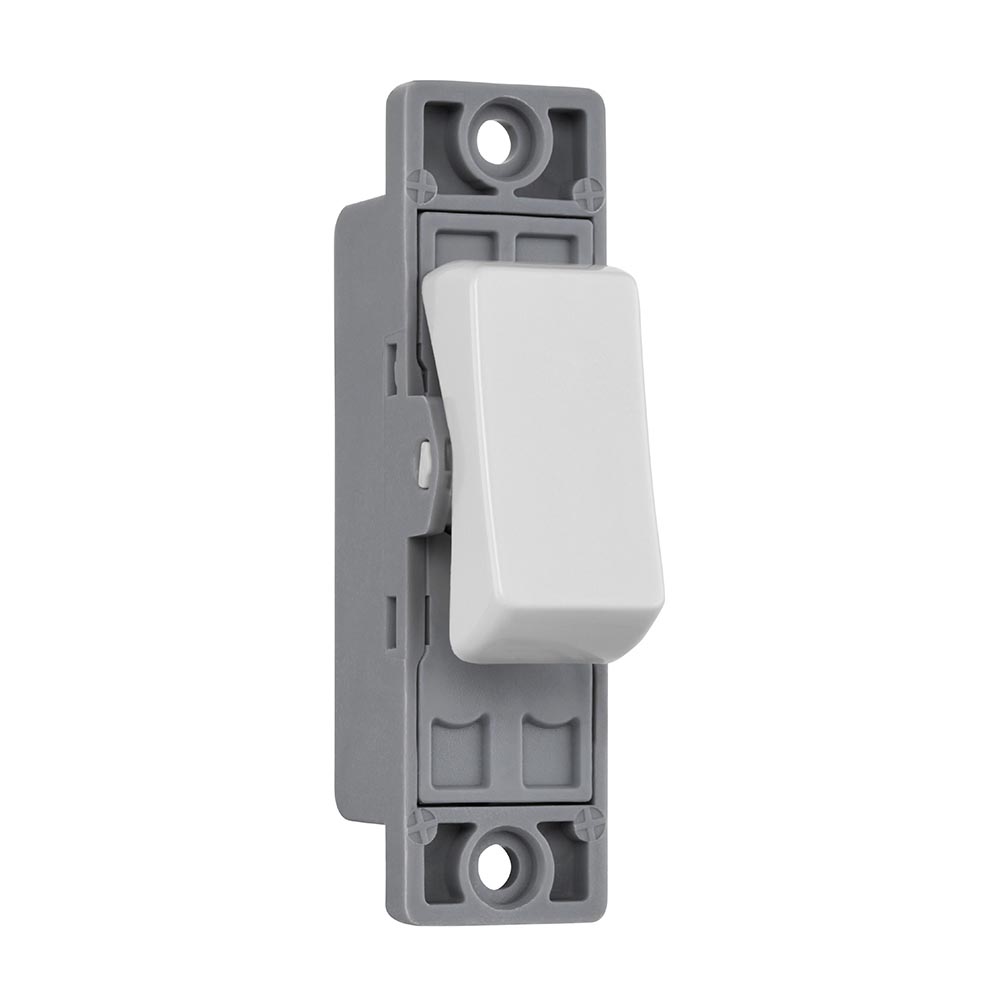

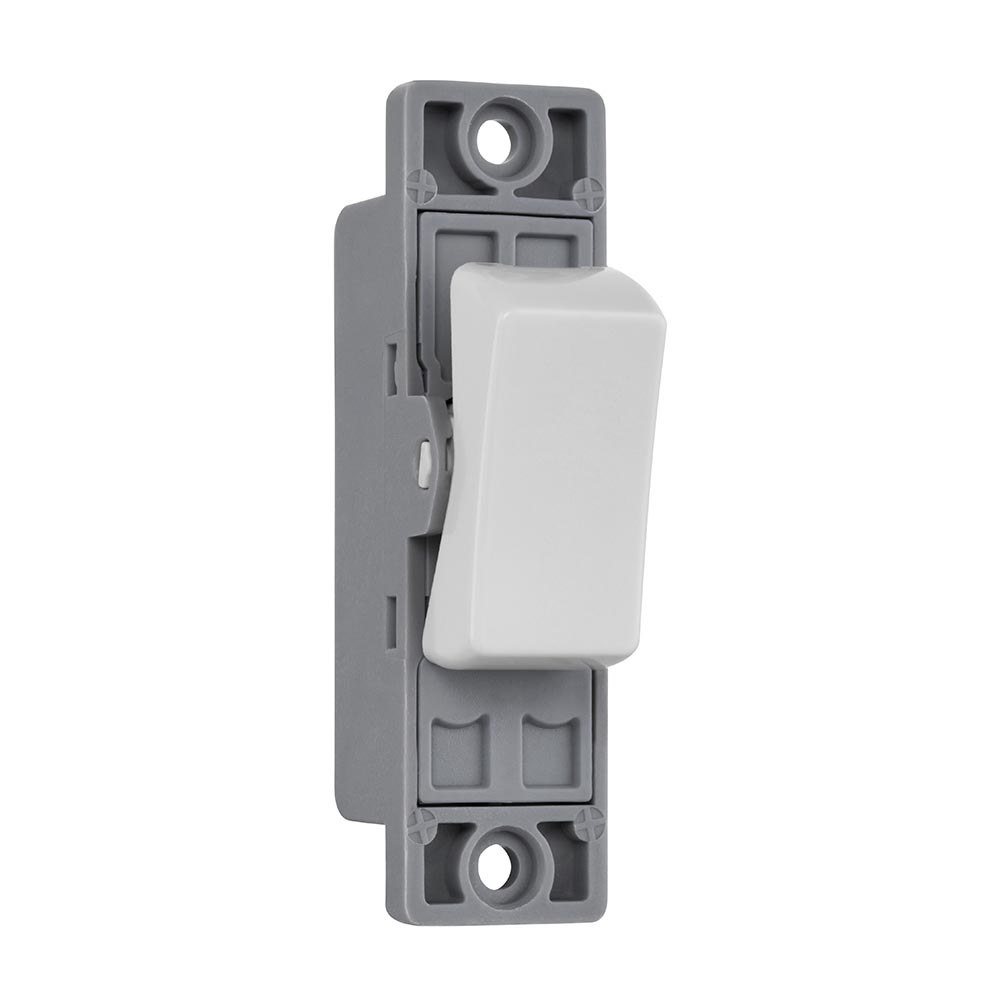

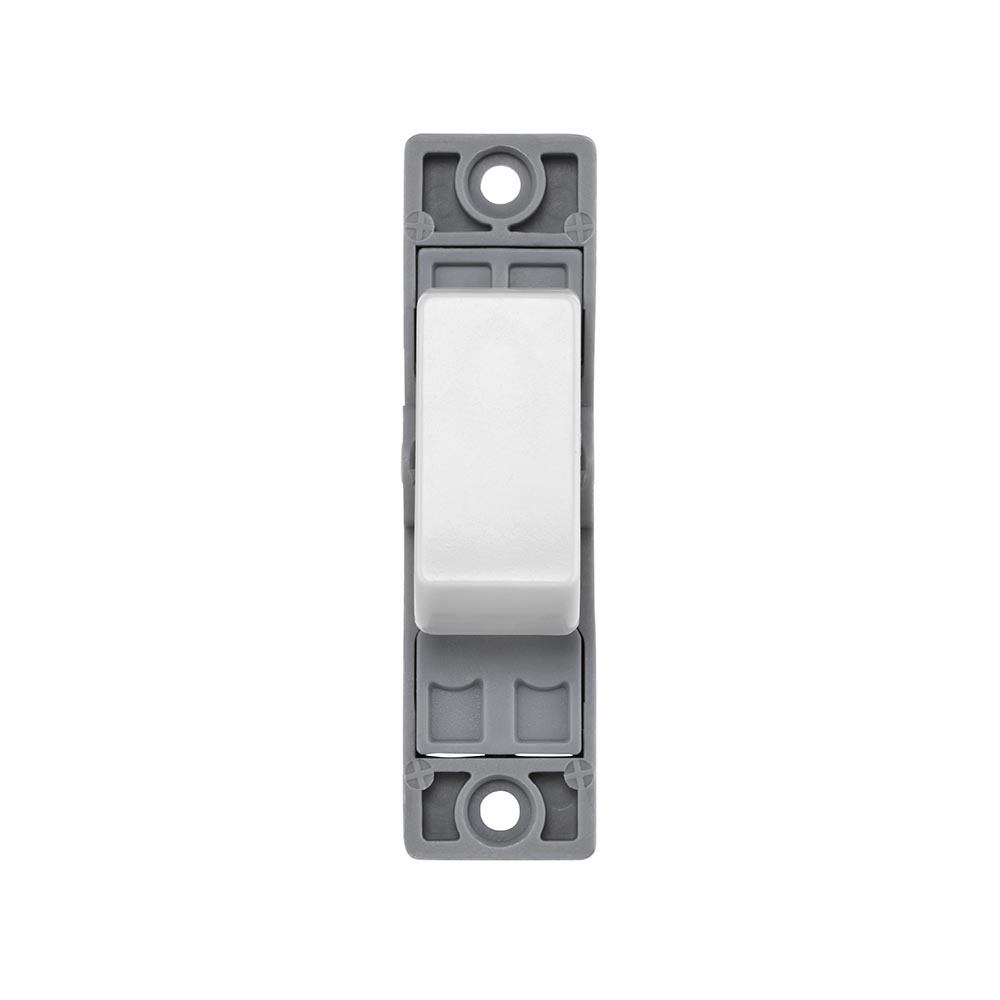

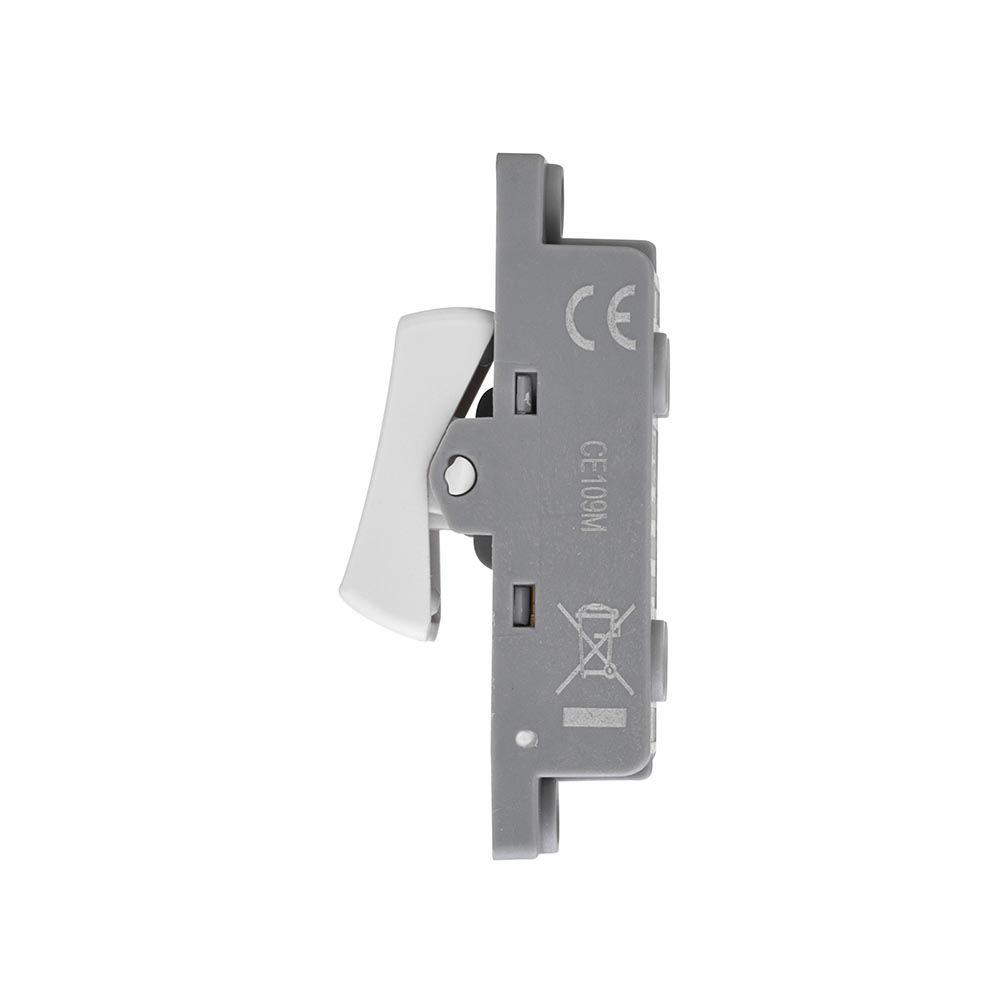

Curved Edge 10AX 1G Intermediate Switch

CE109M
Saxby-Electrical
CE109M
UOS: Each
Hide
Login To Buy

Overview

  • Easy to fit intermediate module - suitable for curved and square edge ranges
  • The intermediate switch allows for more than 2 switches in the circuit
  • This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • We recommend a minimum mounting box depth of 25mm
  • Certified to IEC/BS EN60669"

    • Specification

    Colour Finish:
    White
    Captive Terminal Screw:
    YES
    Fixing Screws Supplied:
    NO
    Minimum Box Depth (mm):
    25

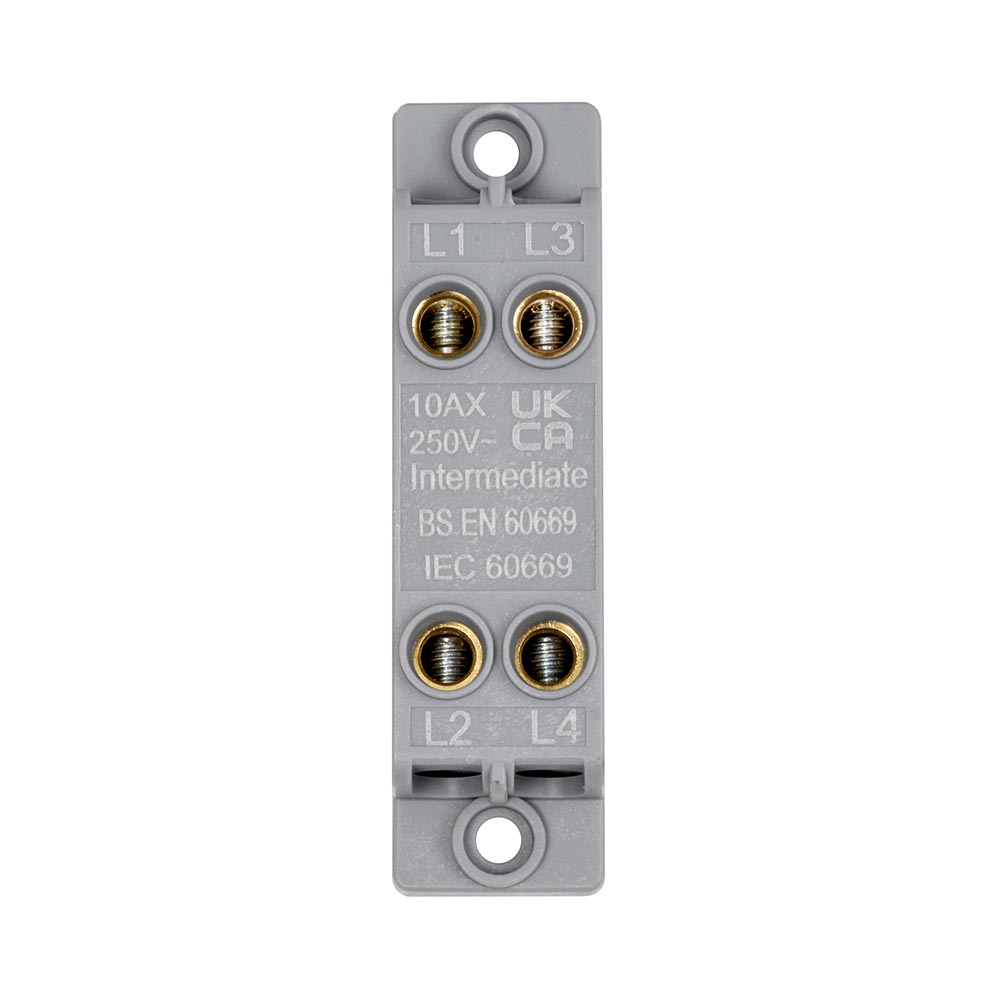

    Terminal Capacity (mm):
    6²*1/2.5²*2/1.5²*3
    Screw Caps:
    NO
    IP Rating:
    20
    Switch Type:
    INTERMEDIATE
    Anti-Microbial Property:
    YES
    Operating Voltage:
    250V 50Hz
    Anti-Fingerprint Lacquer:
    YES
    Commodity Code:
    8536508090
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 8536508090
  • Country of Origin:


    • Technical Datasheet

    Dimensions

    Unpacked Height (mm):
    60
    Unpacked Width (mm):
    16.100000000000001
    Unpacked Depth (mm):
    26.1

    Pack Quantities

    Package Pack Type:
    PRINTED BAG
    Package Hanging:
    YES
    Package EAN:
    5017588058373
    Packed Height (mm):
    16.5
    Packed Wid (mm):
    11
    Packed Depth (mm):
    2.62
    Packed Weight (kg):
    .02

    Case Quantities

    Inner Carton
    Inner Pack Type:
    SAXBY BRAND BOX
    Inner Qty:
    36
    Inner EAN:
    0105017588058373
    Inner Height (mm):
    9.2
    Inner Width (mm):
    16.2
    Inner Depth (mm):
    18.2
    Inner Gross Weight (kg):
    .87
    Outer Carton
    Outer Pack Type:
    BROWN BOX
    Outer Qty:
    360
    Outer Height (mm):
    21.5
    Outer Width (mm):
    33
    Outer Depth (mm):
    50.5
    Outer Gross Weight (kg):
    9.52
