Axial CCT 15/18/20W Round

108289
Saxby
108289
UOS: Each
Hide

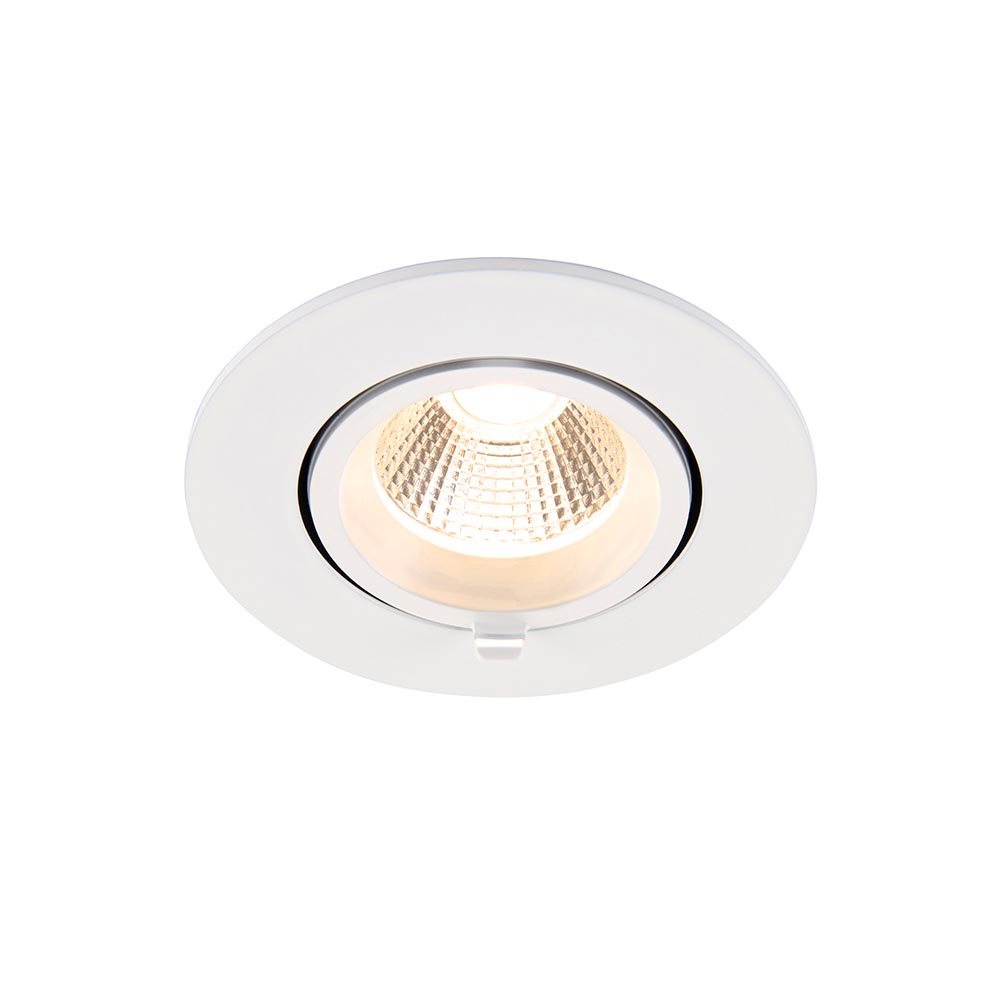

The Axial CCT range consists of high performance downlights, ideal for commercial spaces, but particularly retail as their light projection is changeable and its wattage is selectable. Each fitting is supplied with a driver. Range contains a variety of sizes and shapes. Available in matt white and matt black and other wattage options.
  • Fully adjustable

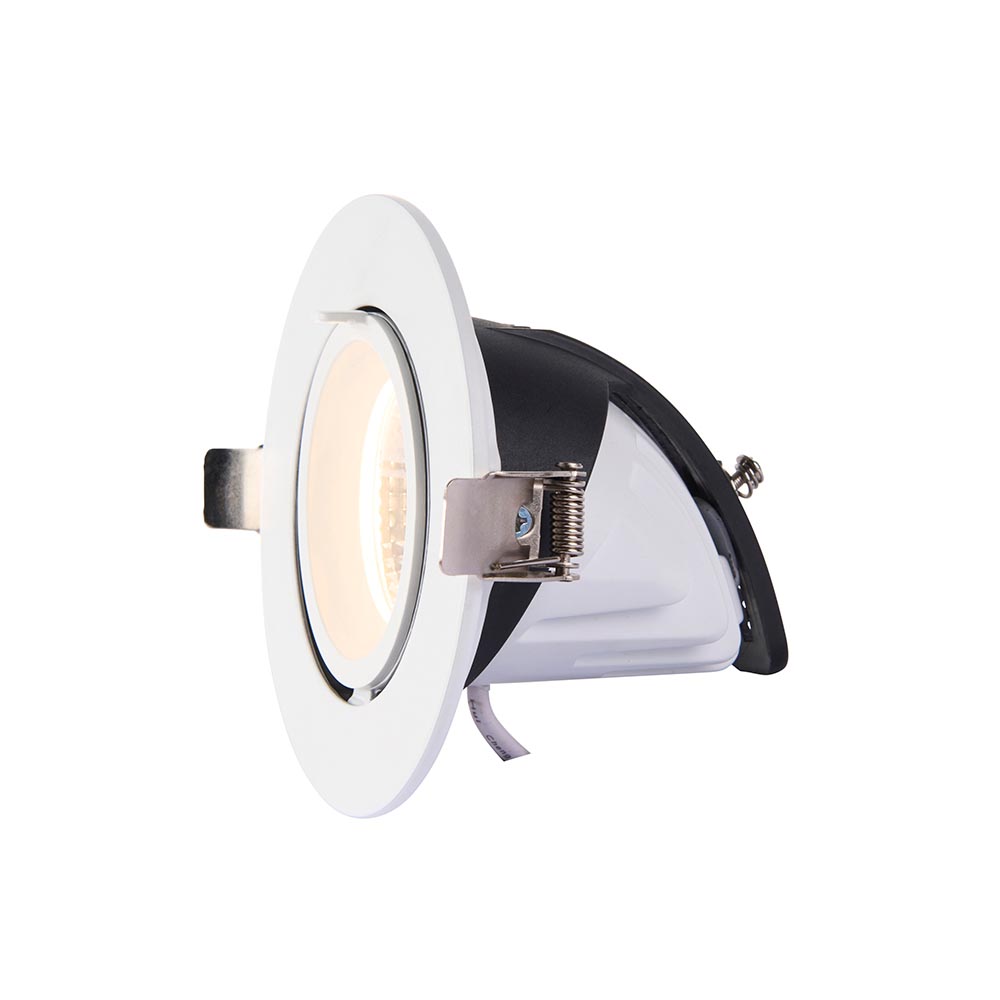

  • 355 degree rotation and 60 degree tilt
  • Matt white & clear pc
  • Constructed from die cast aluminium alloy & polycarbonate
  • Shipment Carton Qty: 36
Login To Buy

Overview

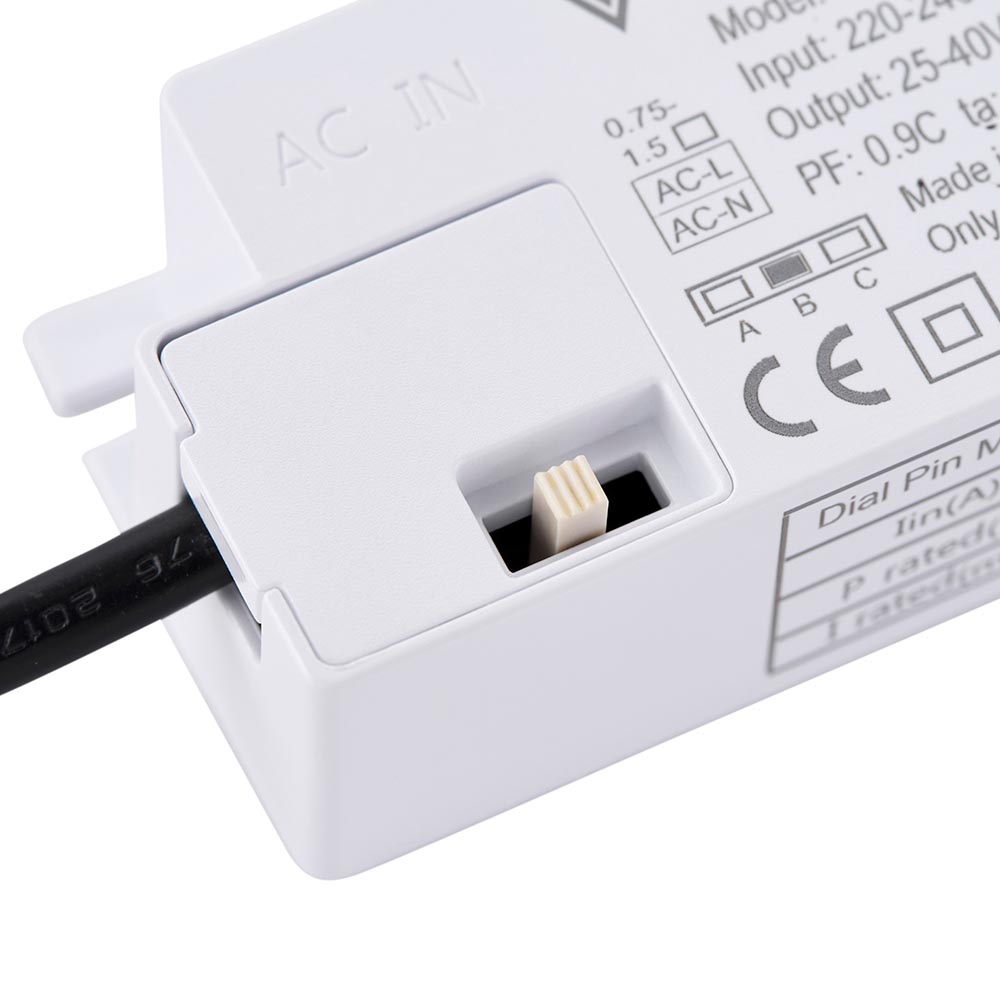

  • Complete with LED driver
  • 15/18/20W LED module (COB) CCT (Included)

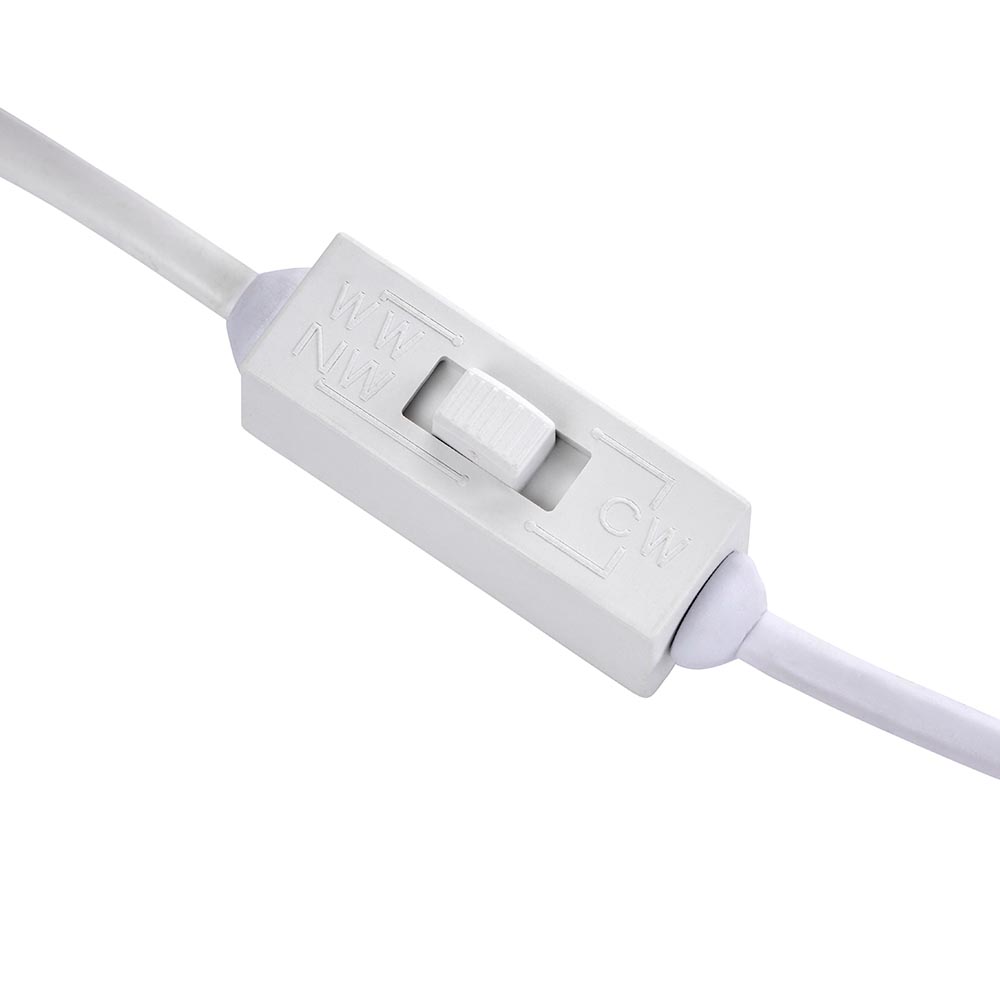

  • K: 3000/4000/6000 Lm:1400/1600/1780
  • H: 90mm Dia: 110mm
  • Class 2
  • Cut hole Dia: 95mm
  • DALI and Casambi versions available on request
  • RAL Colour :- 9016

    • Specification

    Colour Finish:
    Matt white paint & clear pc
    IP Rating:
    20
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 9405423990
  • Country of Origin:


    • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    90
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588082897
    Packed Height (mm):
    12.5
    Packed Wid (mm):
    12
    Packed Depth (mm):
    10
    Packed Weight (kg):
    .45

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    36
    Outer Height (mm):
    54
    Outer Width (mm):
    44
    Outer Depth (mm):
    38.5
    Outer Gross Weight (kg):
    16.8
