Shield 4CCT IP65 7W

109803
Saxby
109803
UOS: Each
Hide

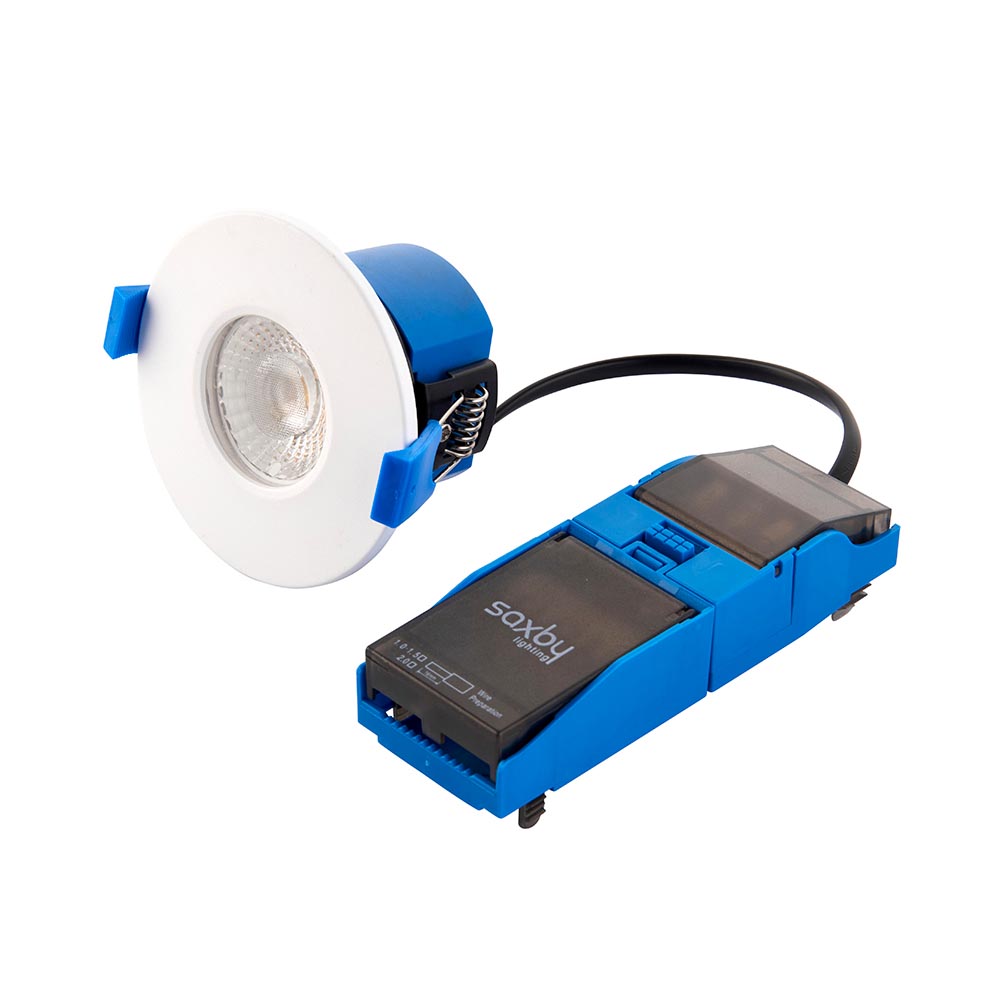

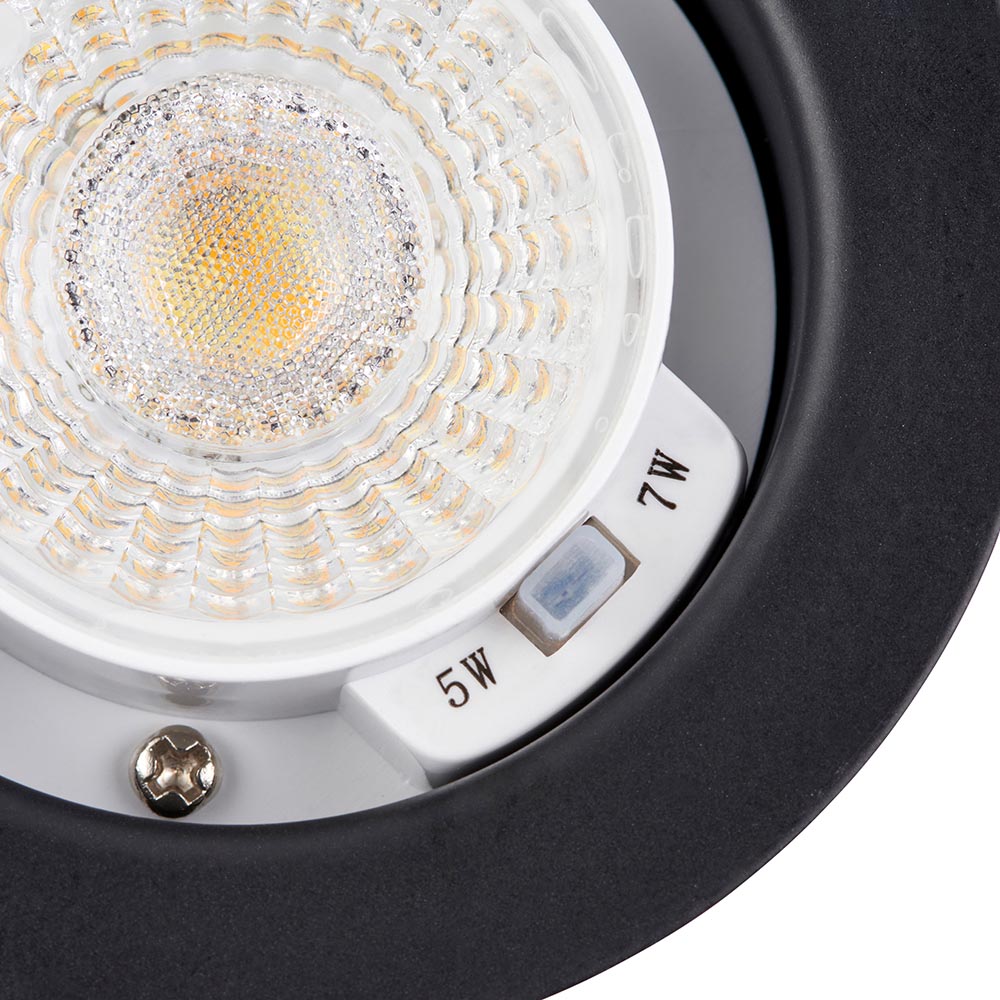

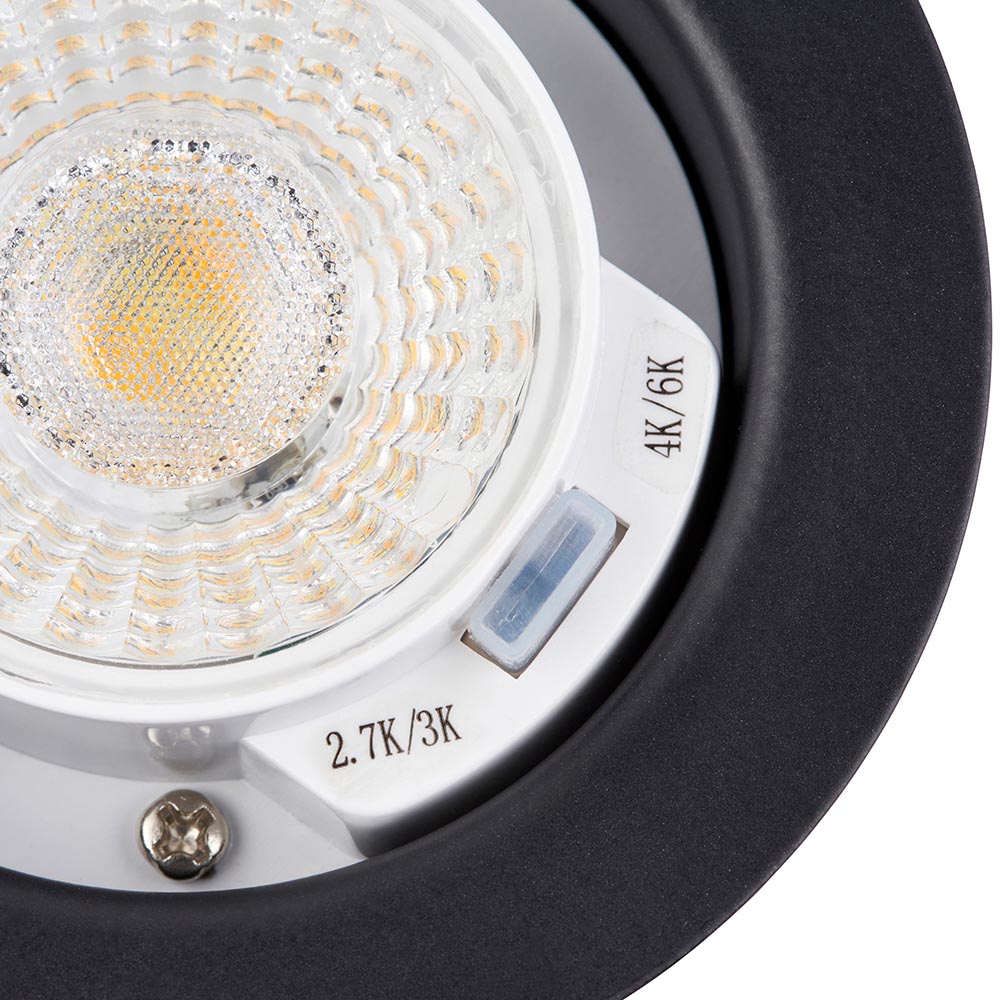

The popular Shield 4CCT fitting from Saxby! This fitting comes with a 3-way ‘Plug and Play' connector which allows users to loop in and out. The 4-way CCT switch and Dual wattage switch has been moved under the bezel making for easy access giving the user ability to easily choose between 2700K, 3000K, 4000K or 6000K and 5W or 7W. Other features include: the option to be covered with insulation, fits into shallow ceiling voids, IP65-rated, and fully fire-rated for 30, 60 and 90-minute ceilings. Available to purchase in singles or as a 10 packs.
  • Dimmable
  • Matt white & clear acrylic
  • Constructed from steel & polycarbonate & acrylic
  • Shipment Carton Qty: 50

Overview

  • Complete with LED driver
  • 7W LED module (SMD 2835 CCT) CCT (Included)
  • K: 2700/3000/4000/6000 Lm: 750 Lm/W: 107
  • IP65. Suitable for bathroom zone 2
  • Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
  • Fire rated to 30, 60 & 90 minutes
  • Proj: 4mm H: 50mm Dia: 89mm
  • Class 2
  • Cut hole Dia: 68mm
  • 2+3YR Extended Warranty
  • Weight: 0.2 Kg

Specification

Colour Finish:
Matt white paint & clear acrylic
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    50
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588098034
    Packed Height (mm):
    12
    Packed Wid (mm):
    9.5
    Packed Depth (mm):
    7
    Packed Weight (kg):
    .23

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    50
    Outer Height (mm):
    50
    Outer Width (mm):
    25
    Outer Depth (mm):
    37
    Outer Gross Weight (kg):
    12.29
