We are currently managing stock levels for this product as we are upgrading to 3CCT.
We apologise for any inconvenience caused

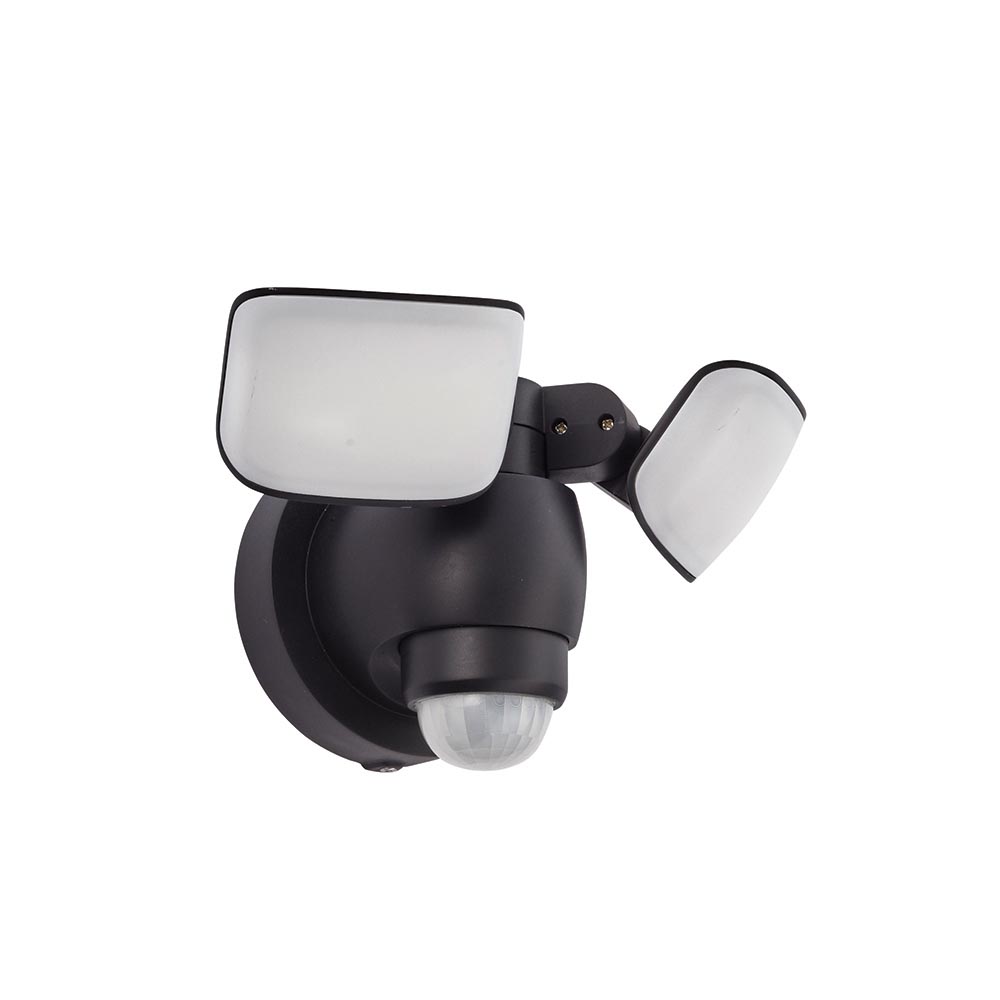

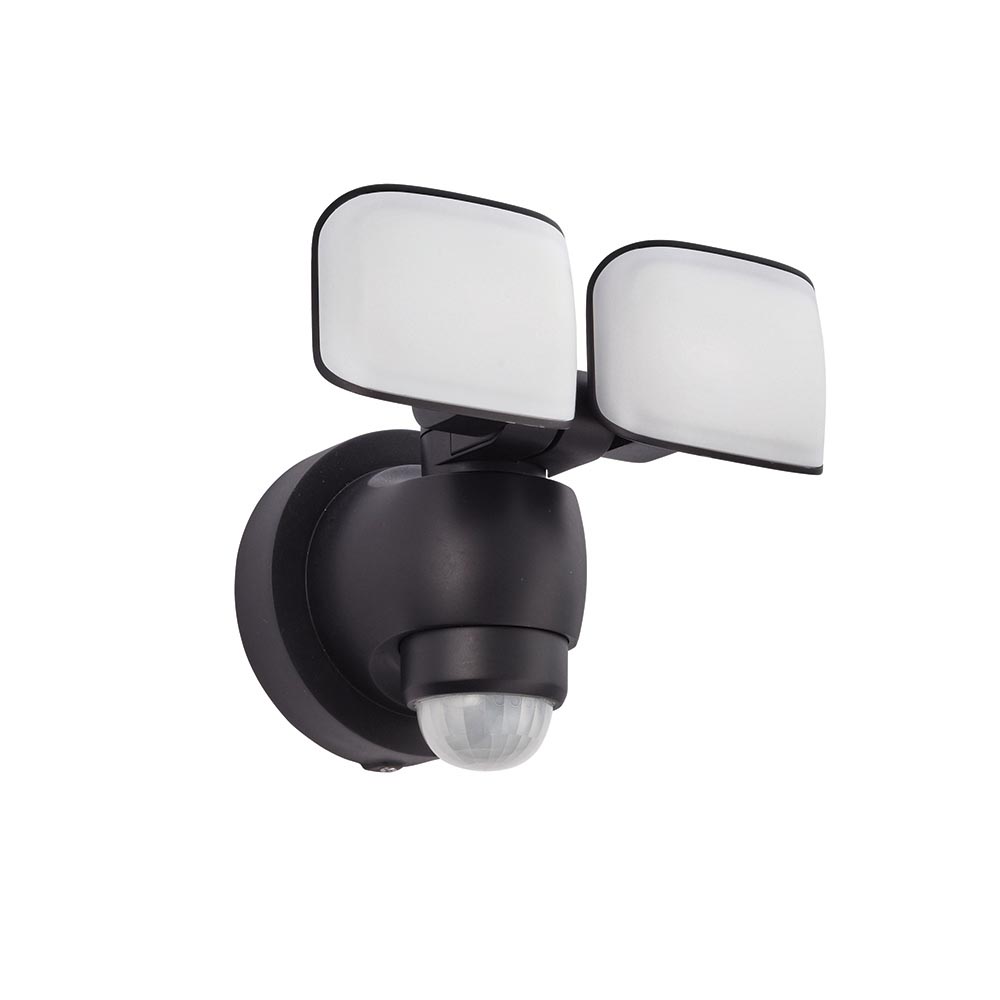

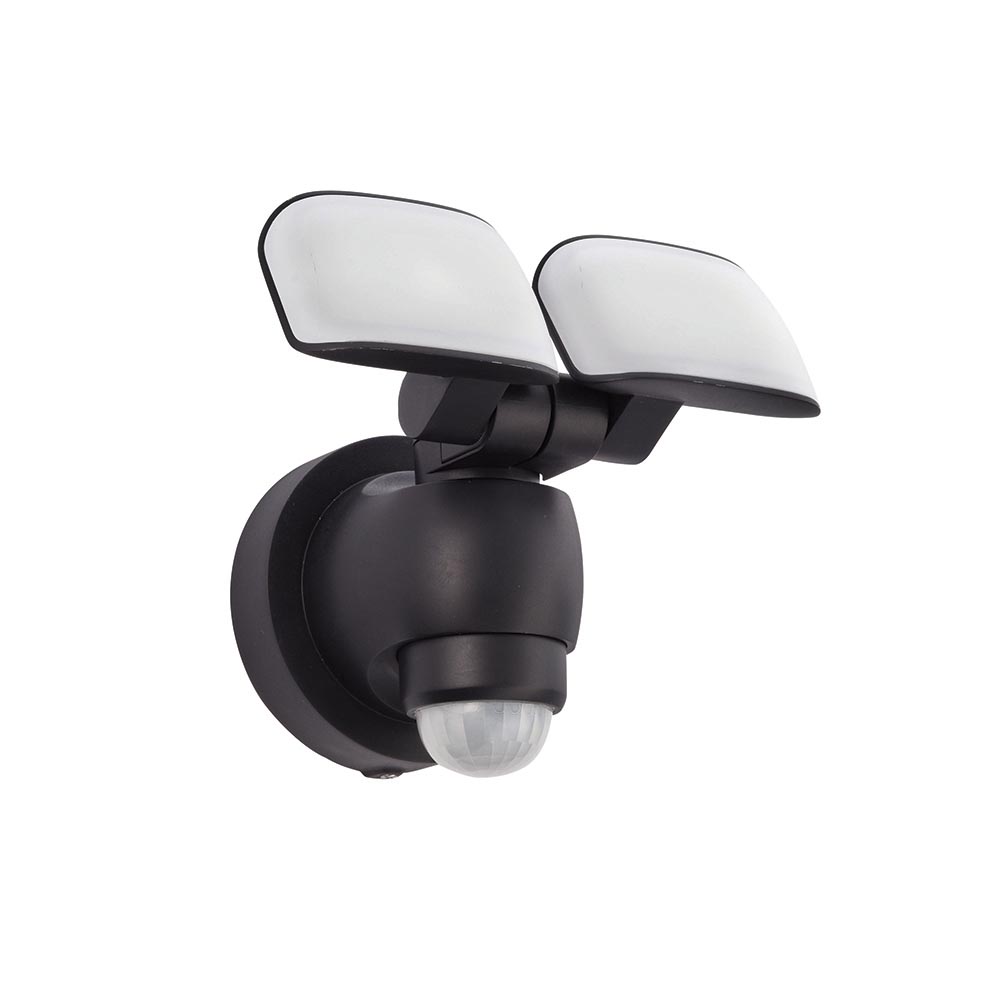

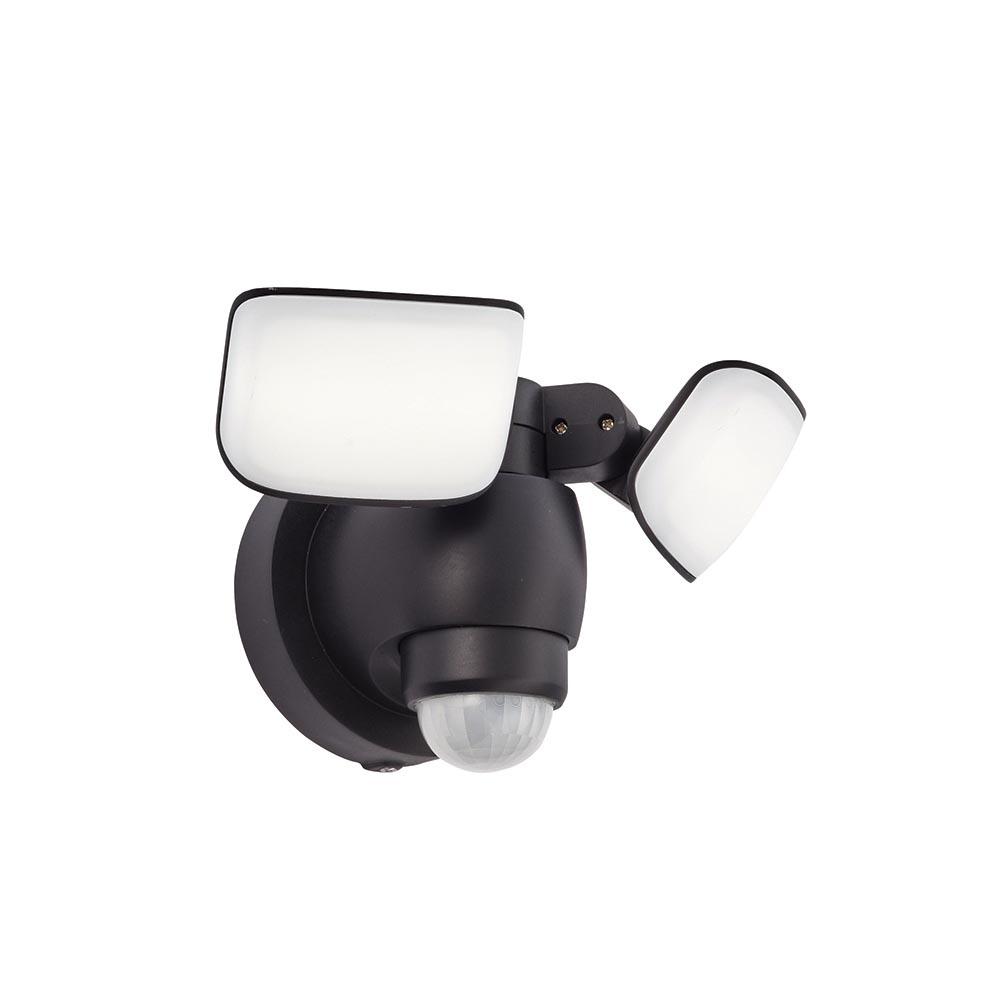

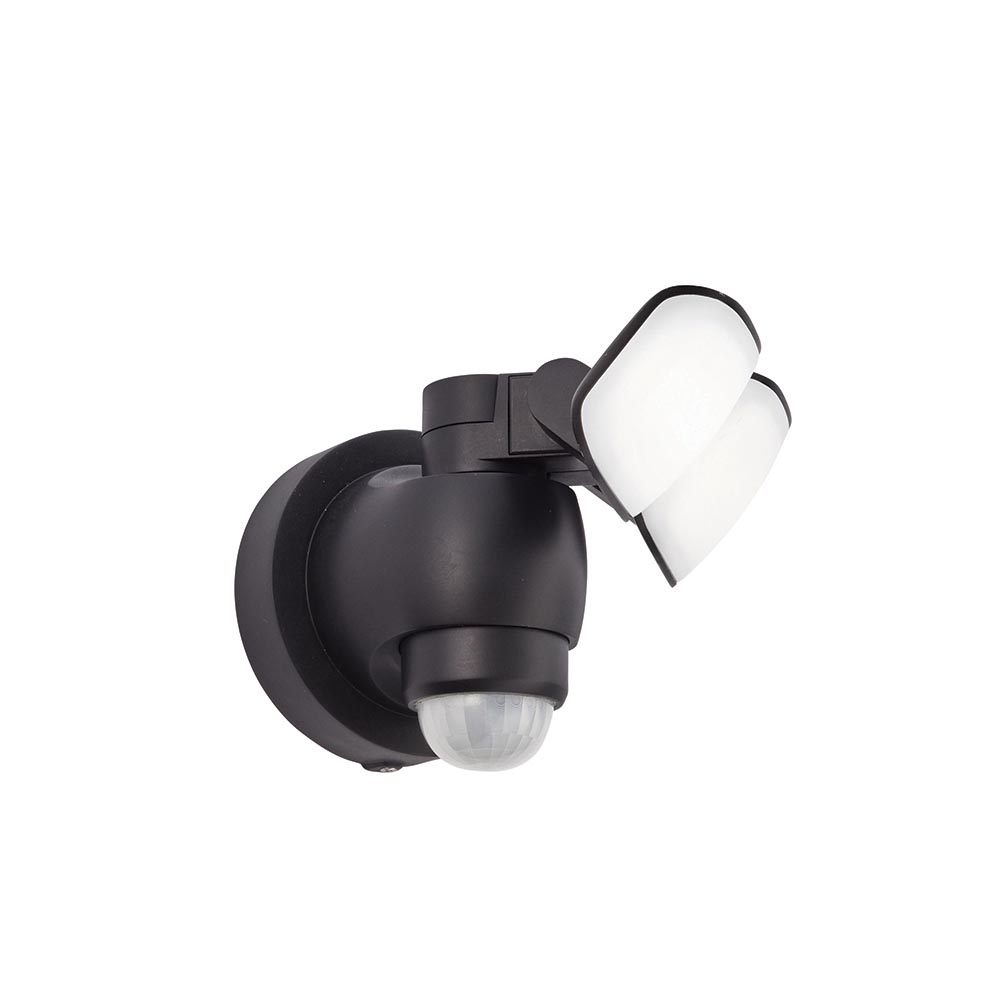

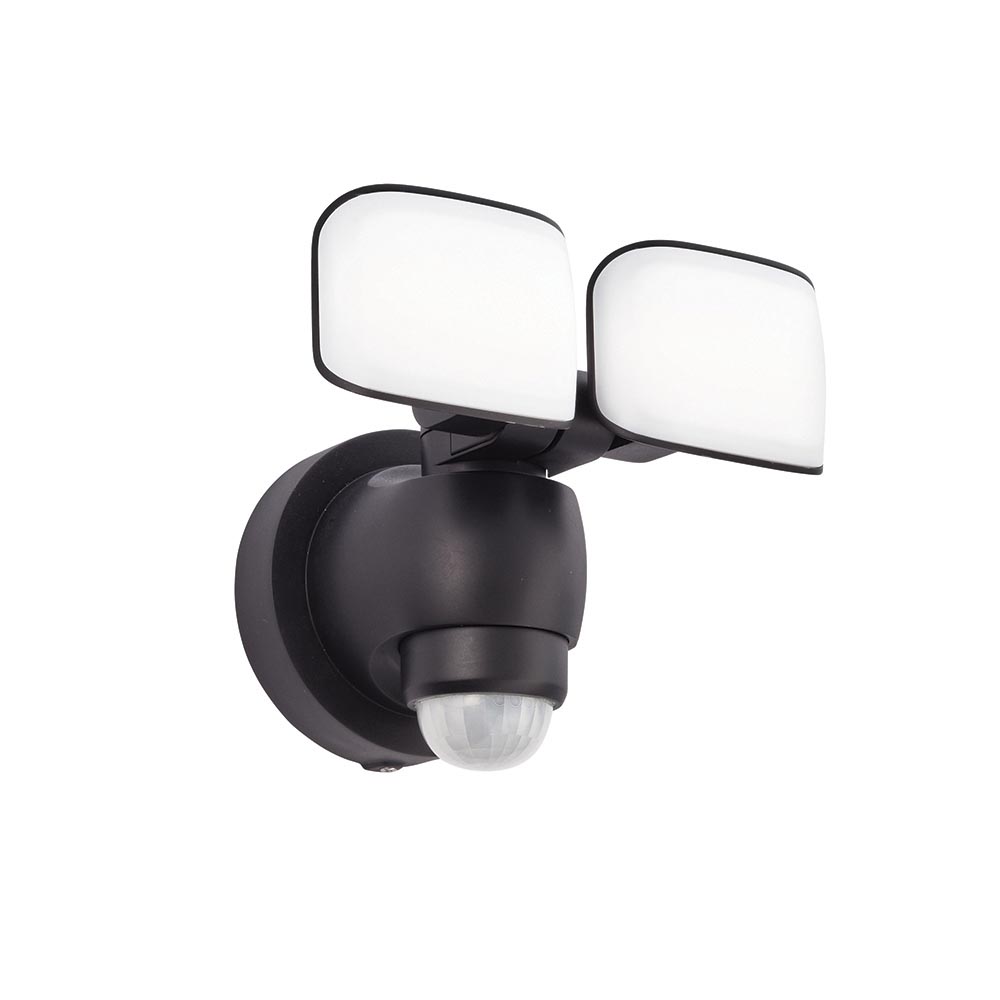

Sentinel CCT IP44 10W

75272
Saxby
75272
UOS: Each
Hide
The Sentinel is a robust IP44 rated, plastic security light with adjustable twin 10W LED heads. Its adjustable PIR sensor makes it the ideal fitting for outdoor areas as it only illuminates when movement is detected. This mains powered version gives a strong, even light and matches the others in the range.
  • Complete with built in Photocell & PIR
  • 180° detection angle, 12m maximum range with a 10 +/- 5 sec - 4 +/- 1 min timer function plus daylight function
  • Matt black & frosted pc
  • Constructed from polycarbonate & die cast aluminium alloy
  • Shipment Carton Qty: 12
Login To Buy

Overview

  • Complete with LED driver
  • 2 x 10W LED module (SMD 2835) CCT (Included)
  • K: 3000/4000/6000 Lm: 1500 Lm/W: 75
  • IP44
  • Proj: 147mm H: 164mm W: 195mm
  • Class 1
  • 2+1YR Extended Warranty
  • Weight: 0.5 Kg

Specification

Colour Finish:
Matt black paint & frosted pc
IP Rating:
44
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification

180° detection angle, 12m maximum range with a 10 +/- 5 sec - 4 +/- 1 min timer function plus daylight function

  • Commodity Code: 9405423990
  • Country of Origin: China


    • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    164
    Unpacked Width (mm):
    195
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588752721
    Packed Height (mm):
    17
    Packed Wid (mm):
    21
    Packed Depth (mm):
    14
    Packed Weight (kg):
    .67

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    12
    Outer Height (mm):
    36.2
    Outer Width (mm):
    44
    Outer Depth (mm):
    44
    Outer Gross Weight (kg):
    9.05

    FAQs

    Other Colours
