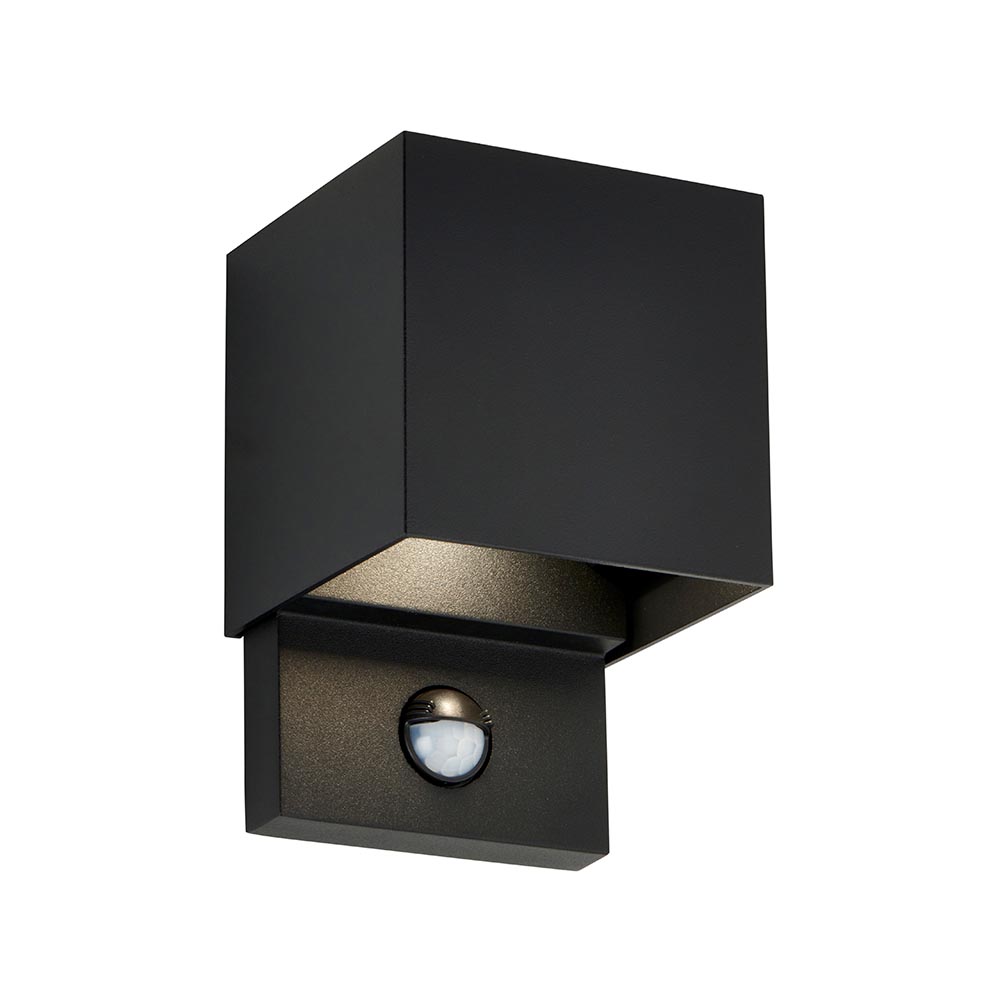

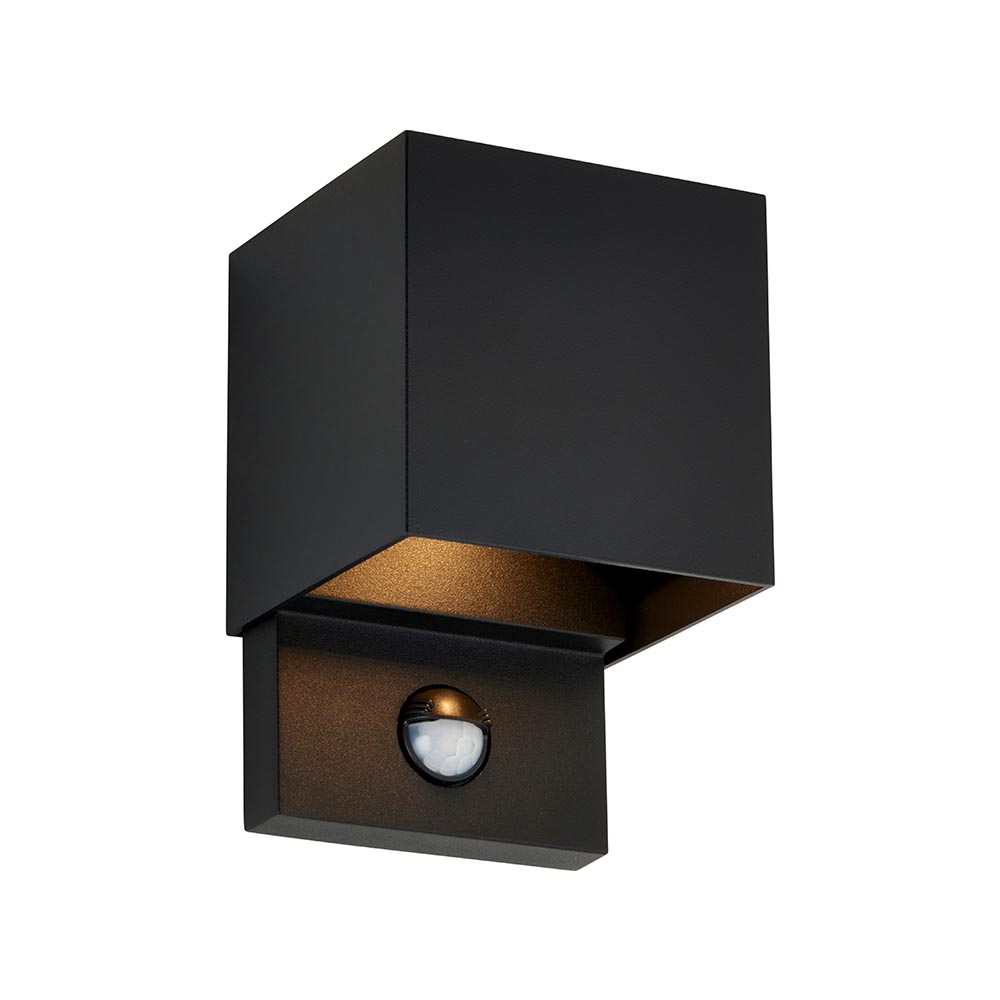

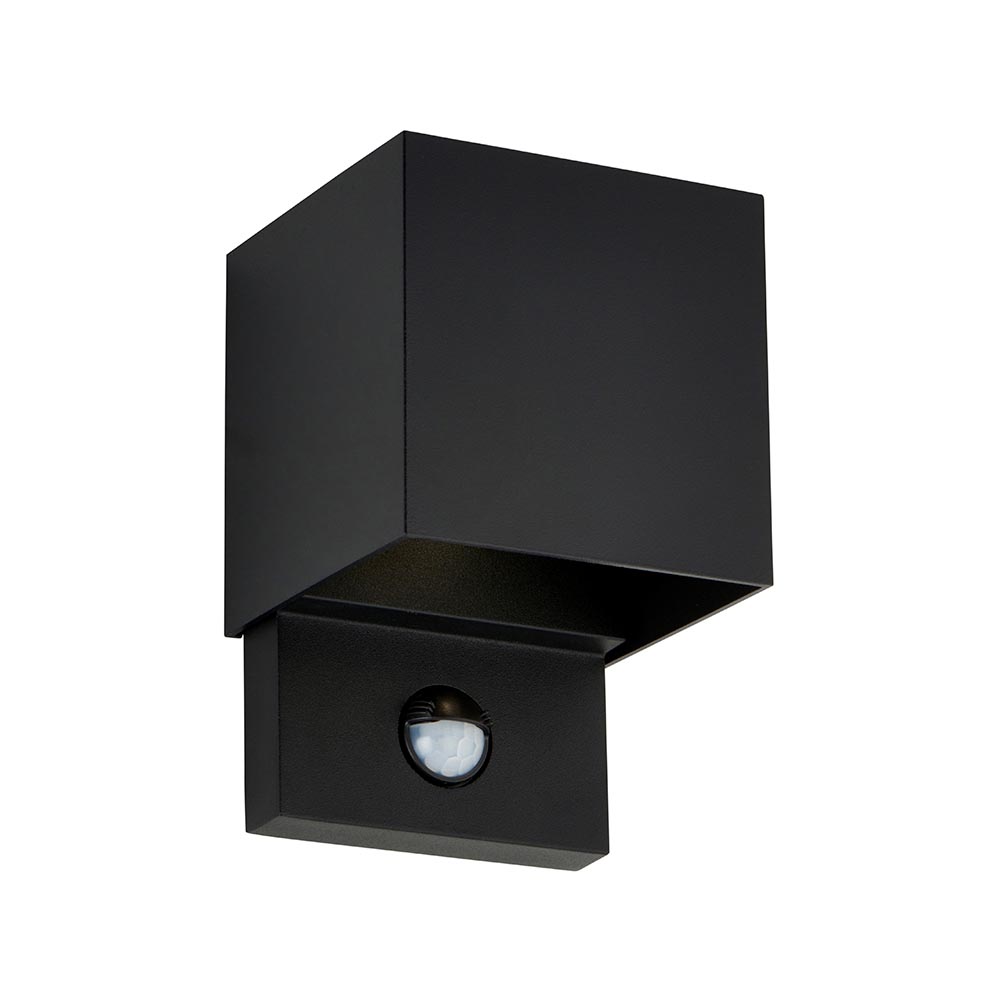

Glover CCT PIR/Photocell IP54 5W - Black

120810
Saxby
120810
UOS: Each
Hide

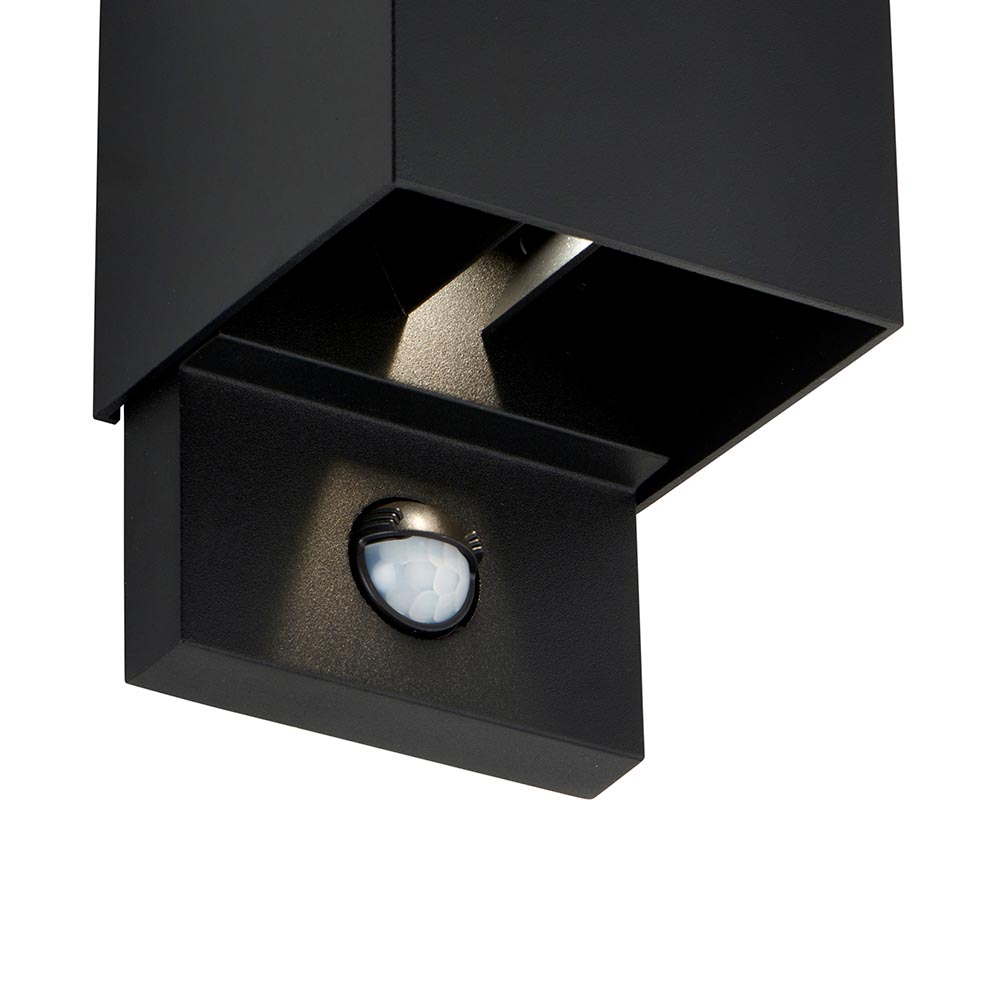

The Glover CCT is an integrated LED wall light with built in PIR and photocell which can be adjusted to ensure precise light projection. Angled shutters allow you to direct or diffuse light to stunning effect. Its stylish, matt black finish means it suits an array of home decors and it is IP54 rated ensuring protection against water intrusion. Comes complete with CCT switch enabling choice of 3000K, 4000K and 6500K colour temperature options.

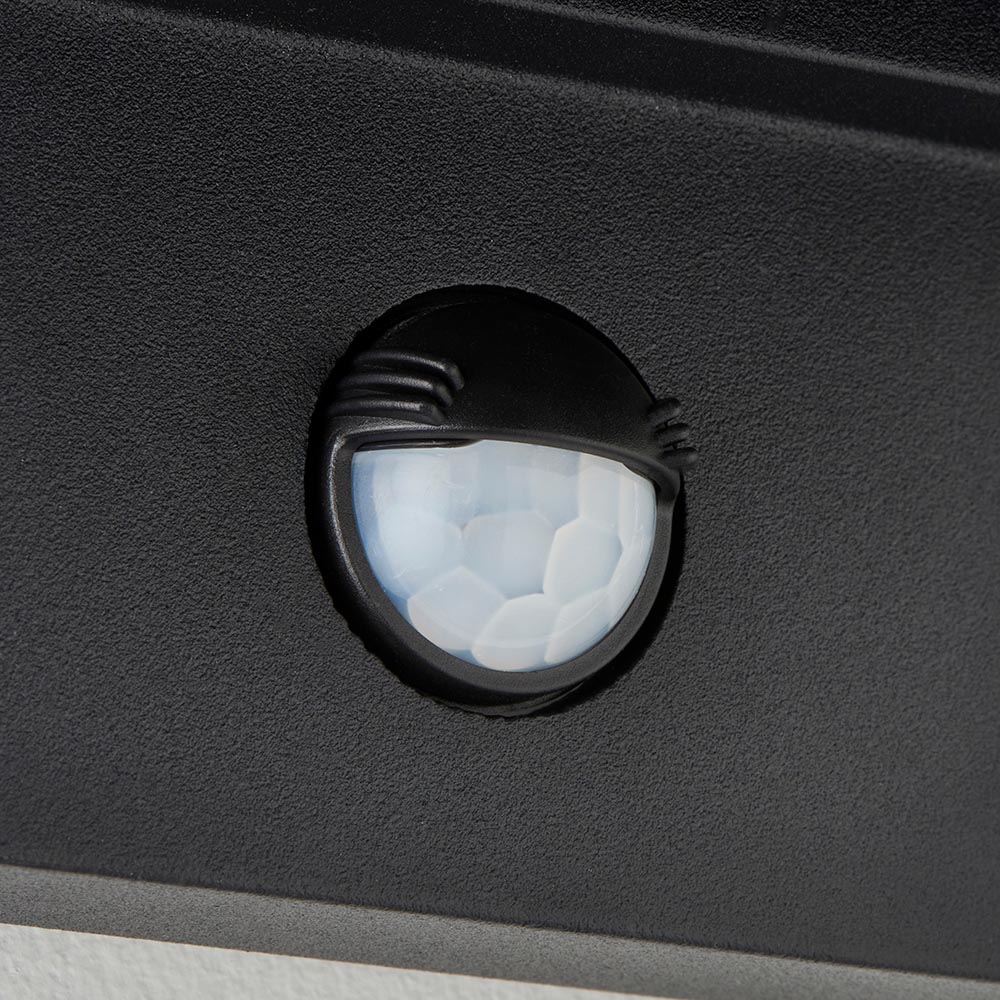

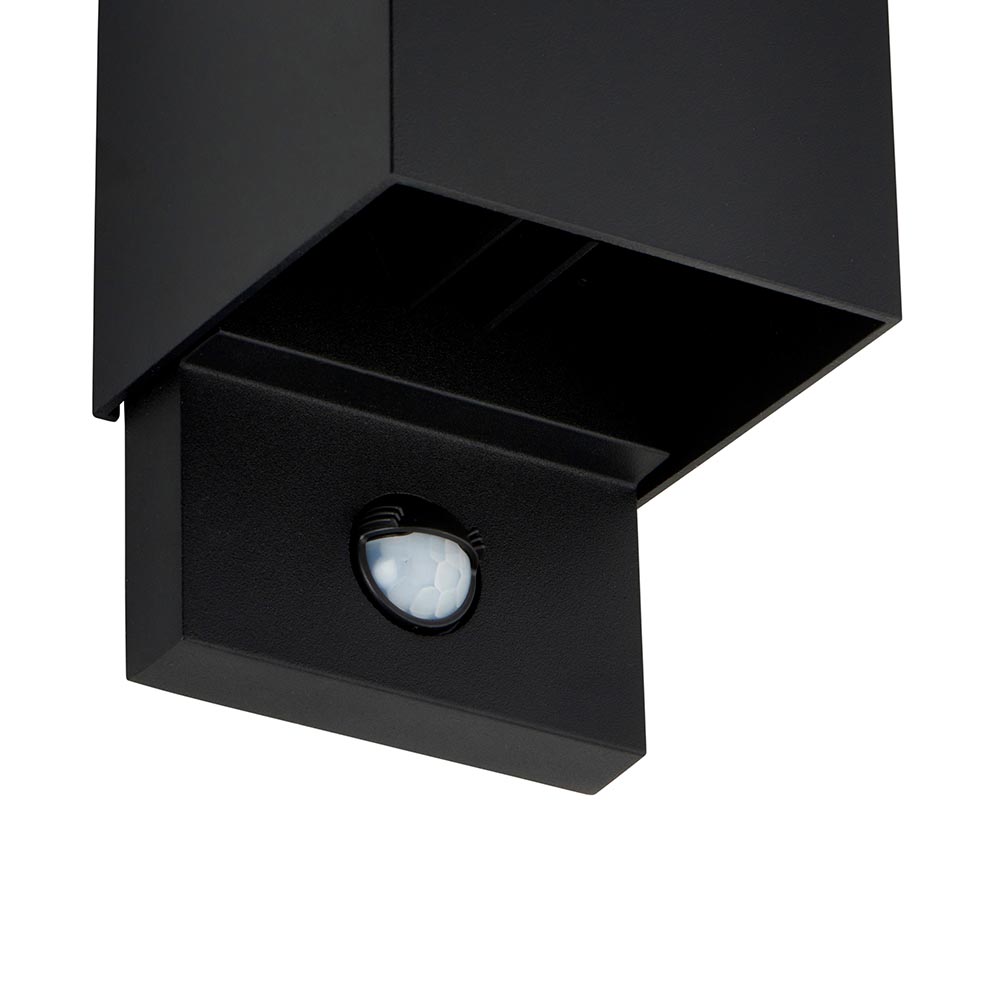

  • Complete with built in Photocell & PIR
  • 120˚ detection angle, 6±2m maximum range with a 10±5 sec - 10±2 min timer function plus photocell function---Adjust LUX to minmum, then by
  • switching the power ON/OFF twice within
  • 3 seconds (Off-On-Off-On), the PIR detector will
  • automatically change into PHOTOCELL MODE from
  • AUTO MODE. It can be adjusted with LUX switching,
  • if adjust to "+" mark direct, lamp will remain on.
  • Textured matt black & clear glass
  • Constructed from aluminium & glass
  • Shipment Carton Qty: 20

Overview

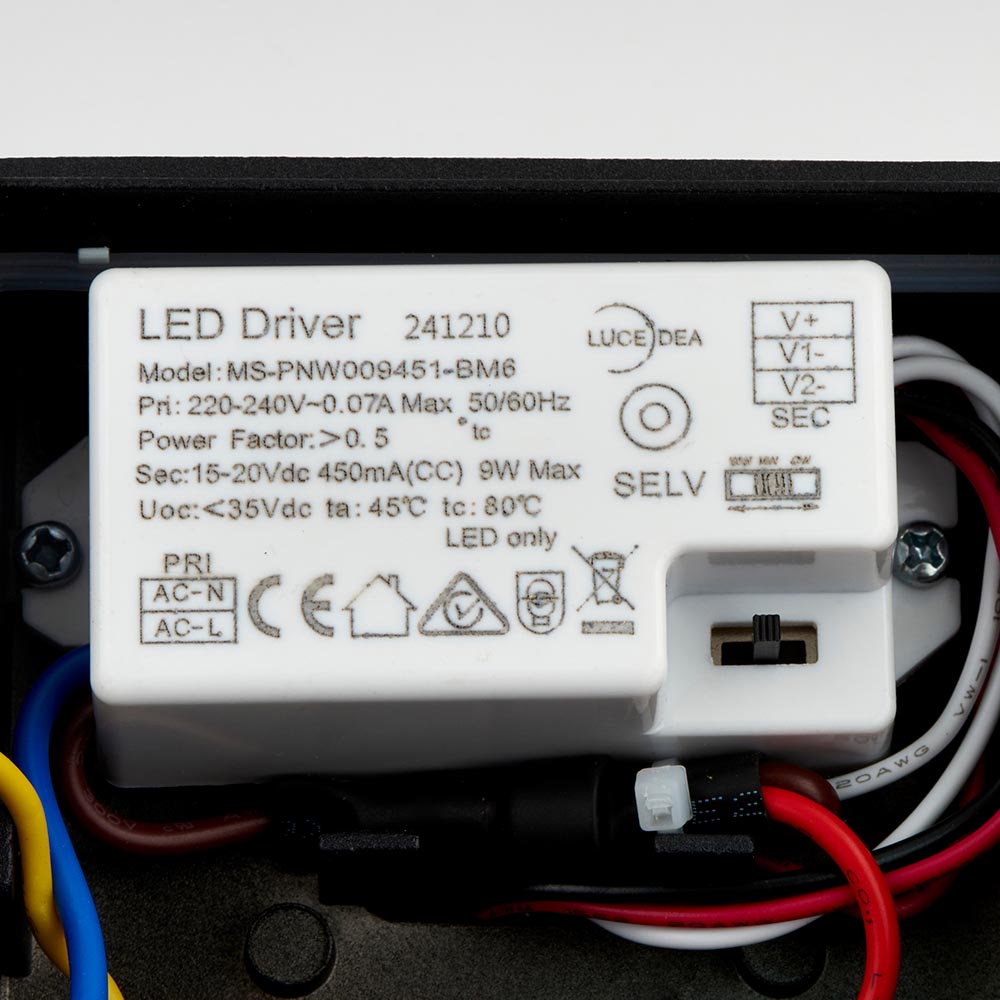

  • Complete with LED driver
  • 2 x 5W LED module (SMD 2835) CCT (Included)
  • K: 3000/4000/6500 Lm: 610 Lm/W: 61
  • IP54
  • Proj: 102mm H: 151mm W: 100mm
  • Class 1
  • 2+1YR Extended Warranty
  • Weight: 0.7 Kg

Specification

Colour Finish:
Textured matt black paint & clear glass
IP Rating:
54
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Specification

120˚ detection angle, 6±2m maximum range with a 10±5 sec - 10±2 min timer function plus photocell function---Adjust LUX to minmum, then by
switching the power ON/OFF twice within
3 seconds (Off-On-Off-On), the PIR detector will
automatically change into PHOTOCELL MODE from
AUTO MODE. It can be adjusted with LUX switching,
if adjust to "+" mark direct, lamp will remain on.

  • Commodity Code: 9405423990
  • Country of Origin:


  • Technical Datasheet

    Dimensions

    Unpacked Height (mm):
    151
    Unpacked Width (mm):
    100
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588208105
    Packed Height (mm):
    17
    Packed Wid (mm):
    10.5
    Packed Depth (mm):
    10.6
    Packed Weight (kg):
    .72

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    20
    Outer Height (mm):
    55.5
    Outer Width (mm):
    23
    Outer Depth (mm):
    34
    Outer Gross Weight (kg):
    15.5
