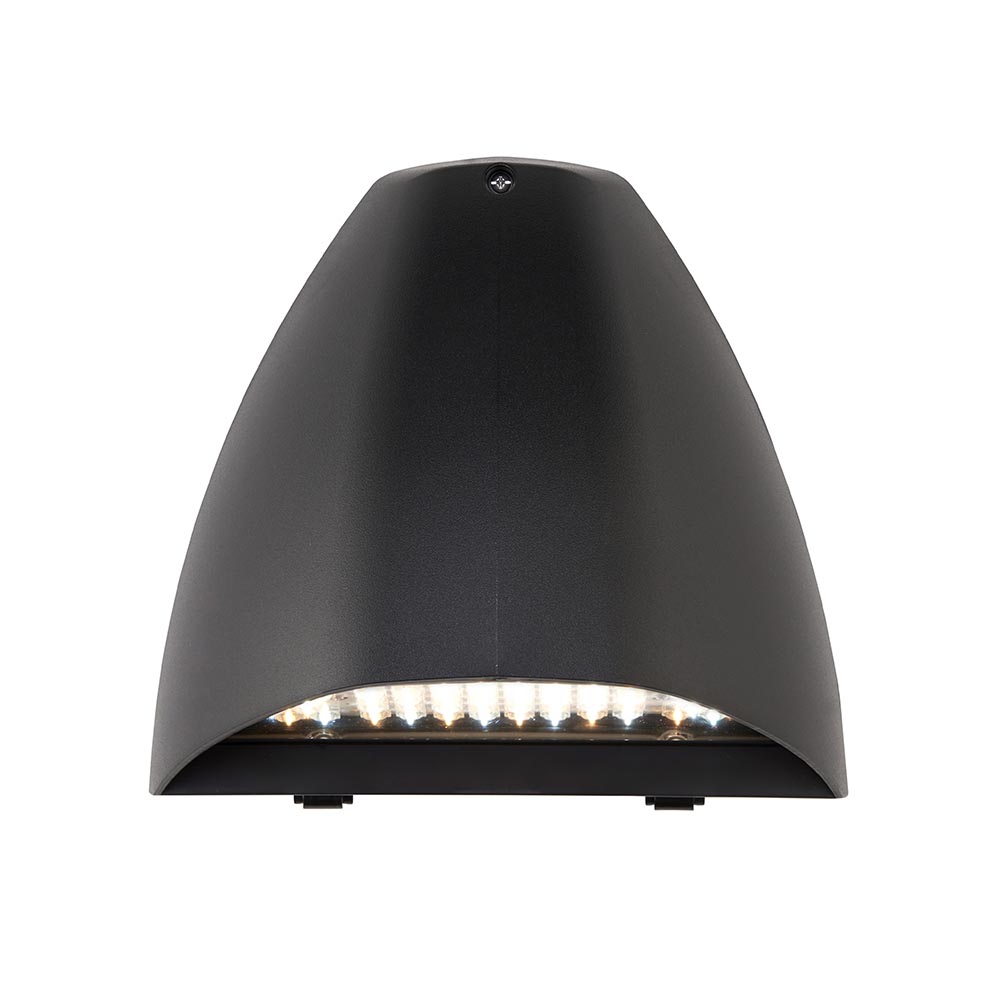

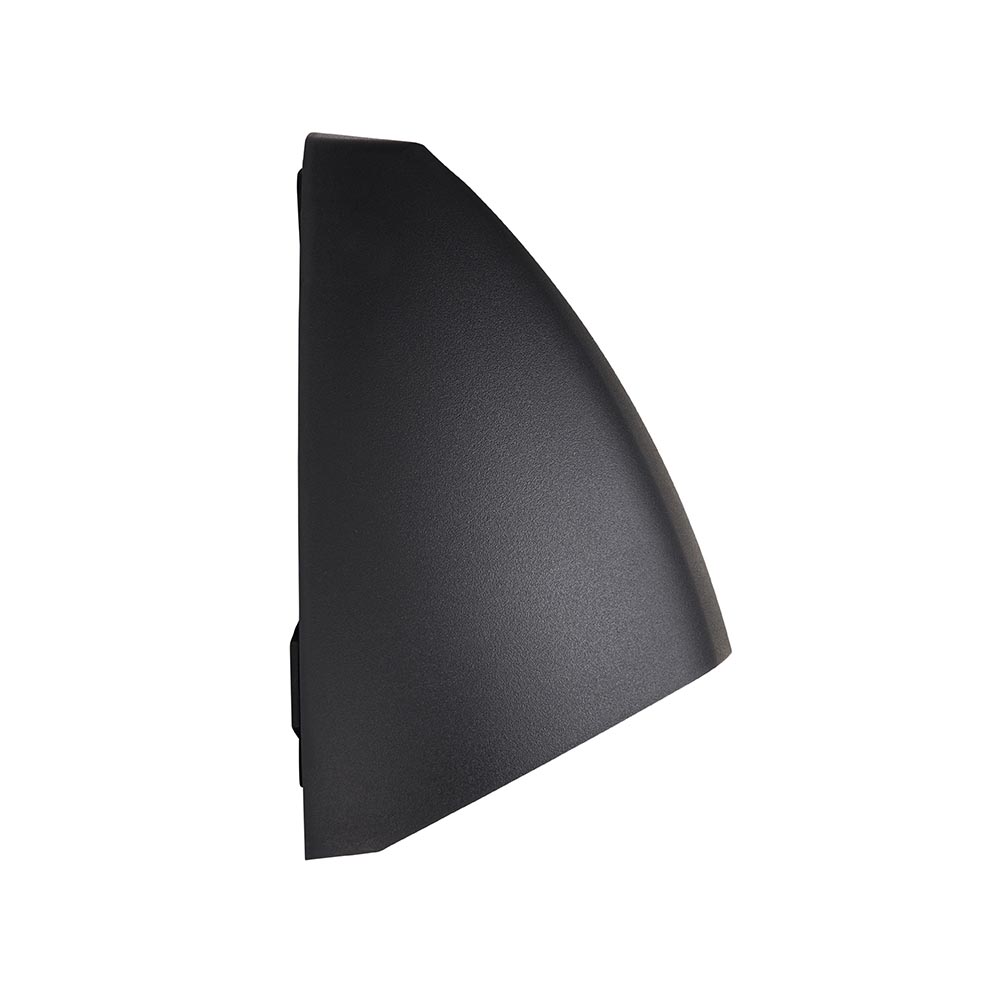

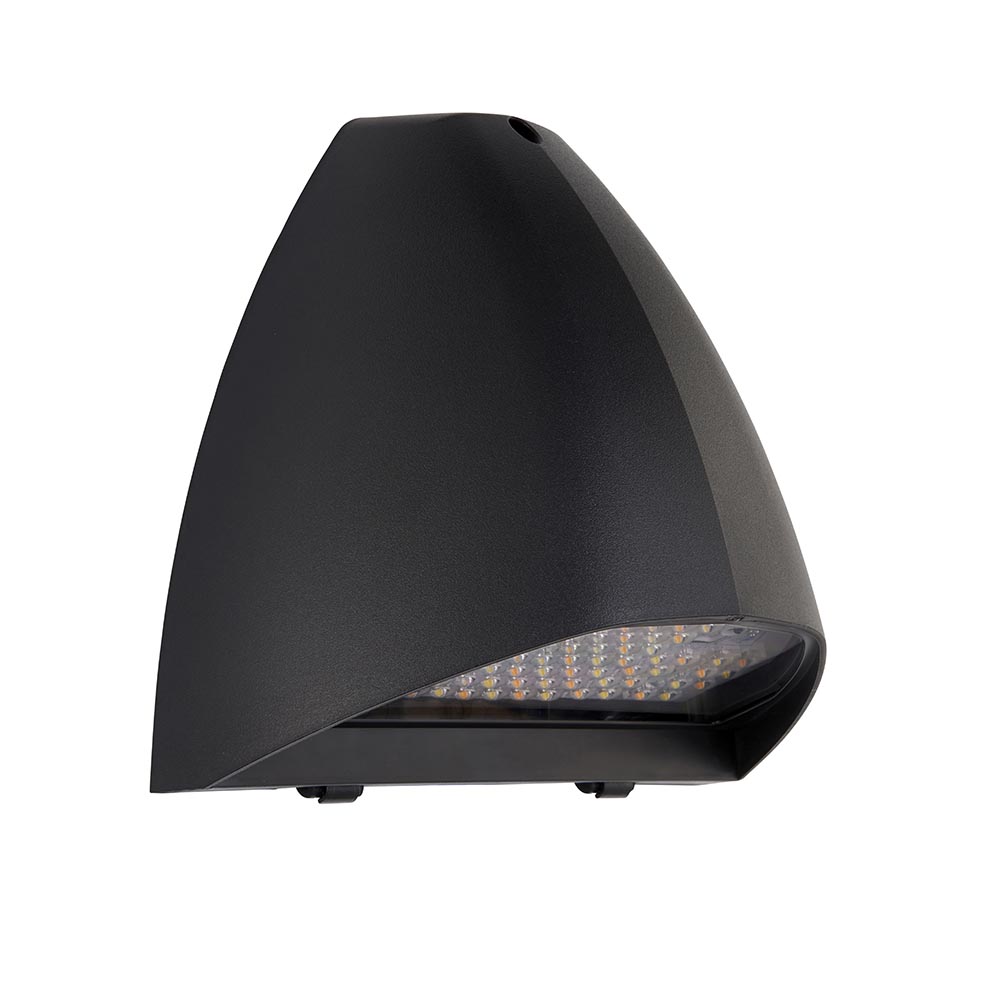

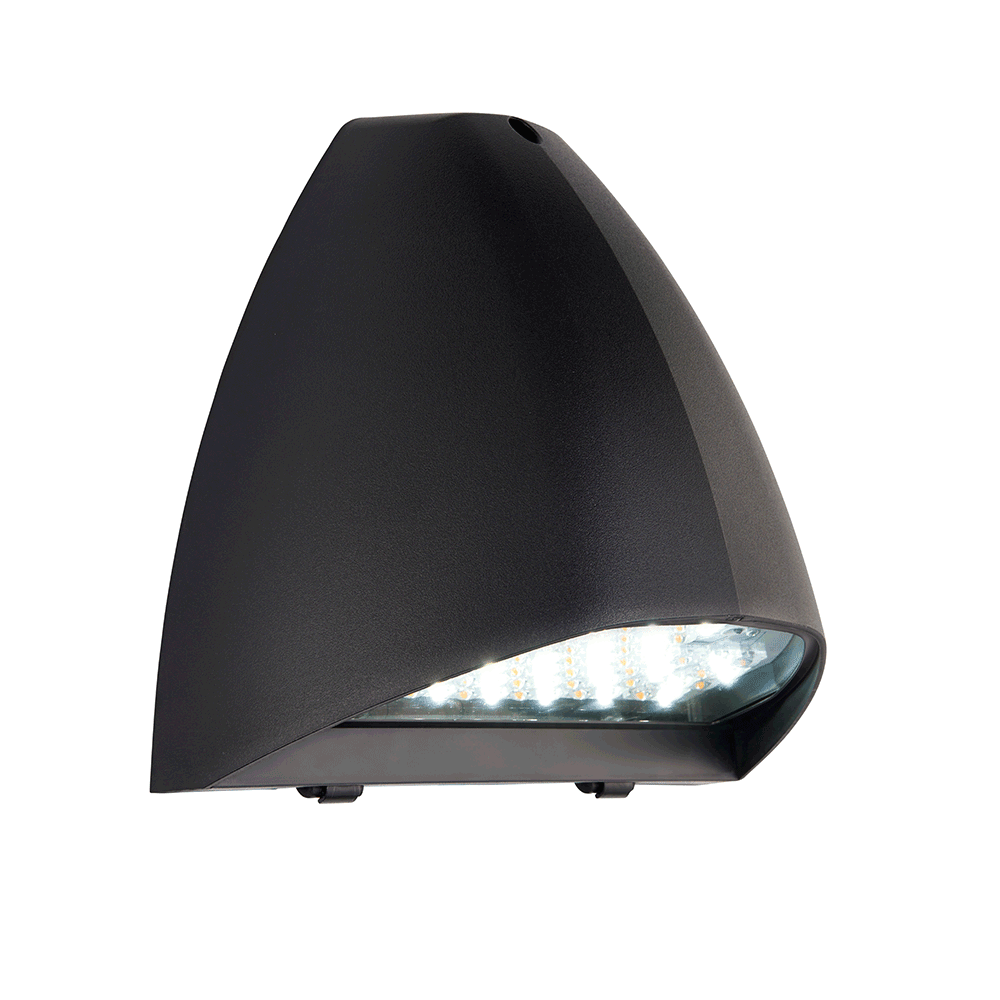

Forge CCT Photocell Wall Pack 8W/14W

121022
Saxby
  • Save As PDF
121022
UOS: Each
Hide

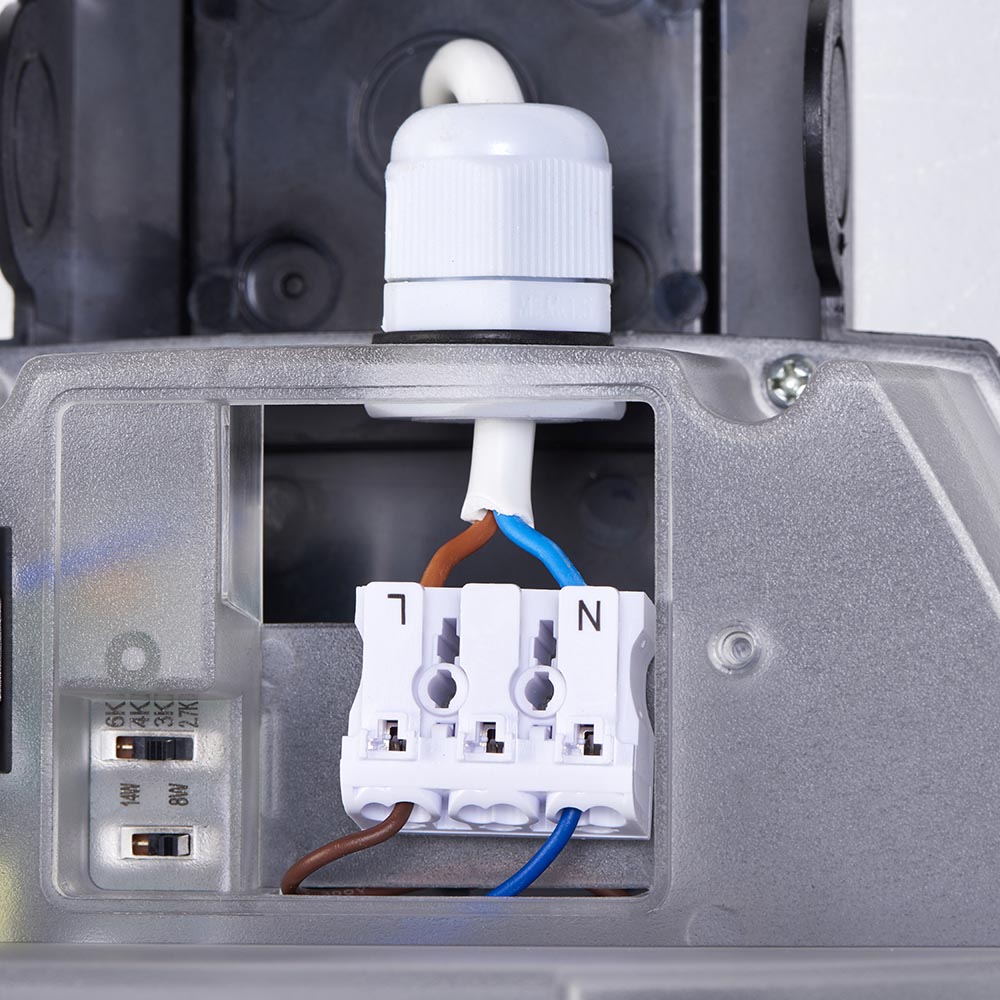

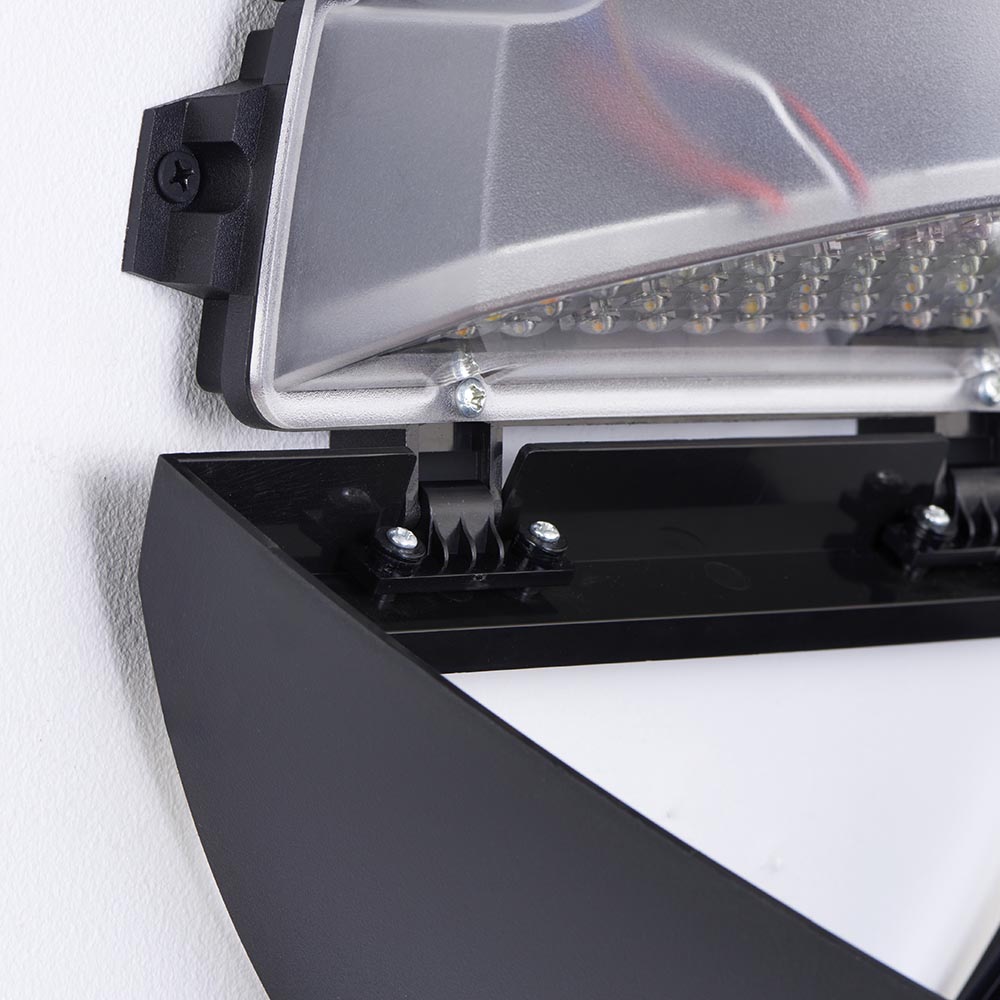

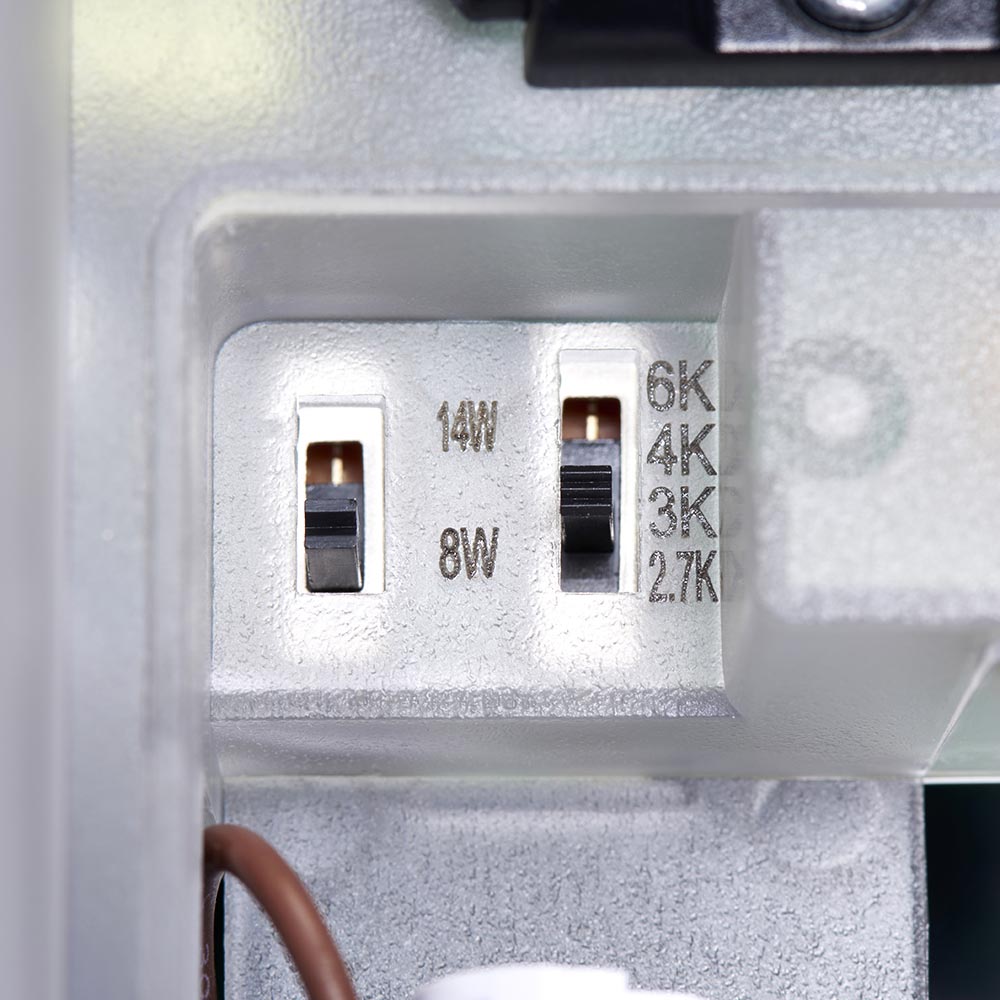

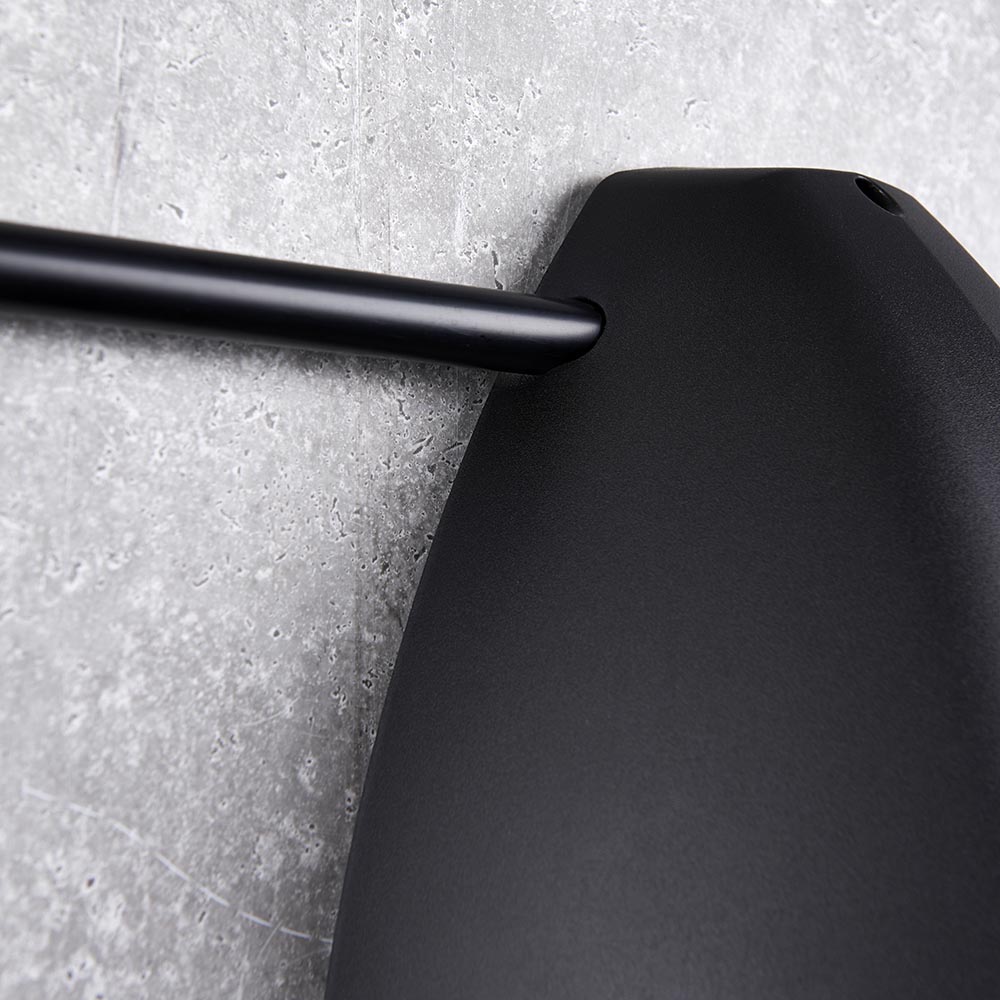

Forge is a robust and versatile 4CCT exterior wall pack designed for performance and ease of installation. Featuring loop-in/loop-out wiring, a push-fit terminal block, dual wattage and four colour switches and 20mm conduit entry points, it offers maximum flexibility straight out of the box. It also boasts durable IP65 and IK10 rated construction and a wide 120° beam angle. Available in two sizes with optional photocell functionality, it's the ideal solution for lighting pathways, perimeters, and commercial exteriors.

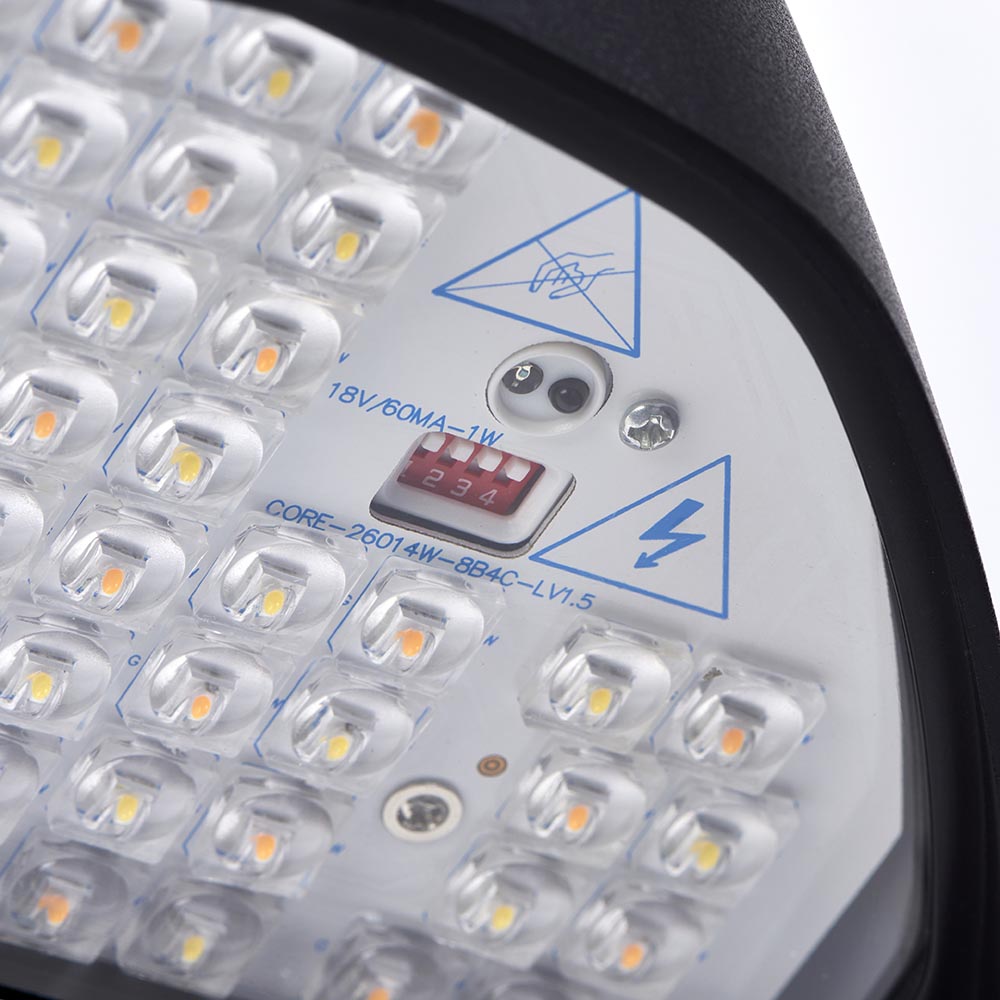

  • Complete with built in Photocell
  • Fully Adjustable 5 - 400lux
  • Matt black textured & clear pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 4

Overview

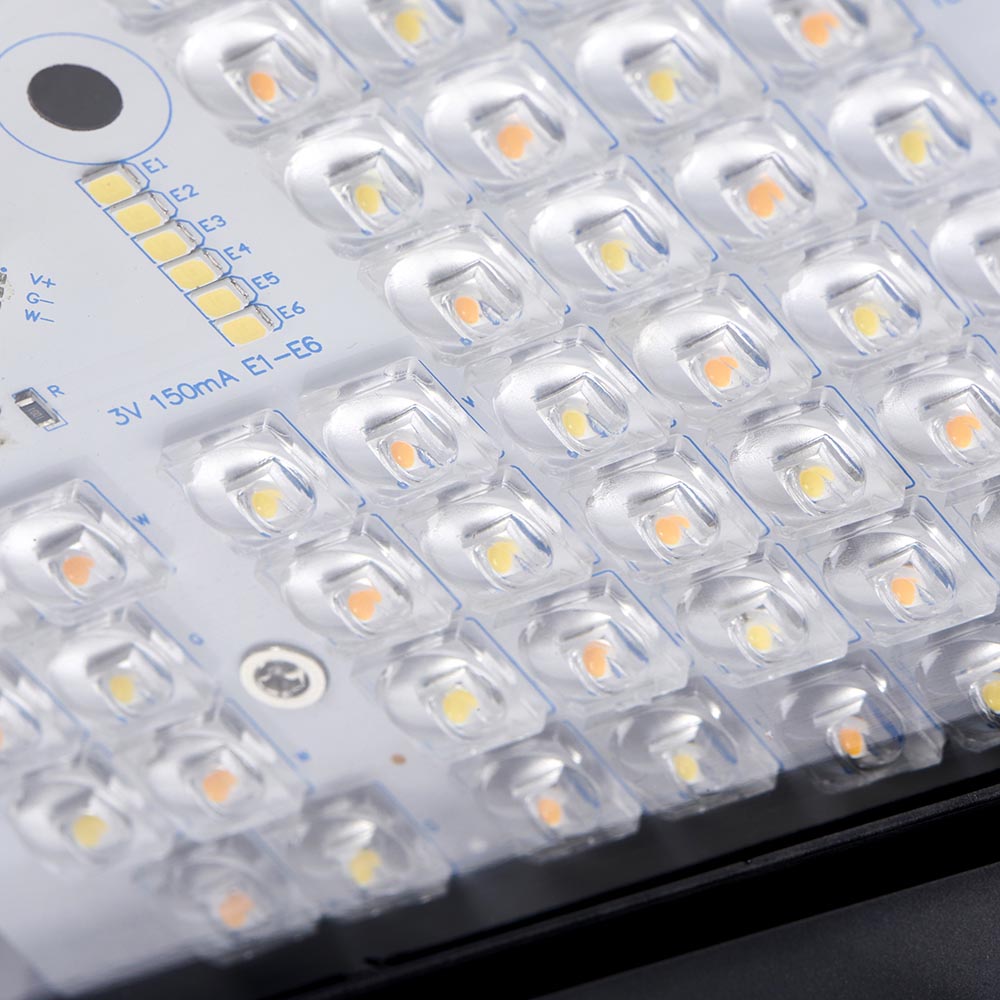

  • 14/8W LED module CCT
  • K: 2700/3000/4000/6000 Lm: 1890/1080
  • IP65
  • Proj: 134mm H: 232mm W: 251mm
  • Class 2
  • Specification

    Colour Finish:
    Matt black textured & clear pc
    IP Rating:
    65
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification

    Fully Adjustable 5 - 400lux

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    232
    Unpacked Width (mm):
    251
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588210221
    Packed Height (mm):
    26.5
    Packed Wid (mm):
    22
    Packed Depth (mm):
    14.5
    Packed Weight (kg):
    .96

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    4
    Outer Height (mm):
    46
    Outer Width (mm):
    31
    Outer Depth (mm):
    28.5
    Outer Gross Weight (kg):
    4.5

    FAQs
