Linus CCT Linear 30W/50W - Matt White

121113
Saxby
  • Save As PDF
121113
UOS: Each
Hide

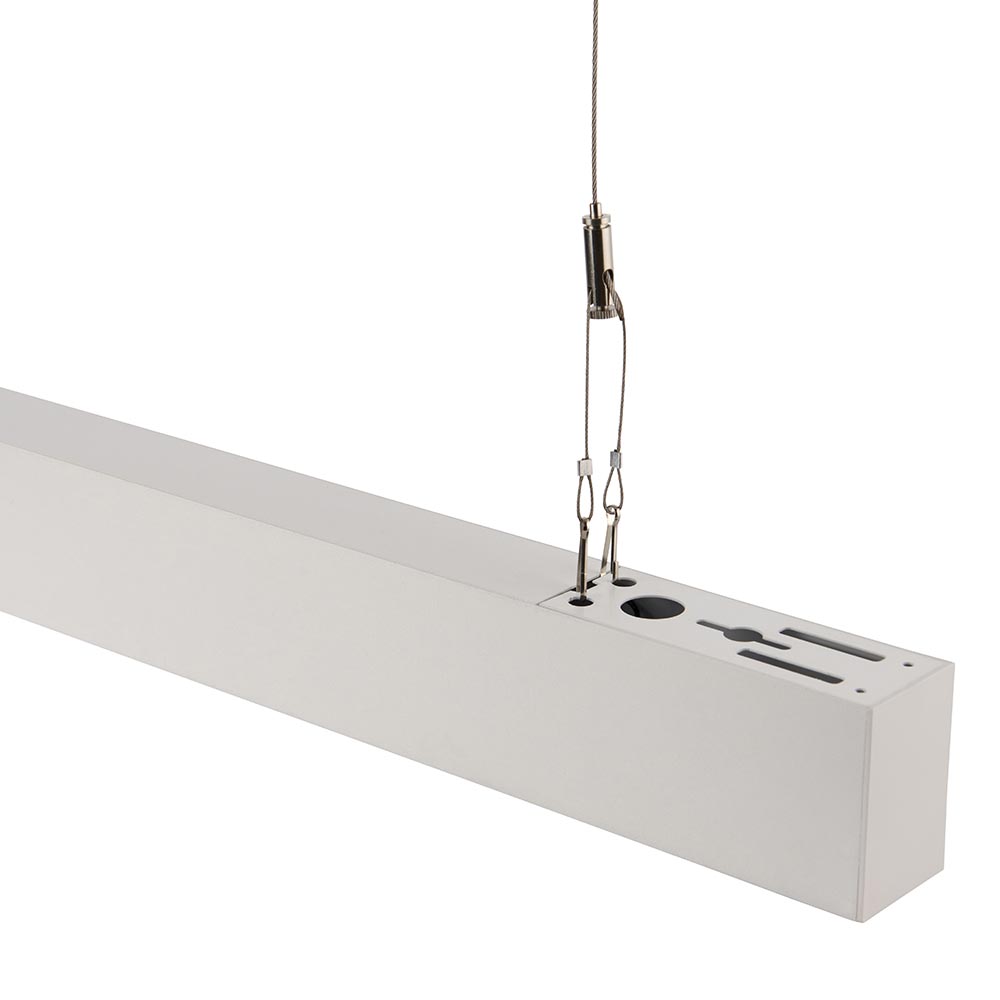

Linus offers the flexibility to suit any modern commercial environment and designed for both suspended and surface-mounted installations. Available in black or white, it features a Dual-Wattage switch (30W / 50W) and CCT switch (3000K / 4000K / 6000K), giving you complete control over both brightness and colour temperature. With an output of upto 5000 lumens at 100lm/W, Linus delivers bright, efficient illumination. It comes with a 2m suspension kit for precise positioning and can be easily linked using connectors in the range perfect for creating longer runs in offices, retail spaces, and contemporary work environments.
  • Matt white & opal pc
  • Constructed from aluminium & polycarbonate
  • Shipment Carton Qty: 6
Colour
: White
Matt Black
White

Overview

  • Wattage selectable 30W/50W LED CCT
  • K: 3000/4000/6000 Lm:3000/ 5000 Lm/W: 100
  • H: 68.4-2000mm L: 1500mm W: 45mm
  • Class 1
  • DALI versions available on request
  • Specification

    Colour Finish:
    Matt white paint & opal pc
    IP Rating:
    20
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    45
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588211136
    Packed Height (mm):
    158.5
    Packed Wid (mm):
    5
    Packed Depth (mm):
    7.3
    Packed Weight (kg):
    1.83

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    6
    Outer Height (mm):
    160
    Outer Width (mm):
    17
    Outer Depth (mm):
    17
    Outer Gross Weight (kg):
    12
