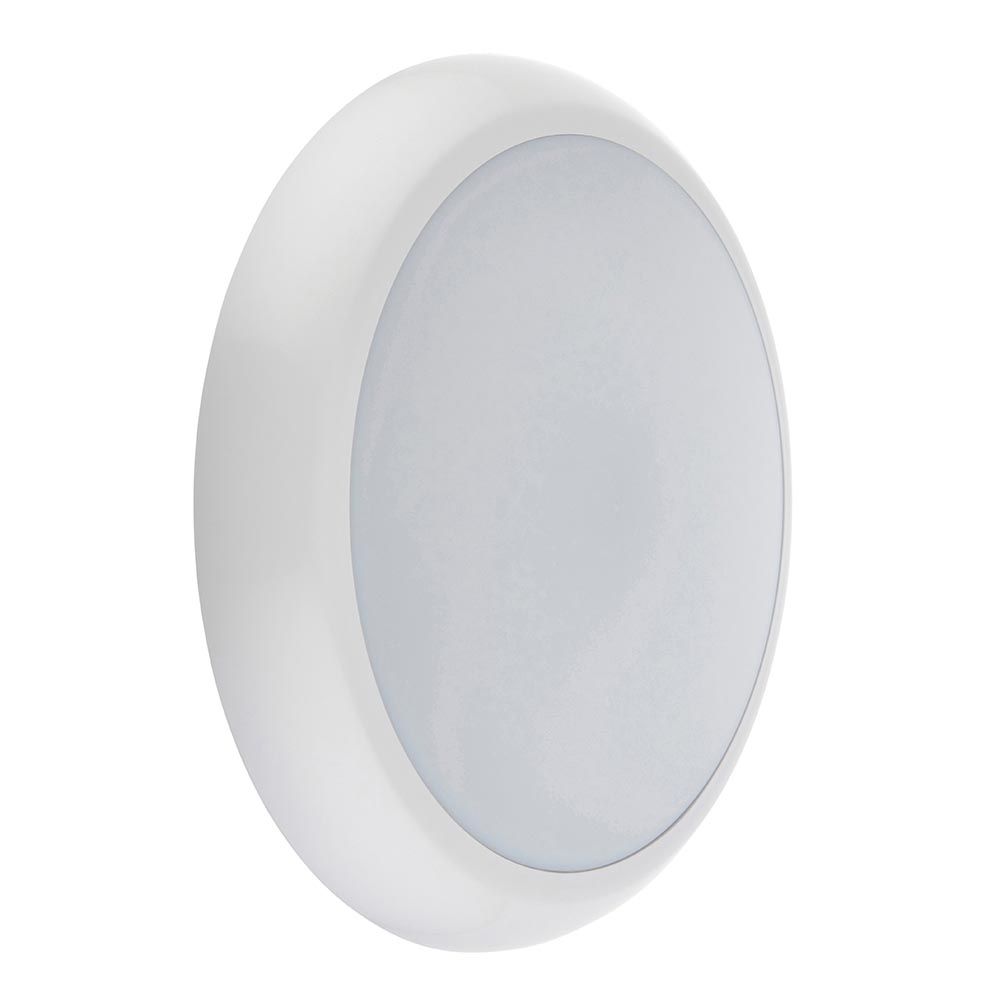

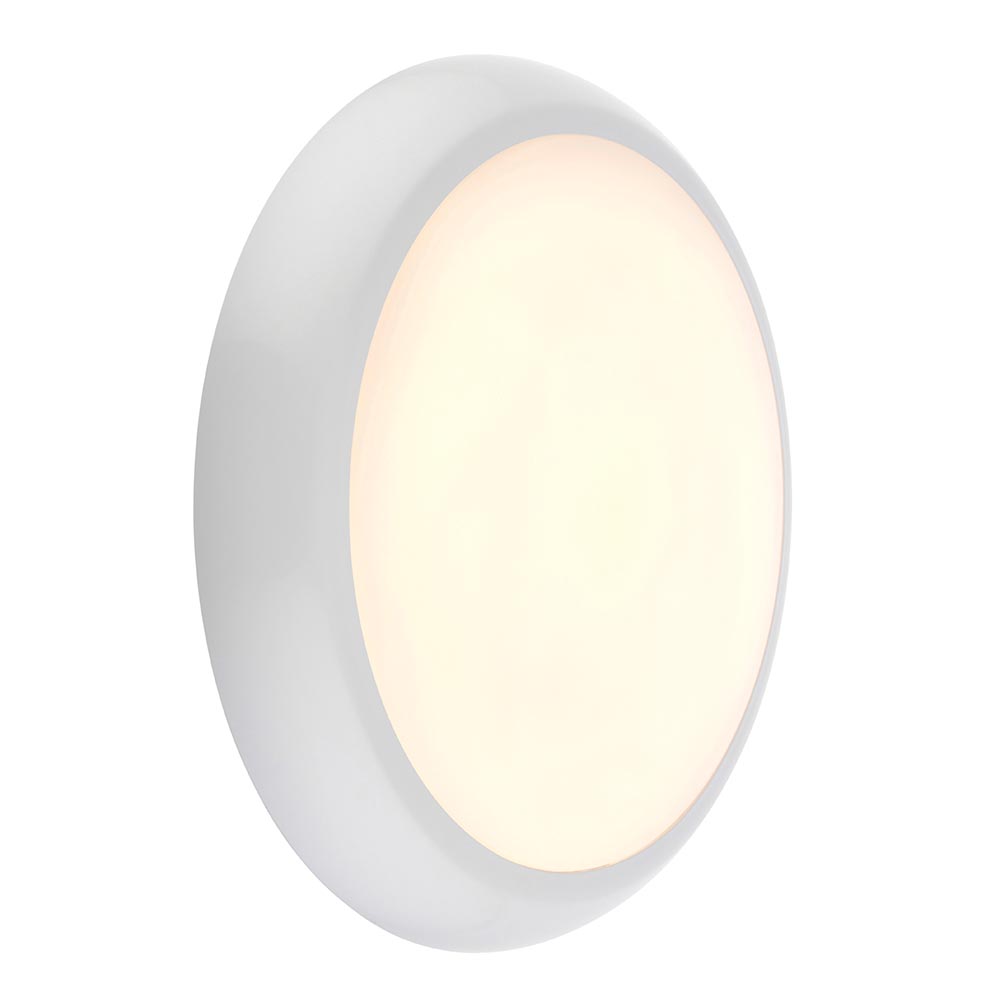

Core CCT Tri Wattage Bulkhead Microwave

110966
Saxby
110966
UOS: Each
Hide
The new Core CCT bulkhead from Saxby covers multiple wattages; 8W/12W/15W and temperature requirements in one unit. Available in Standard, Emergency, and Microwave variants. Supplied with white bezel as standard with chrome and black options available. The twist fast-fit gear tray, and push-fit connector makes it perfect for efficient, hassle-free installation. The IP65, slim profile and IK08 rating further ensure it is robust enough for public spaces indoors and outdoors.
  • Complete with built in Microwave sensor
  • 360 /150˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 1.5m mounted on the wall
  • Gloss white & opal pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 10

Overview

  • Complete with LED driver
  • 15/12/8W LED module CCT

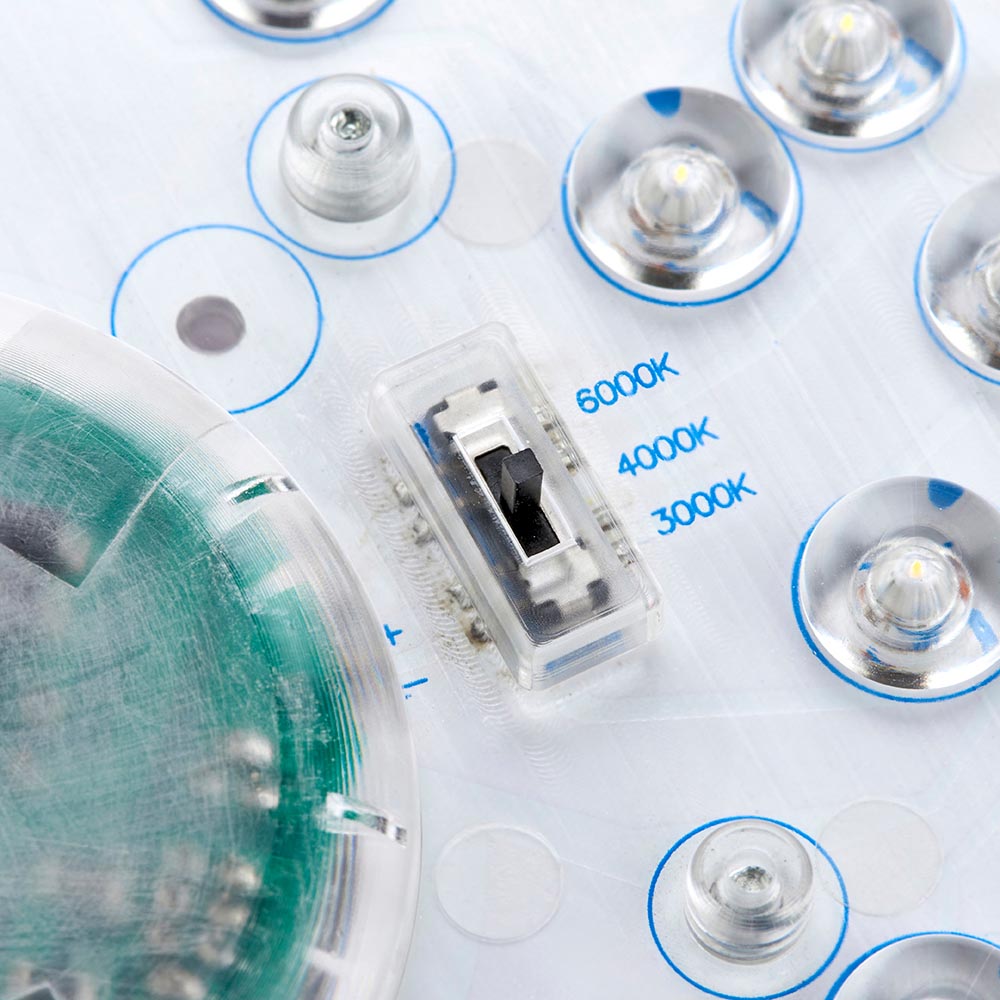

  • K: 3000/4000/6000 Lm: 1500/1200/800 Lm/W: 100
  • IP65

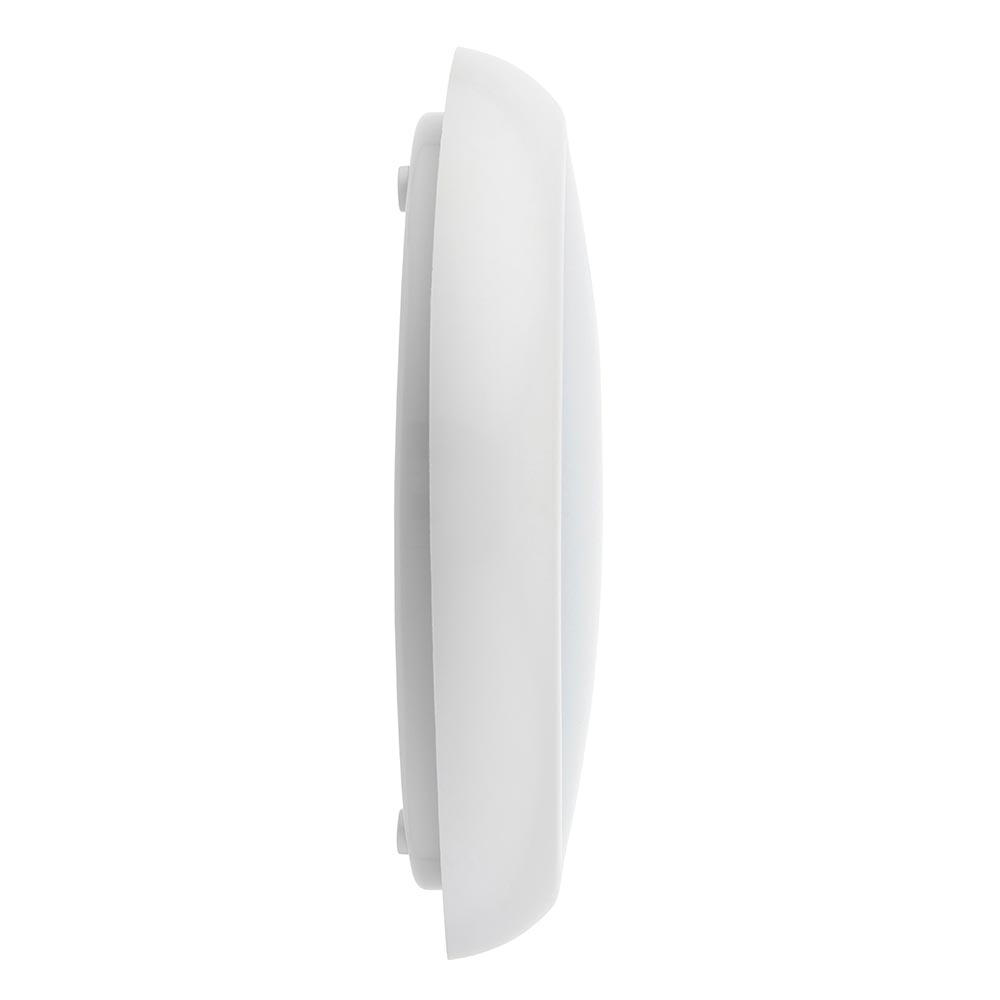

  • Proj: 66mm Dia: 305mm
  • Class 2
  • MW with Master function (Please refer to IM for details)
  • Specification

    Colour Finish:
    Gloss white & opal pc
    IP Rating:
    65
    Operating Voltage:
    220-240V
    Commodity Code:
    9405423990
    Country Of Origin:
    China

    Documents

    Specification

    360 /150˚ detection angle, 2 to 50lux sensitivity, 10%(1 Meter) to 100% adjustable range with a 5 sec - 30 min timer function, Max. (diameter x height): 6m X 3m mounted on the ceiling, and Max. (Length x Height): 12m X 1.5m mounted on the wall

  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    No Width
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588109662
    Packed Height (mm):
    7
    Packed Wid (mm):
    31
    Packed Depth (mm):
    31
    Packed Weight (kg):
    .75

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    10
    Outer Height (mm):
    63.5
    Outer Width (mm):
    32.5
    Outer Depth (mm):
    37
    Outer Gross Weight (kg):
    9
