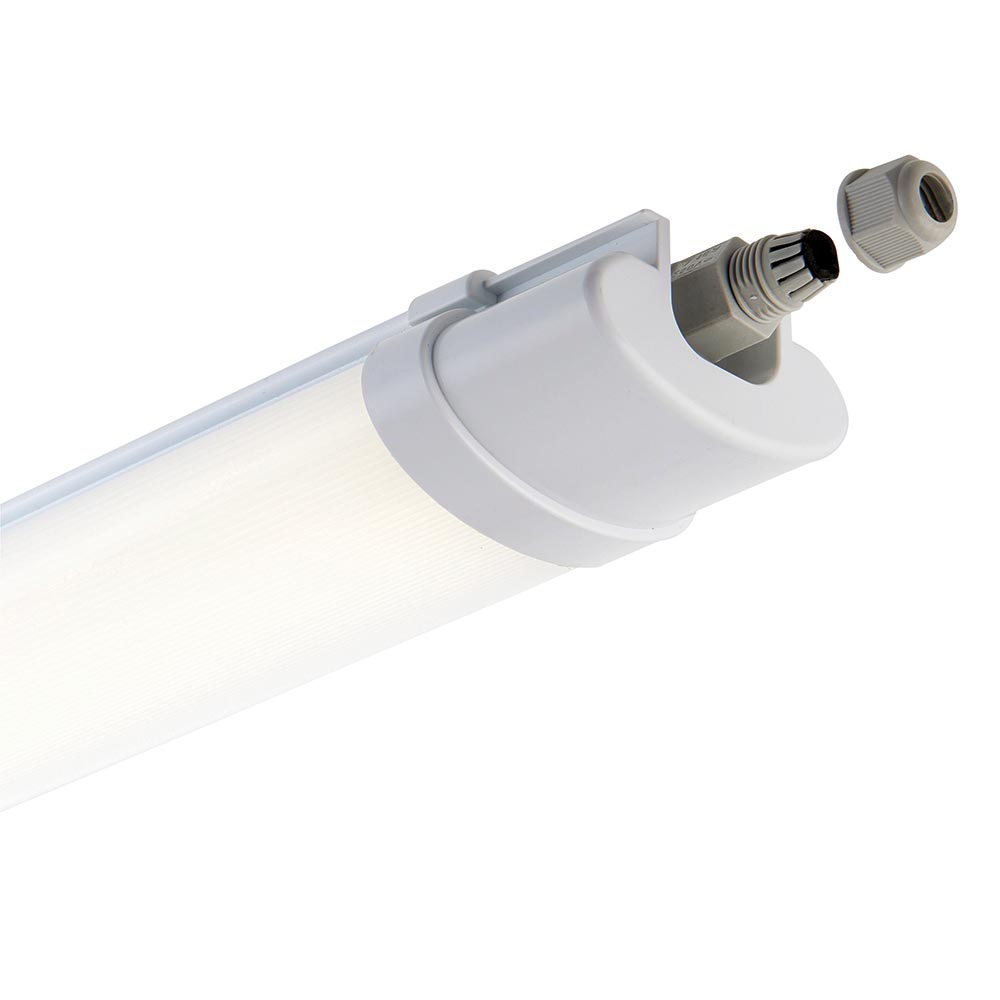

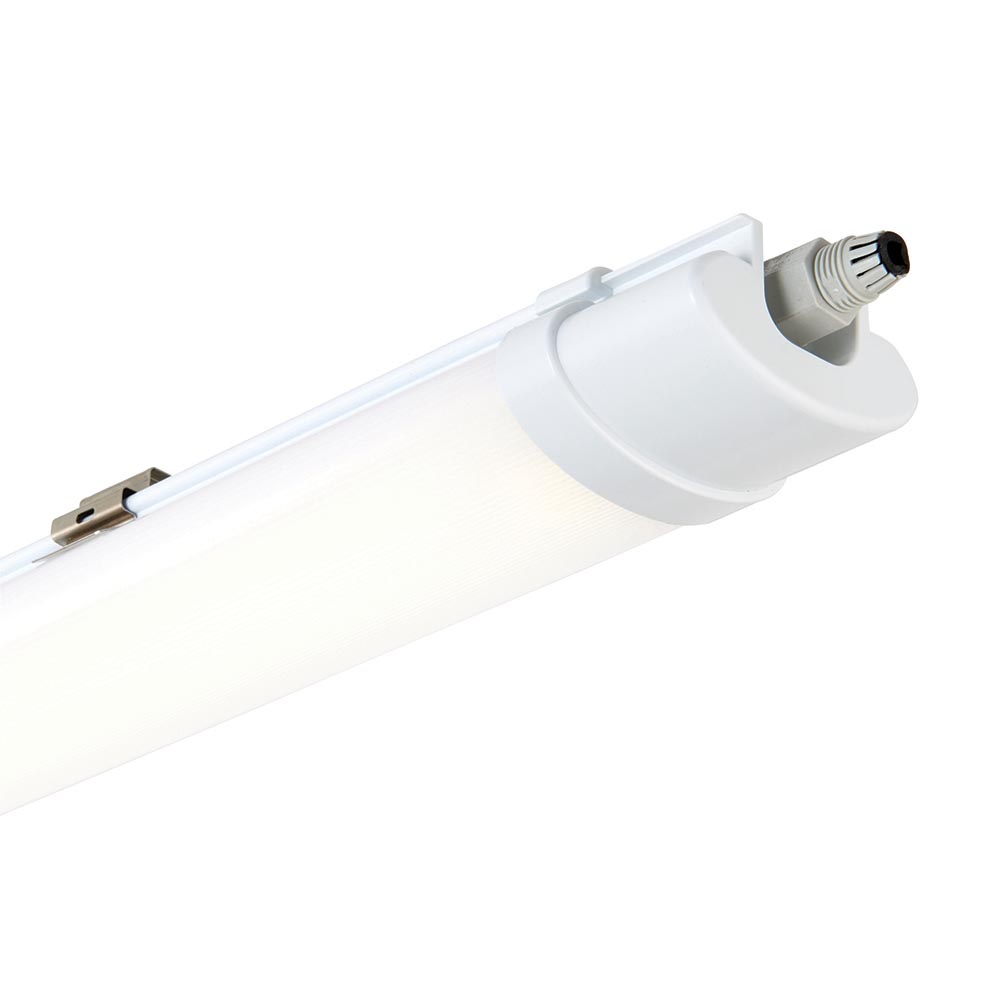

Reeve Connect 5ft IP65 45W daylight white

75533
Saxby
75533
UOS: Each
Hide
The Reeve Connect is a self contained, budget, LED batten. This anti-corrosive fitting is IP65 rated and benefits from the ability to be linked together. A maximum of 12 be linked together. This fitting is ideal where space for power feeds is limited.
  • Opal & gloss white pc
  • Constructed from polycarbonate
  • Shipment Carton Qty: 15

Overview

  • Complete with LED driver
  • 45W LED module (SMD 2835) Daylight White (Included)
  • K: 6500 Lm: 4000 Lm/W: 89
  • IP65
  • L: 1565mm Proj: 43mm W: 74mm
  • Class 2
  • Quick fix connector on both ends
  • Max. connect quantity 12 fittings
  • 2+1YR Extended Warranty
  • Weight: 0.7 Kg

Specification

Colour Finish:
Opal & gloss white pc
IP Rating:
65
Operating Voltage:
220-240V
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin: China


  • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    No Height
    Unpacked Width (mm):
    74
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588755333
    Packed Height (mm):
    4.8
    Packed Wid (mm):
    164
    Packed Depth (mm):
    8
    Packed Weight (kg):
    .91

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    15
    Outer Height (mm):
    27
    Outer Width (mm):
    166.2
    Outer Depth (mm):
    26.7
    Outer Gross Weight (kg):
    14.8
