Orion20 LED High Lumen 4000K 6W/M 5M

106536
Saxby
106536
UOS: Each
Hide

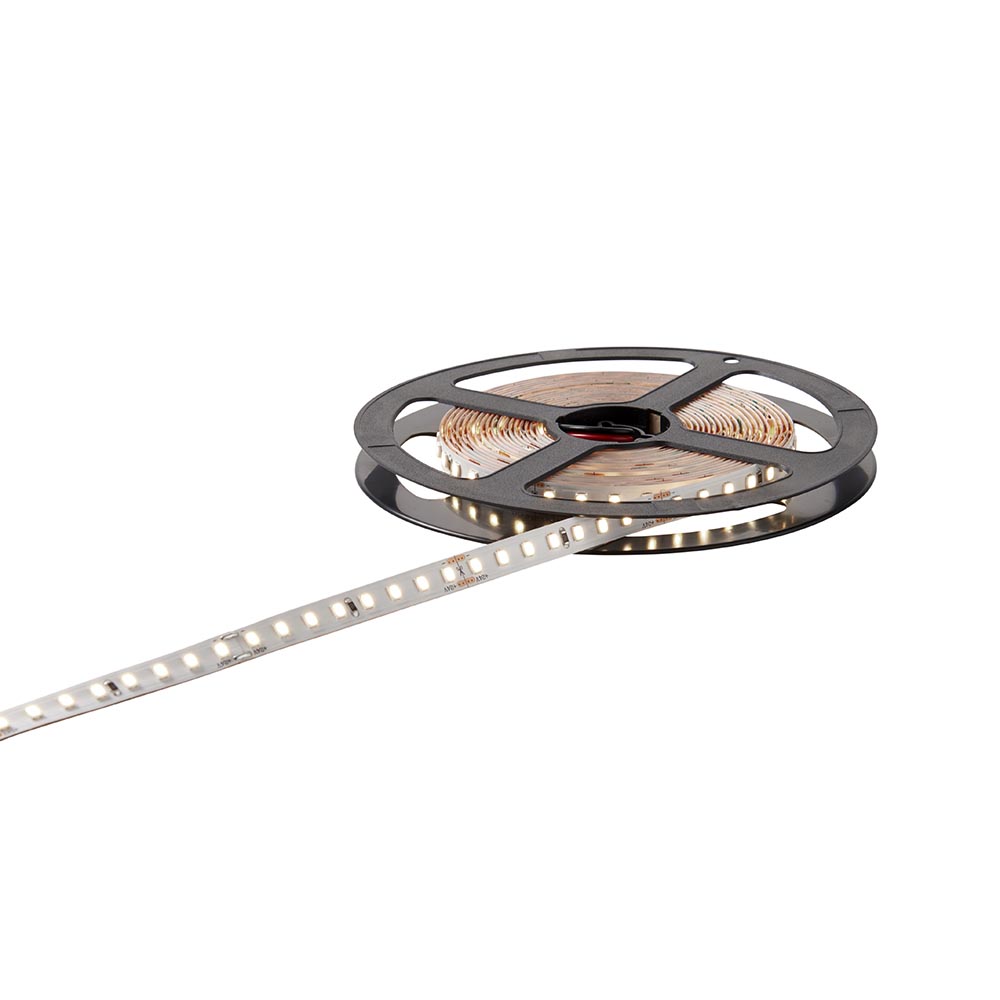

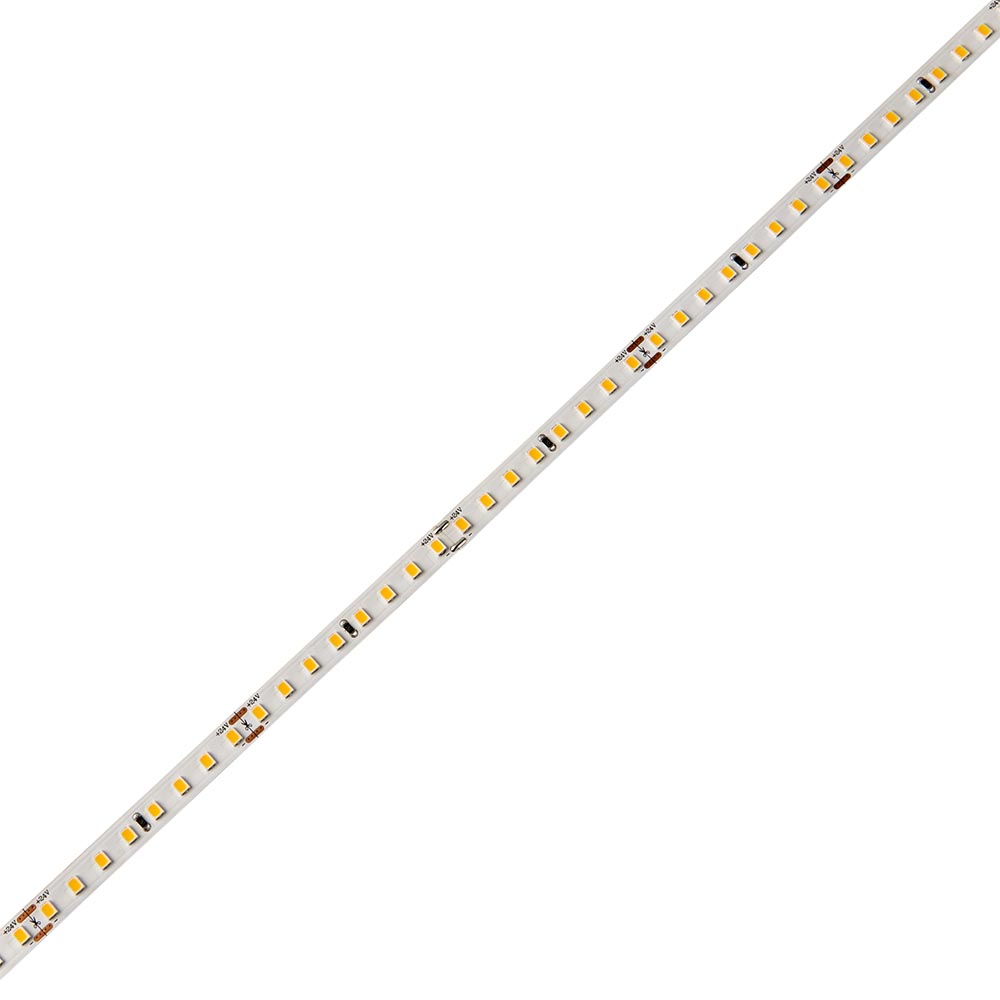

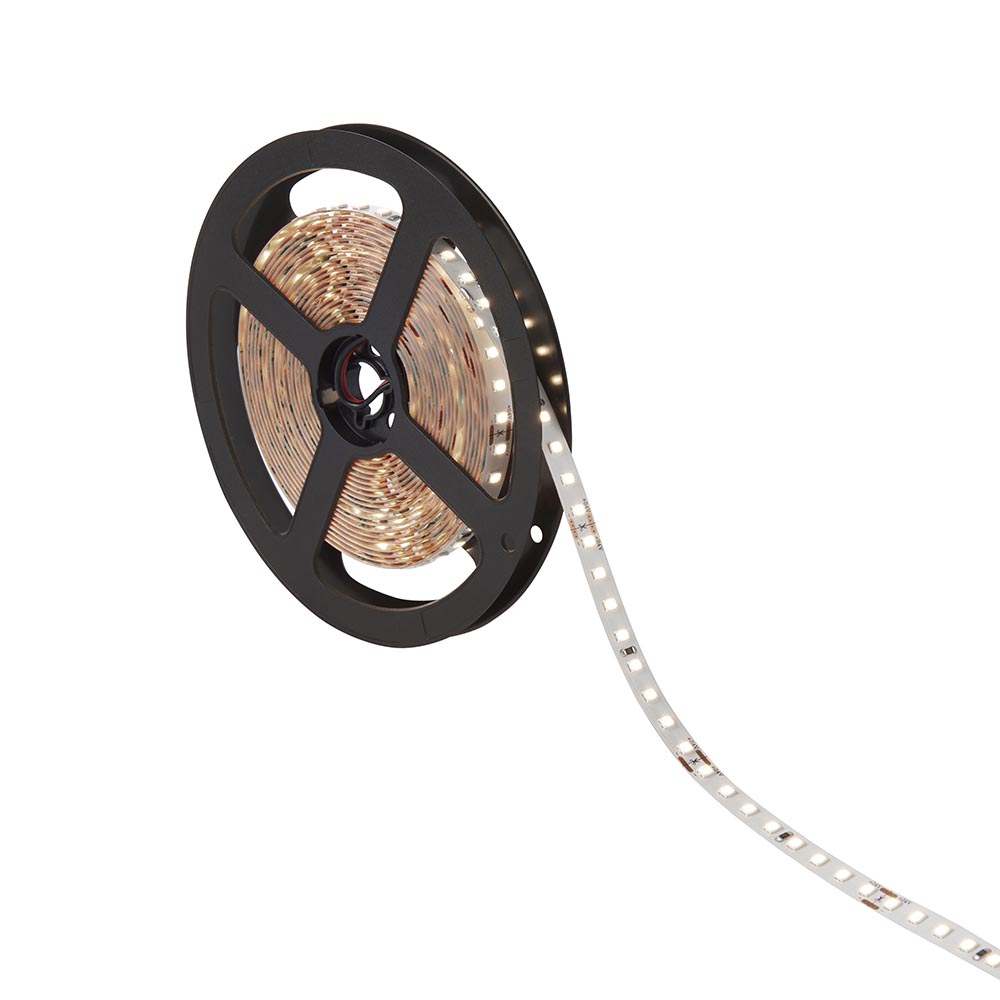

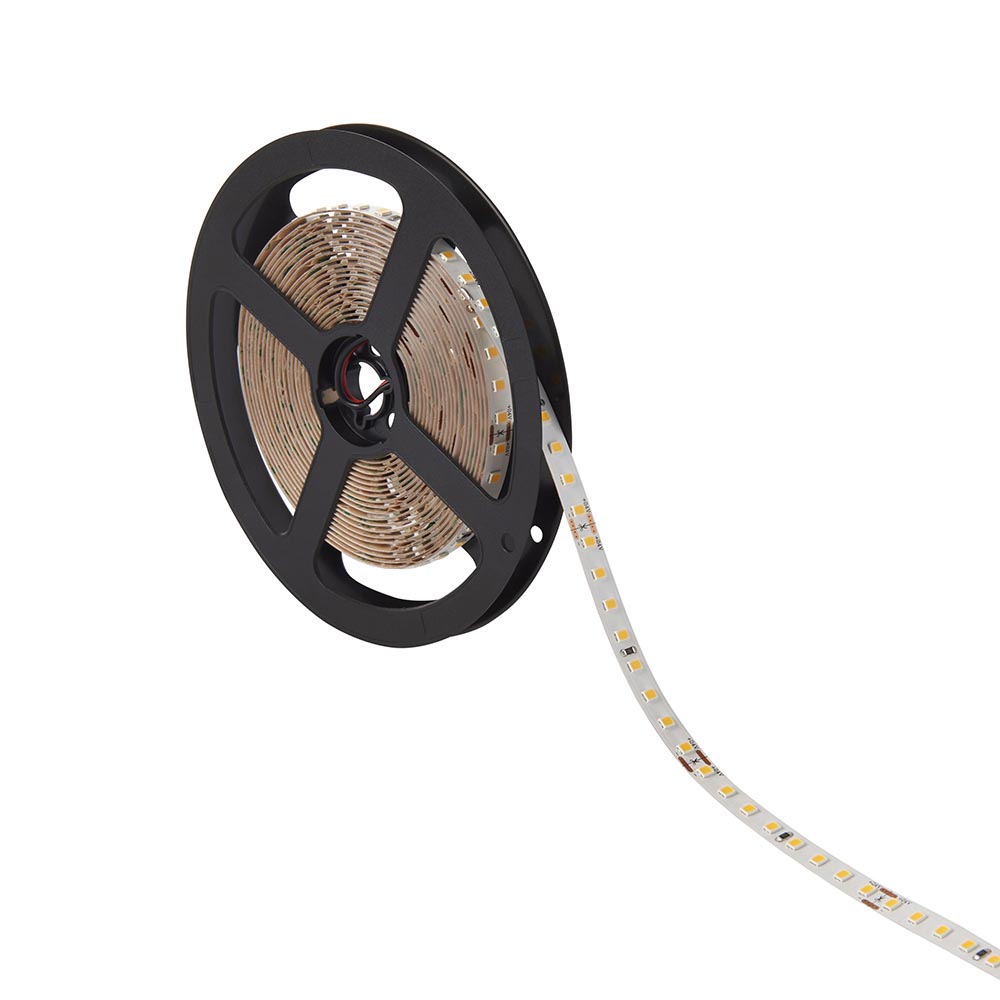

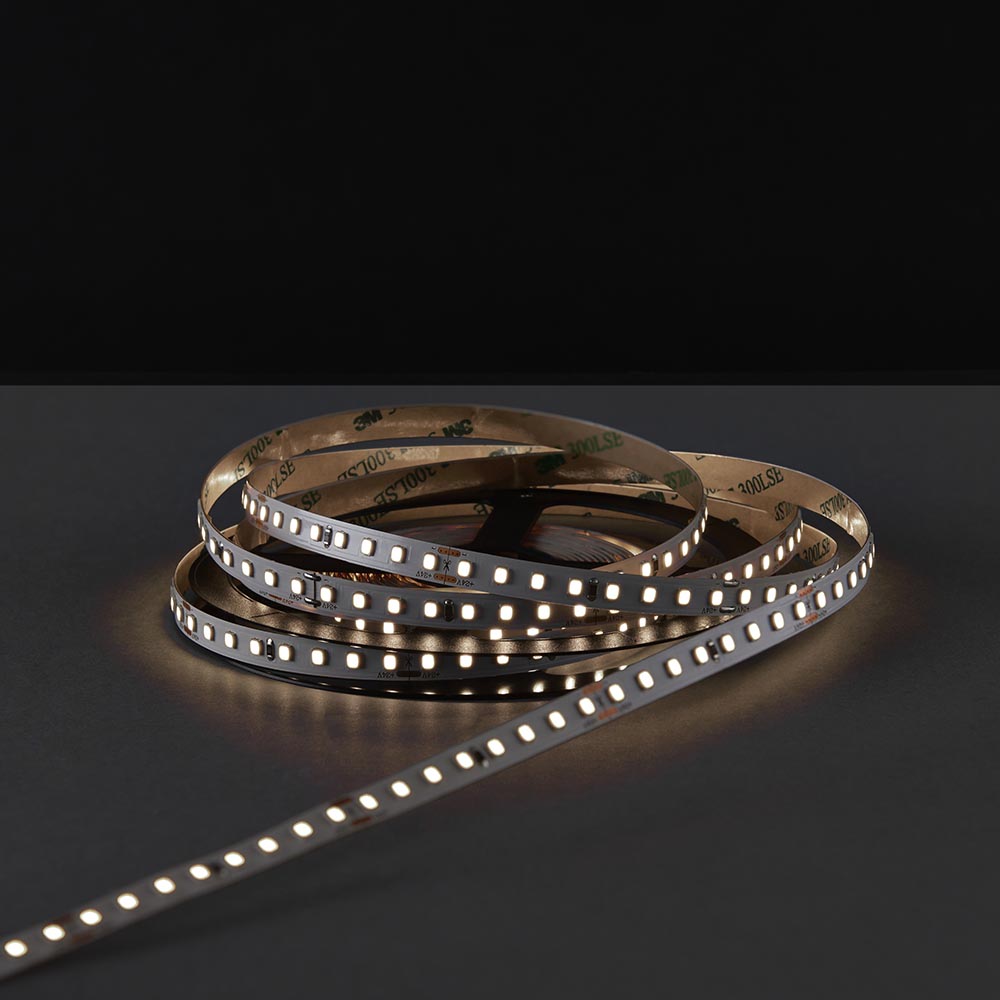

The Orion20 High Lumen LED is a IP20 rated, 24V LED flexible strip light, which is easy to install due to the 3M self-adhesive backing. The Orion20 High Lumen LED produces 6W of power per metre making this very energy efficient. Orion20 High Lumen LED is adaptable and flexible to suit your lighting requirements, you can cut the tape every 8 LEDs and reconnected as required. The Orion20 High Lumen is ideal for accent or mood lighting around your home or any commercial space. Supplied on a 5m reel. Accessories sold separately.
  • Dimmable
  • White plastic
  • Constructed from polymer film
  • Shipment Carton Qty: 100
Login To Buy

Overview

  • 30W LED tape module (SMD 2835) Cool White (Included)
  • K: 4000 Lm: 4500 Lm/W: 150
  • H: 2mm W: 8mm L: 5000mm
  • Class 3
  • Max. 5M length per run with one driver.
  • Max. 12M length per run with drivers at both ends.
  • 2+1YR Extended Warranty
  • Weight: 0.1 Kg

Specification

Colour Finish:
White polymer film
IP Rating:
20
Operating Voltage:
24V dc
Commodity Code:
9405423990
Country Of Origin:
China

Documents

Specification



  • Commodity Code: 9405423990
  • Country of Origin:


    • Technical Datasheet

    Photometric LDT File

    Dimensions

    Unpacked Height (mm):
    2
    Unpacked Width (mm):
    8
    Unpacked Depth (mm):
    No Depth

    Pack Quantities

    Package Pack Type:
    Retail carton
    Package EAN:
    5017588065364
    Packed Height (mm):
    1.7
    Packed Wid (mm):
    13.6
    Packed Depth (mm):
    13.6
    Packed Weight (kg):
    .12

    Case Quantities

    Outer Carton
    Outer Pack Type:
    Shipment carton
    Outer Qty:
    100
    Outer Height (mm):
    23
    Outer Width (mm):
    29
    Outer Depth (mm):
    70
    Outer Gross Weight (kg):
    12.3

    FAQs

    10 metres

    12 metres

    Calculate the wattage by the length needed and add 20% for safety measures.

    We advise using 1 sync controller (103024) per length of tape and connecting the controllers via RJ45 cable.
